RSP-500-15
72.35
Details

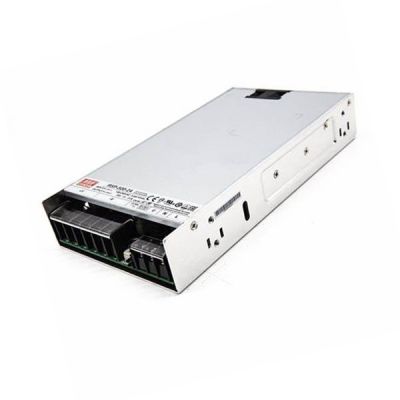

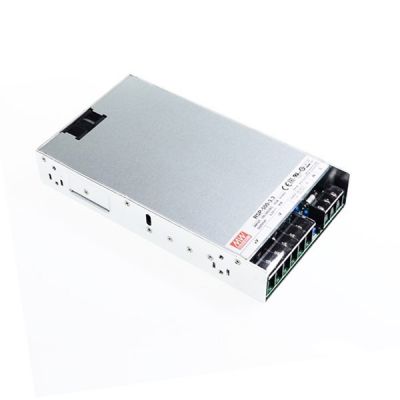

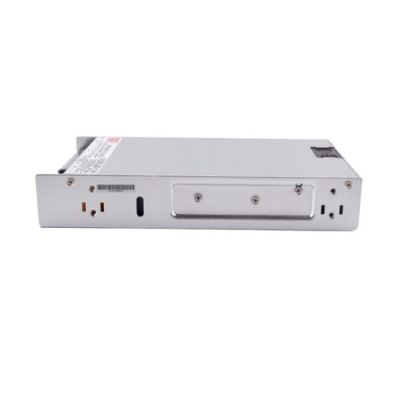

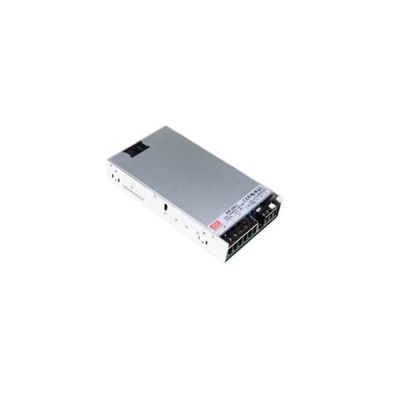

Meanwell RSP-500-15 is a 500W single output AC/DC power supply with 15V33.4A0-33.4A501W. It stands out with enclosed type and PFC Function. The model operates for 85-264VAC input voltage, and offers with the DC output demanded from the industry. Furthermore, it is cooled by the built-in fan with fan speed control, running for the temperature up to 70℃. Moreover, RSP-500-15 provides vast design flexibility by various built-in functions such as remote ON-OFF control, remote sense, DC OK signal, etc. Because of high efficiency, long longevity and high reliability, Meanwell RSP-500-15 is a high price-to-performance power supply solution for various areas.
Meanwell RSP-500-15 Encoding
| RSP | Series Name |
| 500 | Output Wattage |
| 15 | Output Voltage (3.3V/4V/5V/12V/15V/24V/27V/48V) |
Meanwell RSP-500-15 Specifications
| Model | RSP-500-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 33.4A | |
| CURRENT RANGE | 0-33.4A | |
| RATED POWER W | 501W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | |
| VOLTAGE ADJ. RANGE | 13.5-18V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.3% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 80ms/230VAC 3000ms, 80ms/115VAC at full load | |
| HOLD UP TIME | 18ms/230VAC 14ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 4.2A/115VAC 2.1 A/230VAC 5.3A/115VAC 2.65 A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.8-21.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL | POWER ON:open or 0~0.8VDC between RC+(Pin 4)&RC-(Pin3) on CN100 POWER OFF: 4~10VDC between RC+(Pin 4)&RC-(Pin3) on CN100 |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.3V | |
| FAN CONTROL (Typ.) | RTH2>=50℃±10℃ Fan on ; RTH2<=40℃±10℃ Fan off (Fan always on for 3.3~5V,Fan ON/OFF control for 12~48V) | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 , CCC GB4943.1 , BSMI CNS14336-1approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020,GB/T 9254, CNS13438 Class-B | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, criteria A, EAC TP TC 020 | |
| Others | MTBF | 187.7K hrs min. MIL-HDBK-217F (25℃ ) |
| DIMENSION | 230*127*40.5mm (L*W*H) | |
| PACKING | 1.3Kg; 9pcs/12.7Kg/0.7CUFT | |
Meanwell RSP-500-15 Features
l 3 years warranty
l Built-in active PFC function
l High efficiency up to 90.5%
l Universal AC input / Full range
l Forced air cooling by built-in DC fan
l Built-in remote ON-OFF control / remote sense / DC OK signal
l Protections: Short circuit / Overload / Over voltage/ Over temperature
Meanwell RSP-500-15 Applications
l RF application
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
Meanwell RSP-500-15 Mechanical Diagram
