RSP-500-3.3
70.13

RSP-500-3.3

$70.13

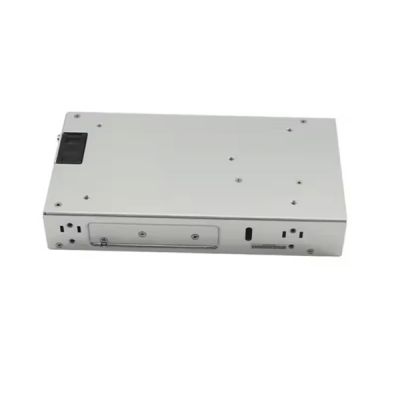

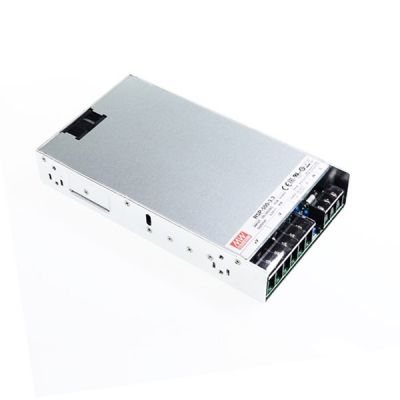

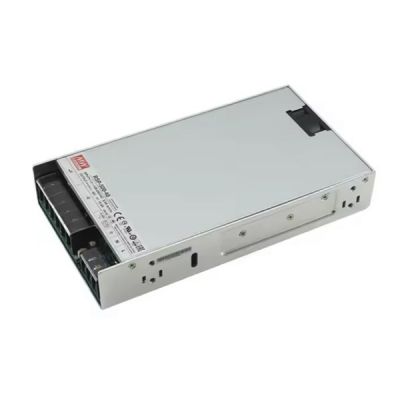

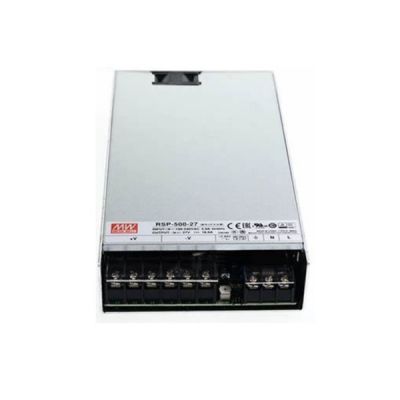

Meanwell 500W Single Output with PFC Function and 3.3V90A0-90A297W1202.8-3.6V±2%±0.5%±1%

- +
Availability:In stock
SKU Meanwell RSP-500-3.3
Brand Meanwell
Details

Meanwell RSP-500-3.3 is a 500W single output enclosed type AC/DC power supply with PFC Function and 3.3V90A0-90A297W. The model operates for 85- 264VACinput voltage and offers with the DC output mostly demanded from the industry. RSP-500-3.3 is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃.Moreover, it gives vast design flexibility by equipping various built-in functions such as remote ON-OFF control, remote sense, DC OK signal, etc. Thanks to the high efficiency, long longevity and high reliability, Meanwell RSP-500-3.3 is a high price-to-performance power supply solution for various cases.

Meanwell RSP-500-3.3 Specifications

Meanwell RSP-500-3.3 Specifications

Model RSP-500-3.3
Output DC VOLTAGE 3.3V
RATED CURRENT 90A
CURRENT RANGE 0-90A
RATED POWER W 297W
RIPPLE & NOISE (max.) mVp-p 120
VOLTAGE ADJ. RANGE 2.8-3.6V
VOLTAGE TOLERANCE ±2%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 1500ms, 80ms/230VAC 3000ms, 80ms/115VAC at full load
HOLD UP TIME  18ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  81.00%
AC CURRENT (Typ.) 4.2A/115VAC 2.1 A/230VAC 5.3A/115VAC 2.65 A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL POWER ON:open or 0~0.8VDC between RC+(Pin 4)&RC-(Pin3) on CN100 POWER OFF: 4~10VDC between RC+(Pin 4)&RC-(Pin3) on CN100
REMOTE SENSE Compensate voltage drop on the load wiring up to 0.3V
FAN CONTROL (Typ.) RTH2>=50±10 Fan on ; RTH2<=40±10 Fan off (Fan always on for 3.3~5V,Fan ON/OFF control for 12~48V)
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 , CCC GB4943.1 , BSMI CNS14336-1approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020,GB/T 9254, CNS13438 Class-B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, criteria A, EAC TP TC 020
Others MTBF 187.7K hrs min. MIL-HDBK-217F (25 )
DIMENSION 230*127*40.5mm (L*W*H)
PACKING 1.3Kg; 9pcs/12.7Kg/0.7CUFT

Meanwell RSP-500-3.3 Features

l  3 years warranty

l  Universal AC input / Full range

l  Built-in active PFC function

l  High efficiency up to 90.5%

l  Forced air cooling by built-in DC fan

l  Built-in remote ON-OFF control / remote sense / DC OK signal

l  Protections: Short circuit / Overload / Over voltage/ Over temperature

Meanwell RSP-500 Series Features

Meanwell RSP-500-3.3 Applications

l  Test and measurement instrument

l  Laser related machine

l  Burn-in facility

l  RF application

l  Factory control or automation apparatus

Meanwell RSP-500 Series Applications

Meanwell RSP-500-3.3 Mechanical Diagram

Meanwell RSP-500 Series Mechanical Diagram

Meanwell RSP-500 Series Mechanical Diagram
