VFD-200C-230
32.5
Details

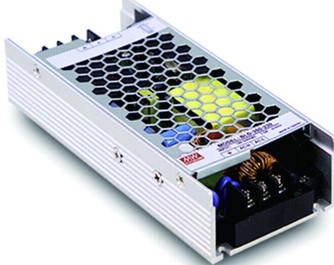

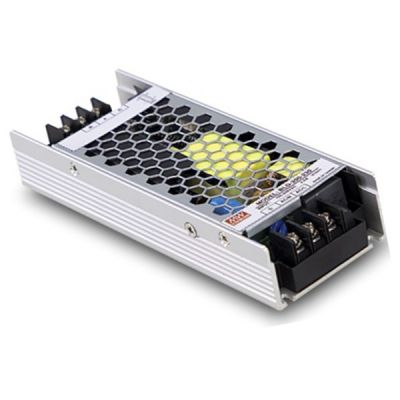

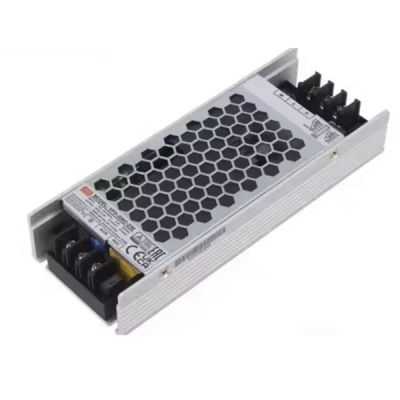

Meanwell VFD-200C-230 is an universal variable frequency drive power module. The product provides integrated power stage, gate drivers and basic VFD sensors such as three phase output current and temperature sensors. At the same time, it can be implemented for a three phase motor drive solution by coordinating with an external motor drive controller in logic level and analog I/O. In addition, the power stage input is single phase full range from 90VAC to 264VAC with PFC function. The 3-phase motor output is up to 240V with 200% peak current capability. Considering its longevity, low cost, and high reliability, Meanwell VFD-200C-230 is suitable for three-phase motor drive, such as BLDC, Induction motor, and SynRM applications.
Meanwell VFD-200C-230 Encoding
| VFD | |
| 200 | Wattage |
| C | Metcal Case Type |
| 230 | Nominal Output Voltage |
Meanwell VFD-200C-230 Specifications
| MODEL NO. | VFD-200C-230 | ||||
| OUTPUT | VOLTAGE RANGE (UVW) | 380Vmax, line-to-line voltage 0~268V adjustable with modulated PWM , suitable for 3PH 200-240V class motor | |||
| CURRENT | Rated | 0.8A | |||
| Peak | 1.6A for 5 seconds | ||||
| RATED POWER | 200W | ||||
| EFFICIENCY | 92.00% | ||||
| DC BUS VOLTAGE | 380±5VDC | ||||
| PMW FREQUENCY | 2.5 KHz ~ 15 KHz | ||||
| INPUT | RATED INPUT VOLTAGE | 90 ~ 264VAC | |||
| INPUT FREQUENCY RANGE (Hz) | 47 ~ 63Hz | ||||
| POWER FACTOR (Typ.) | PF>0.99/115VAC, PF>0.93/230VAC at full load | ||||
| RATED INPUT CURRENT | 3.5A /115VAC 2A/230VAC | ||||
| INRUSH CURRENT | Cold start 50A /230VAC | ||||
| LEAKAGE CURRENT | <2mA/240VAC | ||||
| CONTROL/FUNCTION | 3-PHASE PWM CONTROL | PWM control signal to gate driver for IGBTs. (CN93, PIN8~13 ) 3.3V TTL/CMOS input: High(>2.7V): IGBT ON ; Low(<0.4V): IGBT OFF |
|||
| 3-PHASE CURRENT SENSOR | Built-in 100mΩ low-side shunt resistors on UVW phase (CN93, PIN4~6) | ||||
| DC BUS VOLTAGE SENSOR | DC BUS voltage sensor output (CN93, PIN1) 2.5V at DC BUS 380V |
||||
| THERMAL SENSOR | Built-in 10KΩ NTC for sensing IGBTs operating temperature. (TSM2A103F34D1R (Thinking Electronic), PIN3 of CN93) | ||||
| FAULT SIGNAL | Inverter fault signal(Short circuit/OCP, CN93, PIN7). 3.3V TTL/CMOS output: Normal: High(>3V); Abnormal: Low(<0.5V) |
||||
| AUXILIARY POWER | Non-isolated 15V output power for external control board (CN93,PIN 14 to PIN2) 15V at 0.1A;Tolerance +/- 0.5V, Ripple 1Vp-p max |
||||
| PROTECTION | SHORT CIRCUIT | Protection type : Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to “Dreating Curve”) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP.,HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | CB IEC61800-5-1,TUV/BS EN/EN61800-5-1,EAC TP TC004 approved | |||
| WITHSTAND VOLTAGE | I/P-FG:2KVAC | ||||
| ISOLATION RESISTANCE | I/P-FG:100M Ohms/500VDC/25℃/ 70%RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN IEC61800-3 | Class A, C2 | |||
| Radiated | BS EN/EN IEC61800-3 | Class A, C2 | |||
| Harmonic Current | BS EN/EN IEC61000-3-2 | Class A | |||
| Voltage Flicker | BS EN/EN61000-3-3 | --- | |||
| EMC IMMUNITY | BS EN/EN IEC61800-3, second environment | ||||
| Parameter | Standard | Test Level | |||
| ESD | BSEN/EN61000-4-2 | Level3,8KV air;Level2,4KV contact | |||
| Radiated | BS EN/EN IEC61000-4-3 | Level 3 | |||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3 | |||
| Surge | BS EN/EN61000-4-5 | Level3,2KV/Line-Earth;Level 3,1KV/Line-Line | |||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||
| Voltage Dips and Interruptions | BS EN/ENIEC61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||
| Voltage deviation | IEC 61000-2-4 Class 2 | ±10% Un | |||
| Total Harmonic distortion (THD) Individual Harmonic orders |
IEC 61000-2-4 Class 3 IEC 61000-4-13 Class 3 | THD 12 % | |||
| Frequency variations | IEC 61000-2-4 | ±4% | |||
| Frequency rate of change | IEC 61000-2-4 | 2%/s | |||
| OTHERS | MTBF | 2568.7K hrs min.T elcordia SR-332 (Bellcore) ; 203.8K hrs min.M IL-HDBK-217F (25℃) | |||
| DIMENSION (L*W*H) | 146*55*26mm | ||||
| PACKING | 0.31Kg;40pcs/13.3kg/0.87CUFT | ||||
Meanwell VFD-200C-230 Features
l 90~264Vac input, built-in PFC boost to 380VDC
l Power stage, 3-phase switches with sensors in one unit for external control (control board VFD-CB sold sperately)
l High peak current up to 200% and 5 seconds
l Fanless design for silent operation and long lifetime
l Protections: Short circuit / OCP
l Internal sensors feed out for control: Current sensor - motor torque control, DC bus voltage sensor - OVP/UVP, Temperature sensor - OTP
l -30~+70℃ wide operating temperature
l Suitable for 3-phase motor drive (e.g. BLDC, Induction motor, SynRM)
l 3 years warranty
Meanwell VFD-200C-230 Applications
l HVAC
l Fan
l Conveyor
l Power tools
l Automatic door
l Water/Air pump
l Fitness equipment

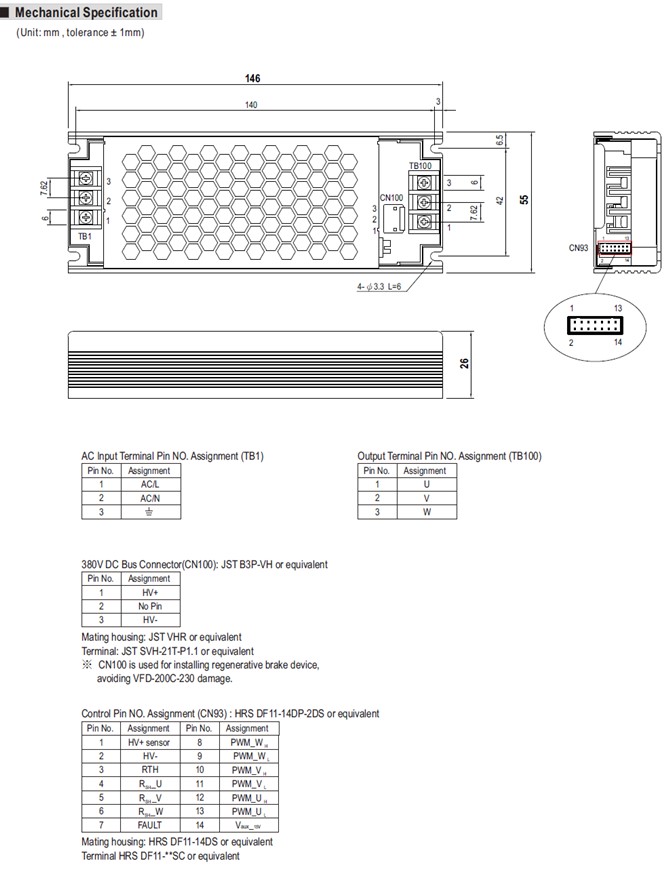

Meanwell VFD-200C-230 Mechanical Diagram
