RSP-320-4
36.74

RSP-320-4

$36.74

Meanwell 320W Single Output with PFC Function and 4V60A0-60A240W1003.7-4.3V±2%±0.5%±1%

- +
Availability:In stock
SKU Meanwell RSP-320-4
Brand Meanwell
Details

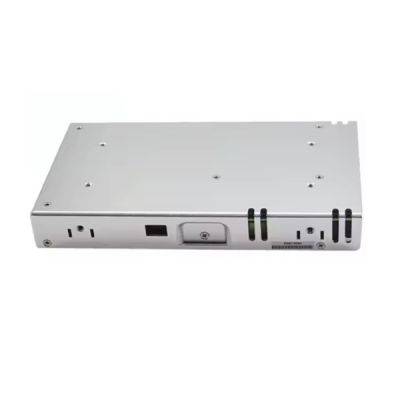

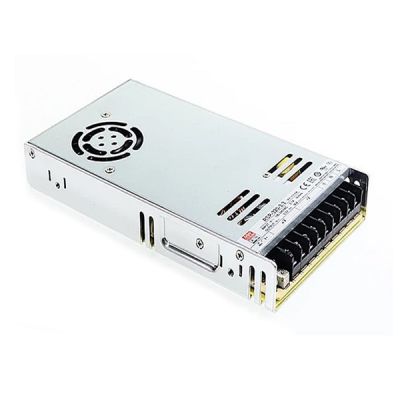

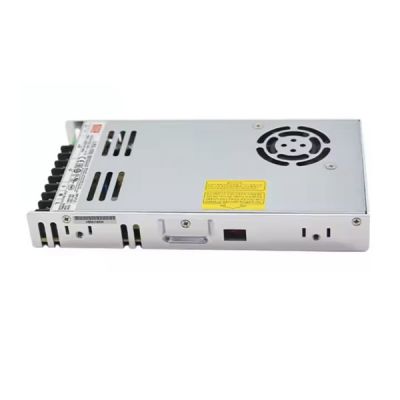

Meanwell RSP-320-4 is a 320W single output enclosed type AC/DC power supply with PFC functions and 4V60A0-60A240W. This unit runs for 88-264VAC input voltage and offers with the DC output mostly required from the industry. RSP-320-4 is cooled by the built-in fan with fan speed control and could operates for the temperature up to 70℃. In light of the high efficiency, long longevity and high reliability, Meanwell RSP-320-4 is a high price-to-performance power supply solution for various areas.

Meanwell RSP-320-4 Specifications

Meanwell RSP-320-4 Specifications

Model RSP-320-4
Output DC VOLTAGE 4V
RATED CURRENT 60A
CURRENT RANGE 0-60A
RATED POWER W 240W
RIPPLE & NOISE (max.) mVp-p 100
VOLTAGE ADJ. RANGE 3.7-4.3V
VOLTAGE TOLERANCE ±2%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME  8ms at full load 230VAC /115VAC
Input VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  81.00%
AC CURRENT (Typ.) 2.7A/115VAC 1.5 A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 4.5-5.3V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1, AS/NZS 60950.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 206.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.9Kg; 15pcs/14.5Kg/0.67CUFT

Meanwell RSP-320-4 Features

l  Universal AC input/Full range

l  Built-in active PFC function

l  High efficiency up to 90%

l  Optional conformal coating

l  LED indicator for power on

l  3 years warranty

l  Forced air cooling by built-in DC Fan with fan speed control function

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell RSP-320 Series Certificate

Meanwell RSP-320-4 Applications

l  Burn-in facility

l  RF application

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

Meanwell RSP-320 Series Applications

Meanwell RSP-320-4 Mechanical Diagram

Meanwell RSP-320 Series mechanical diagram
