RKP-CMU1 System
326.48
Details
Meanwell RKP-CMU1 Series is a fully digitalized control/monitor unit for the RKP-1U power system. Equipped with USB, RS-232, and ethernet interface, the unit could be connected locally to PC to execute the control and monitoring tasks. With built-in 4 configurable relay contacts, the users can flexibility monitor specific events or alarms and react suitable action accordingly.
Meanwell RKP-CMU1 Series Encoding
| Single Unit | |
| RKP-CMU1 | Model Name |
| Rack | |
| RKP | Series Name |
| 1U | Profile of the system |
| I | I: AC Inlet ( IEC 320-C20) |
| T: Termianl block | |
| CMU1 | CUM1: With RKP-CMU1 |
| - : Without RKP-CUM1 | |
Meanwell RKP-CMU1 Series Model Specifications
| Model | RKP-CMU1 | RKP-1U-CMU1 | |
| Output | DIGITAL METER | Display the DC output voltage, current, and internal temperature | |
| CONTROL OUTPUT | PMBus signal | ||
| LED INDICATOR | Green: Power on Red:Alarm | ||
| RELAY CONTACT | 4 user programmable relay, relay contact rating(max.): 30V/1A resistive | ||
| Input | VOLTAGE RANGE | 12 ~ 15VDC | |
| CURRENT | 1A/12VDC 0.8A/15VDC | ||
| MONITORING INPUTS | PMBus signal | ||
| FUNCTION | DISPLAY | LCD 16x2 Alphanumeric Matrix Display / PC Web Page Display | |
| MONITOR | Output Voltage / Load Current / Temperature / Input Voltage | ||
| CONTROL | Output Voltage, Current Limit, ON/OFF | ||
| COMM. INTERFACE | USB, RS-232, Ethernet | ||
| MODEL SUPPORTED | RCP-1600, RCP-2000, DRP-3200 | RCP-2000 | |
| ENVIRONMENT | WORKING TEMP | -25 ~ +70℃ | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | EAC TP TC 004 approved, design refer to TUV BS EN/EN62368-1 | UL62368-1, CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | O/P-FG:0.7KVDC | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |
| ISOLATION RESISTANCE | O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | I/P-O/P, I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-1(BS EN/EN50082-2), light industry level, EAC TP TC 020 | ||
| OTHERS | MTBF | 671.5K hrs min. Telcordia SR-332 (Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 147.5*127*41mm (L*W*H) | 350.8*483.6*44mm (L*W*H) | |
| PACKING | 0.8Kg; 16pcs/13.8Kg/0.79CUFT | 4.4Kg; 3pcs/14.2Kg/2.67CUFT | |
Meanwell RKP-CMU1 Series Features
l 1U low profile/19-inch rack mountable
l Front panel LCD and buttons for on-site service without PC
l USB-, RS-232 or Ethernet interface for PC connection locallyor remote monitoring and control via GSM modem
l Alarm/event log with time and date
l Windows-based PC communication software
l Easy wire connections on rear side
l 4 user programmable relay outputs for traditional remotemonitoring or warning
l 5 years warranty
Meanwell RKP-CMU1 Series Features
l Industrial automation
l Distributed power architecture system
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system

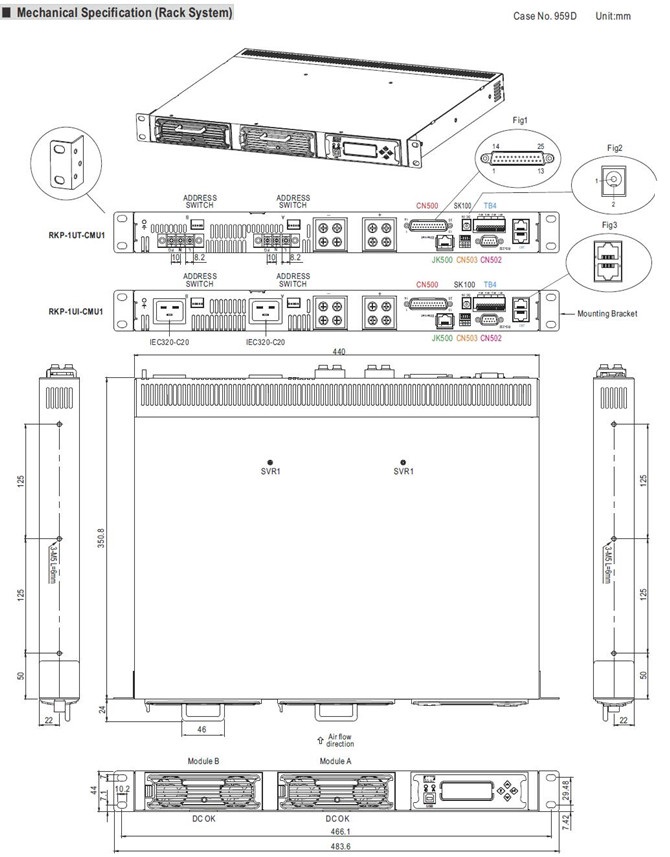

Meanwell RKP-CMU1 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
