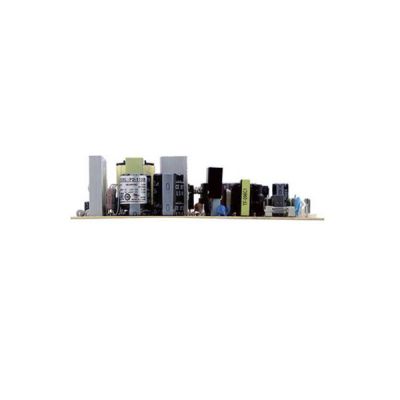

PD-110
22.47
Details

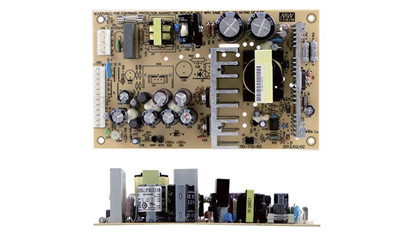

Meanwell PD-110 Series is 110W Dual Output Switching Power Supply. The entire series outstands with Universal AC input/Full range and Fixed switching frequency at 45KHz. Apart from them, the working efficiency goes up to 78% and operate from -10 ℃through 50 ℃ under free air convection. Additionally, PD-110 provides the various protections types such as Short circuit, Overload and Over voltage. As the series has power good signal output and 100% full load burn-in test, this allows to meet the international safety regulations such as UL60950-1, EAC TP TC 004. Considering its low cost, high efficiency and high reliability, Meanwell PD-110 serves as a high price-to-performance power supply solution for various industrial applications in harsh working environment.
Meanwell PD-110 Series Model Specifications
| Model | PD-110A | PD-110B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 5V | 24V | |
| RATED CURRENT | 5A | 6.5A | 5A | 3.5A | |
| CURRENT RANGE | 0.5-5A | 0.5-6.5A | 0.5-5A | 0.5-3.5A | |
| RATED POWER | 103W | 109W | |||
| RIPPLE & NOISE (max.) | 100mVp-p | 150mVp-p | 100mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | CH1:4.75 ~ 5.5V | |||
| VOLTAGE TOL ERANCE | ±2.0% | ±6.0% | ±2.0% | ±6.0% | |
| LINE REGULATION | ±1.0% | ±2.0% | ±1.0% | ±2.0% | |
| LOAD REGUL .ATION | ±1.0% | ±5.0% | ±1.0% | ±5.0% | |
| SETUP, RISE TIME | 1200ms, 50ms at full load | ||||
| HOLD UP TIME (Typ.) | 80ms at full load | ||||
| INPUT | VOLTAGE RANGE | 100 ~ 264VAC 141 ~370VDC (90 ~ 100VAC 90% load max.) [DC input operation possible by connecting AC/N(-), AC/L(+)] | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 75.00% | 78.00% | |||
| AC CURRENT (Typ.) | 3A/115VAC 1.5A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 45A | ||||
| LEAKAGE CURRENT | <1mA /240VAC | ||||
| PROTECTION | OVERL OAD | 105% ~ 135% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1: 5.75 ~ 6.75VDC | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +50℃,60℃with cooling fan (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) on +5V output | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020 | ||||
| OTHERS | MTBF | 323K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 177.8*107.95*46.5mm (L*W*H) | ||||
| PACKING | 0.51Kg; 24pcs/13.1Kg/1.19CUFT | ||||
Meanwell PD-110 Series Features
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l With power good signal output (Optional)
l 100% full load burn-in test
l Fixed switching frequency at 45KHz
l 2 years warranty

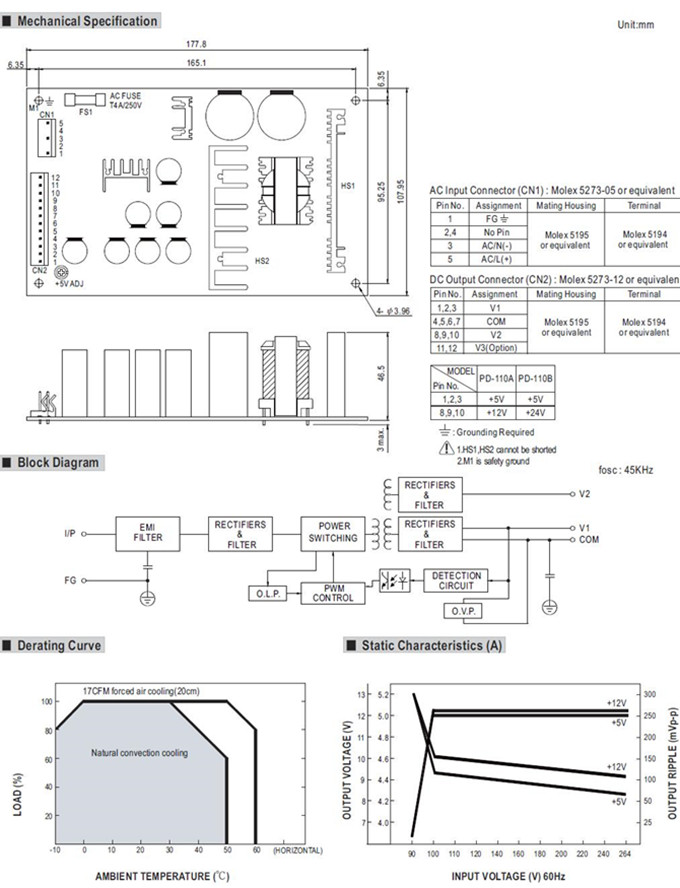

Meanwell PD-110 Series Mechanical Diagram
