LRS-35
9.91

LRS-35

As low as $9.91

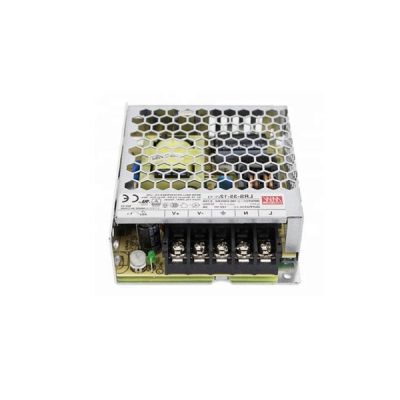

Meanwell 35W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell LRS-35
Brand Meanwell
Details

Meanwell LRS-35 Series is a 35W single-output enclosed type power supply. The entire series offers an output voltage line of 5V, 12V, 15V, 24V,36V and 48V by adopting the full range 85~264V AC input. The design of metallic mesh case enhances their heat dissipation, so they operate from -30C through 70C under air convection without a fan. Delivering an extremely low no load power consumption, it allows the end system to easily meet the worldwide energy requirement. Therefore, Meanwell L RS-35 series function as a high price-to-performance power supply solution for various industrial applications.

LRS-35 Meanwell LRS-35 Series Price and specifications ycict

Meanwell LRS-35 Series Model Specifications

Model   LRS-35-5 LRS-35-12 LRS-35-15 LRS-35-24 LRS-35-36 LRS-35-48
Output DC VOLTAGE (V) 5V 12V 15V 24V 36V 48V
RATED CURRENT 7A 3A 2.4A 1.5A 1A 0.8A
CURRENT RANGE 0-7A 0-3A 0-2.4A 0-1.5A 0-1A 0-0.8A
RATED POWER 35W 36W 36W 36W 36W 38.4W
RIPPLE & NOISE 80(max.) mVp-p 120(max.) mVp-p 120(max.) mVp-p 150(max.) mVp-p 200(max.) mVp-p 200(max.) mVp-p
VOLTAGE ADJ. RANGE 4.5 ~ 5.5V 10.2 ~ 13.8V 13.5 ~ 18V 21.6 ~ 28.8V 32.4 ~ 39.6V 43.2 ~ 52.8V
VOLTAGE TOLERANCE ±2% ±1% ±1% ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  82% 86% 86% 88% 88% 89%
AC CURRENT (Typ.) 0.7A/115VAC 0.42A/230VAC
INRUSH CURRENT (Typ. ) COLD START 45A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 ~ 6.9V 13.8 ~ 16.2V 18.75 ~ 21.75V 28.8 ~ 33.6V 41.4 ~ 48.6V 55.2 ~ 64.8V
 Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004,
AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,
KC KN32,KN35(for LRS-35-12/24 only)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020,
KC KN32,KN35(for LRS-35-12/24 only)
Others MTBF 763.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 99*82*30mm (L*W*H)
PACKING 0.23Kg ; 60pcs/14.8Kg/0.88CUFT

Meanwell LRS-35 Series Features

l  Universal AC input/ Full range ;

l  Withstand 300VAC surge input for 5 second

l  No load power consumption<0. 2W

l  Miniature size and 1U low profile

l  High operating temperature up to 70C

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances

l  Operating altitude up to 5000 meters

l  Withstand 5G vibration test

l  High efficiency, long life and high reliability

l  LED indicator for power on

l  Over voltage category III

l  1 00% full load burn-in test

l  3 years warranty

LRS-35 Meanwell LRS-35 Series Price and specifications ycict

Meanwell LRS-35 Series Applications

l  Industrial automation machinery

l  Industrial control system

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Household appliances

Meanwell LRS-35 Series Applications

Meanwell LRS-35 Mechanical Diagram

Meanwell LRS-35 Series ApplicationsMeanwell LRS-35 Series Applications
