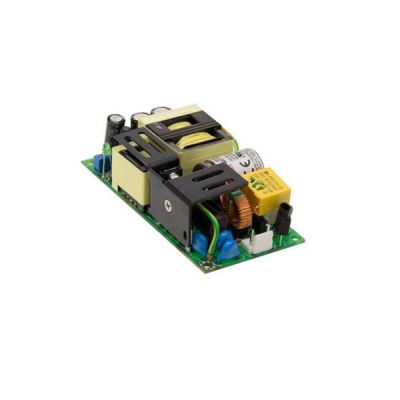

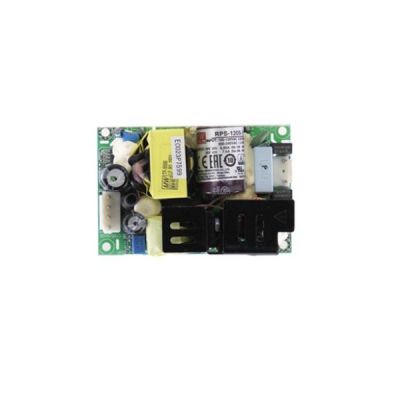

Meanwell RPS-120S Series is a 120W highly reliable green PCB type medical power supply. The entire series is designed with high power density on 3" by 2" footprint. At the same time, it also accepts 80~264VAC input and offers various models with the output voltages between 12V and 48V. Additionally, RPS-120S series features high working efficiency up to 94%, extremely low no load power consumption down below 0.3W and operating altitude up to 4000 meters. Based on them, the series is able to be applied fоr both ClassⅠ(with FG) or Class Ⅱ (no FG) system design. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 150 uA, RPS-120S conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, the series provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-120S Series is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-120S Series Encoding
| RPS | Series Name |
| 120S | Rated Wattage |
| 12 | Output Voltage |
Meanwell RPS-120S Series Model Specifications
| Model | RPS-120S-12 | RPS-120S-15 | RPS-120S-24 | RPS-120S-27 | RPS-120S-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 27V | 48V | |
| CURRENT | Peak(10sec) | 11.8A | 9.5A | 6.25A | 5.55A | 3.12A | |
| Convection | 9.5A | 7.6A | 5A | 4.44A | 2.5A | ||
| RATED POWER | Peak(10sec) | 141.6W | 142.5W | 150W | 149.8W | 150W | |
| Convection | 114W | 114W | 120W | 119.9W | 120W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 25.6-28.4V | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 15ms/230VAC 15ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||||||
| EFFICIENCY (Typ.) | 91.00% | 92.00% | 93.00% | 94.00% | 93.50% | ||
| AC CURRENT (Typ.) | 2.3A/115VAC 1.1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||||||
| LEAKAGE CURRENT max | Earth leakage current < 150 A/264VAC , touch current < 80 A/264VAC | ||||||
| PROTECTION | OVERL OAD | 130~160% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.2-15.6V | 16.5-19.5V | 26.4-31.2V | 29.7-35V | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP. | -40 ~ +85℃ | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axe | ||||||
| OPERATING ALTITUDE | 4000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) | |||||
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||
| Radiated emission | BS EN/EN55011 (CISPR11) | ClassⅠ: Class B , Class Ⅱ: Class A | |||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 95% dip 1 periods, 30% dip 25 periods, 95% interruptions 250 periods |
|||||
| OTHERS | MTBF | 4050.3K hrs min. Telcordia SR-332 (Bellcore) ; 468.0K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 76.2*50.8*28mm or 3" * 2" *1.1" inch | ||||||
| PACKING | 0.13Kg; 100pcs/14Kg/1.13CUFT | ||||||
Meanwell RPS-120S Series Features
l 3"x2" compact size
l 120W convention, 150W peak (10sec.)
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l EMI for both ClassⅠ& ClassⅡconfiguration
l -30~+85℃ wide range operating temperature
l No load power consumption<0.3W
l Extremely low leakage current
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 4000 meters
l 3 years warranty
Meanwell RPS-120S Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine

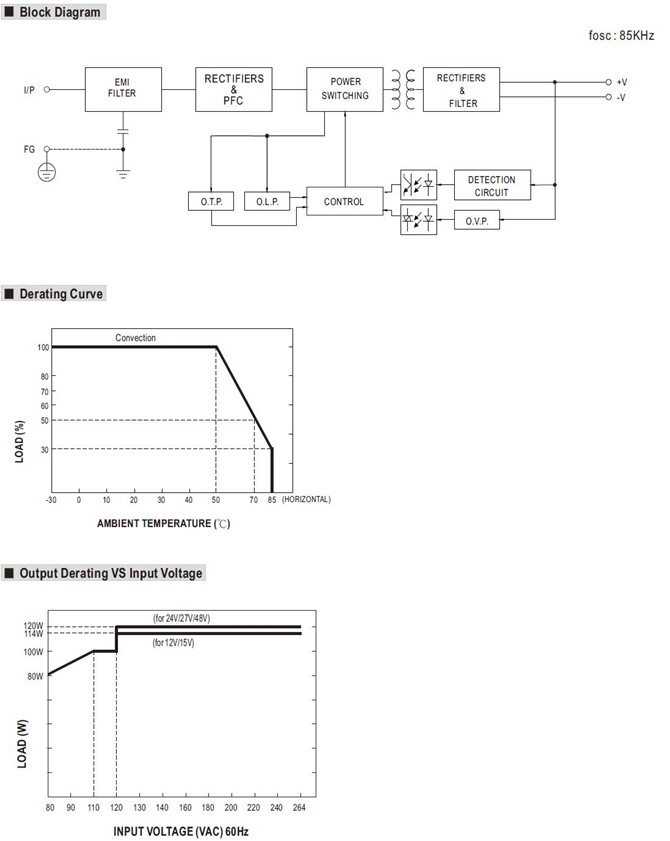

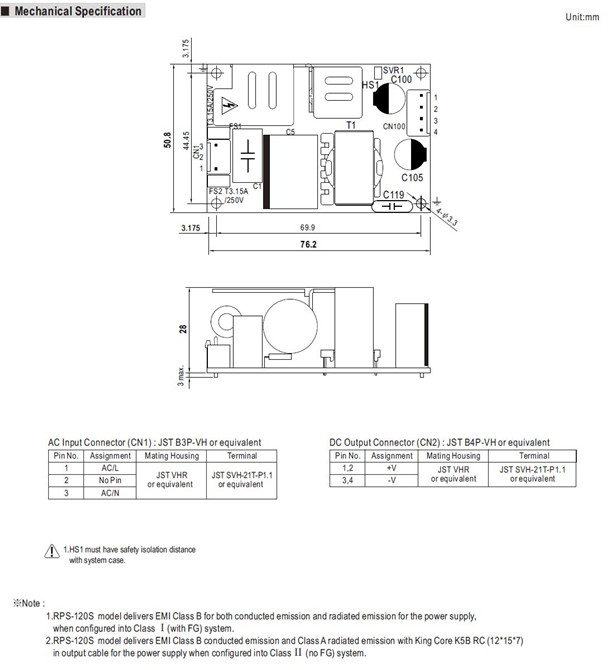

Meanwell RPS-120S Series Mechanical Diagram
