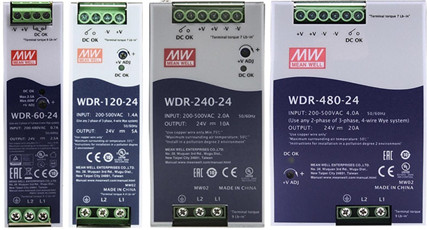

WDR-120
35.02
Details
Meanwell WDR-120 Series is 120W Single Output Industrial DIN RAIL Power Supply. The entire series adapt to be installed on TS-35/7.5 or 15 mounting rails. Since the body is 40 mm in width, the design could save a lot of space inside the cabinet. WDR-120 Series adopts single and two phase wide input range 180~550VAC, and conforms to BS EN/EN6 1000-3-2, the norm the European Union regulates for harmonic current. The product is designed with metal housing that enhances the power dissipation. With the high working efficiency and Built-in DC OK relay contact, WDR-120 Series could operate at the ambient temperature between -25℃ and 70℃ under air convection. Moreover, they provide various protections such as Short circuit/Overload/Over voltage/Over temperature. The complete protection functions and relevant certificates for industrial control apparatus (UL508, EAC TP TC 004 approved, IEC62368-1 CB) allow WDR-120 series a very competitive power supply solution for industrial applications.
Meanwell WDR-120 Series Model Specifications
| Model | WDR-120-12 | WDR-120-24 | WDR-120-48 | |
| Output | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | |
| CURRENT RANGE | 0-10A | 0-5A | 0-2.5A | |
| RATED POWER | 120W | 120W | 120W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 12-15V | 24-29V | 48-58V | |
| VOLTAGE TOLERANCE | ±1.5% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 2000ms, 70ms, 50ms/400VAC 2000ms, 70ms, 10ms/230VAC at full load | |||
| Input | VOLTAGE RANGE | 180 ~ 550VAC 254 ~ 780VDC | ||
| FREQUENCY RANGE | 47 - 63Hz | |||
| EFFICIENCY (Typ.) | 89.5%/400Vac | 91%/400Vac | 92%/400Vac | |
| AC CURRENT (Typ.) | 0.7A/400VAC 1.2A/230VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 50A | |||
| LEAKAGE CURRENT | <3.5mA / 530VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 16 ~ 18V | 31 ~ 37V | 60 ~ 67V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.) : 30V / 1A resistive | ||

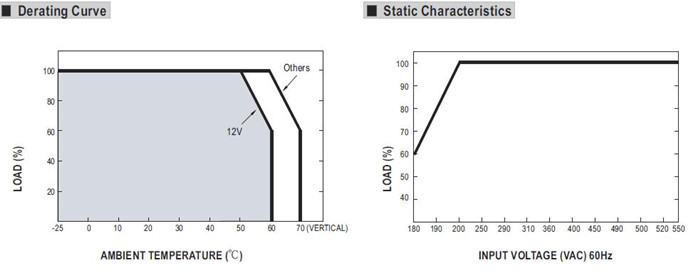

| ENVIRONMENT | WORKING TEMP | -25 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||
| VIBRATION | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | |||
| SAFETY &EMC | SAFETY STANDARDS | UL508, EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ;Design refer to BS EN/EN62368-1, AS/NZS 62368.1 (meet BS EN/EN60204-1) |
||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC IMMUNITY | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61204-3, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |||
| Others | MTBF | 268K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 40*125.2*113.5mm (W*H*D) | |||
| PACKING | 0.65Kg; 20pcs/14Kg/1.16CUFT | |||
Meanwell WDR-120 Series Features
l Single and two phase wide input range 180~550VAC
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Built-in constant current limiting circuit
l Can be installed on DIN rail TS-35/7.5 or 15
l UL508 (industrial control equipment) approved
l BS EN/EN61 000-6-2(BS EN/EN50082-2) industrial immunity level
l 100% full load burn-in test
l Built-in DC OK relay contact
l 3 years warranty

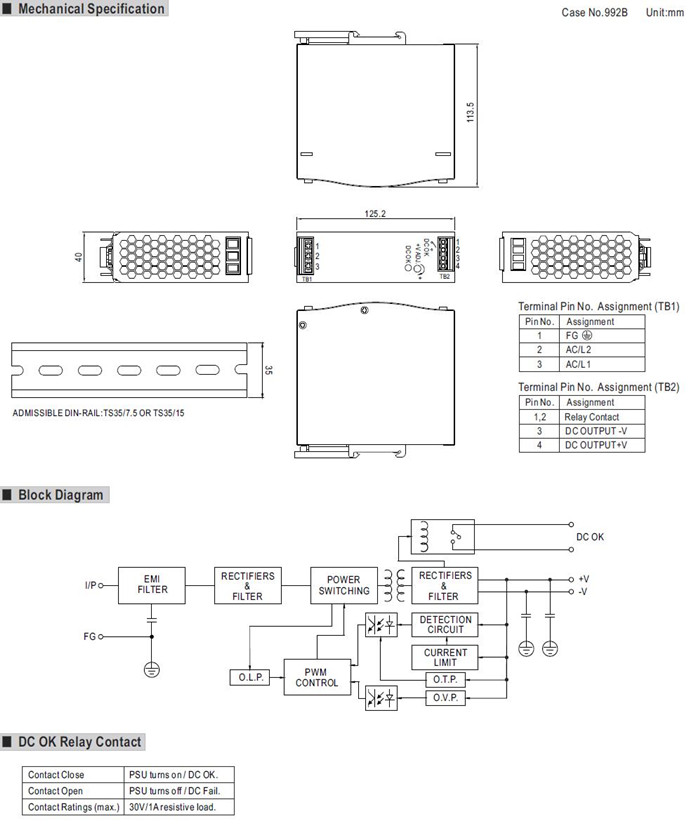

Meanwell WDR-120 Series Mechanical Diagram
