RPS-120S-27
25.82
Details

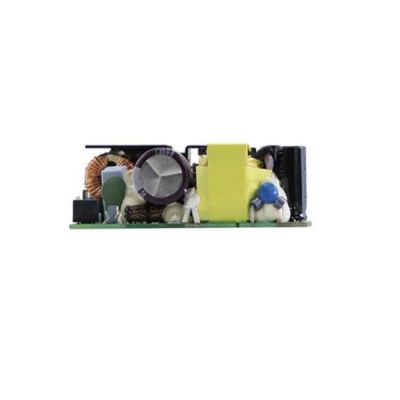

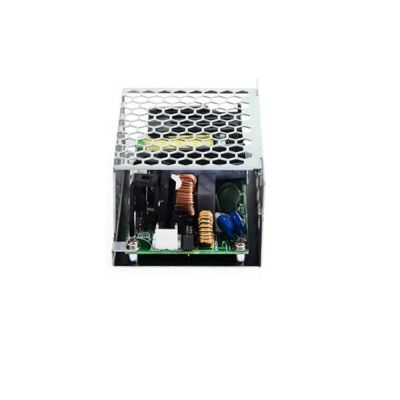

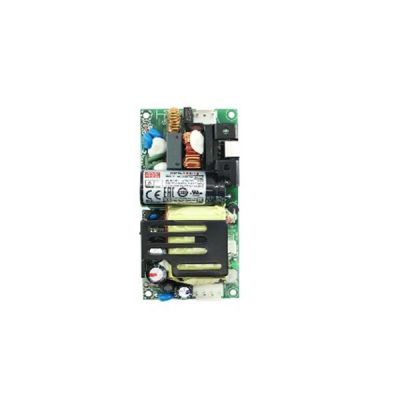

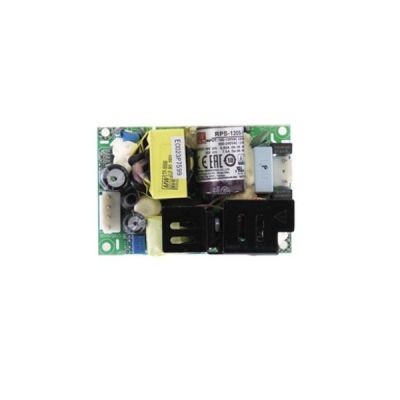

Meanwell RPS-120S-27 is a 120W highly reliable green PCB type medical power supply with 27V5.55A4.44A149.8W119.9W150mVp-p25.6-28.4V. It is designed with high power density on 3"*2" footprint, and also accepts 80~264VAC input. Additionally, the unit stands out with the high working efficiency up to 94%, extremely low no load power consumption and operating altitude up to 4000 meters. Therefore, RPS-120S-27 could be applied fоr both ClassⅠ(with FG) or Class Ⅱ (no FG) system. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ down below150 uA, the item complies with the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, it supplies the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In view of its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-120S-27 is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-120S-27 Encoding
| RPS | Series Name |
| 120S | Rated Wattage |
| 27 | Output Voltage |
Meanwell RPS-120S-27 Specifications
| Model | RPS-120S-27 | ||
| OUTPUT | DC VOLTAGE | 27V | |
| CURRENT | Peak(10sec) | 5.55A | |
| Convection | 4.44A | ||
| RATED POWER | Peak(10sec) | 149.8W | |
| Convection | 119.9W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 25.6-28.4V | ||
| VOLTAGE TOL ERANCE | ±1.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ||
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 15ms/230VAC 15ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||
| EFFICIENCY (Typ.) | 94.00% | ||
| AC CURRENT (Typ.) | 2.3A/115VAC 1.1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||
| LEAKAGE CURRENT max | Earth leakage current < 150 A/264VAC , touch current < 80 A/264VAC | ||
| PROTECTION | OVERL OAD | 130~160% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 29.7-35V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP. | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axe | ||
| OPERATING ALTITUDE | 4000 meters | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004, UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) | |
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 4050.3K hrs min. Telcordia SR-332 (Bellcore) ; 468.0K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 76.2*50.8*28mm or 3" * 2" *1.1" inch | ||
| PACKING | 0.13Kg; 100pcs/14Kg/1.13CUFT | ||
Meanwell RPS-120S-27 Features
l 3"x2" compact size
l 3 years warranty
l Extremely low leakage current
l No load power consumption<0.3W
l 120W convention, 150W peak (10sec.)
l Operating altitude up to 4000 meters
l Suitable for BF application with appropriate system consideration
l EMI for both ClassⅠ& ClassⅡconfiguration
l -30~+85℃ wide range operating temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell RPS-120S-27 Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
Meanwell RPS-120S-27 Mechanical Diagram
