NLDD-H
6.12
Details

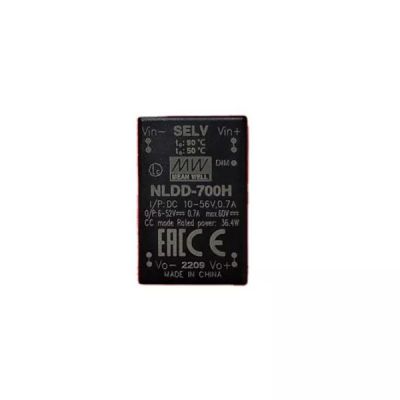

Meanwell NLDD-H Series is a 60W DC/DC step-down LED driver featuring constant current output designed in compact size. The entire series converts 48V DC input voltage into constant current output and directly drives the LED module. NLDD-H is available in a variety of output currents, including 350/500/700/1050/1200/1400 mA. Moreover, the efficiency reaches high up to 96%. With 94V-0 flame retardant plastic case, fully-potted silicone enhancing heat dissipation, this allows the products to fit for class Ш or DC bus lighting applications. LDD, LDB, LDH series are all DC-DC constant current output LED drivers, LDD is step-down type, LDH is step-up type, and LDB is buck-boost type model. Considering its longevity, high reliability and low cost, Meanwell NLDD-H Series serves as an ideal solution for driving illumination LED such as commercial track lamps or indoor lighting fixtures such as offices and classrooms.
Meanwell NLDD-H Series Encoding

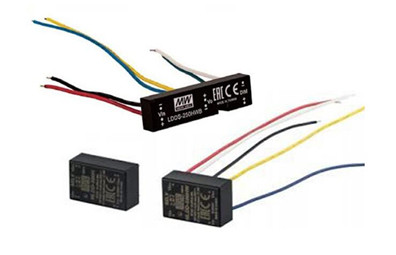

| NLDD | Series Name |
| 350 | Output Current ( 350/500/700/1050/1200/1400mA) |
| H | |
| W | Blank: Pin style for PCB mounting |
| W: Wire Style |
Meanwell NLDD-H Series Model Specifications
| ORDER NO. | NLDD-350H□ | NLDD-500H□ | NLDD-700H□ | NLDD-1050□ | NLDD-1200H□ | NLDD-1400H□ | |
| OUTPUT | CURRENT RANGE | 350mA | 500mA | 700mA | 1050mA | 1200mA | 1400mA |
| VOLTAGE RANGE | 6-52VDC | ||||||
| CURRENT ACCURACY (Typ.) | ±5% at 48VDC input | ||||||
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 200mVp-p | 350mVp-p | 350mVp-p | 350mVp-p | |
| SWITCHING FREQENCY | 200KHz | ||||||
| Input | VOLTAGE RANGE | 10 ~ 56VDC (59VDC Max.) | |||||
| EFFICIENCY (max.) | 96% at full load and 36VDC/48VDC input | 95% at full load and 36VDC/48VDC input | |||||
| DC CURRENT Full load | 350mA | 490mA | 700mA | 1100mA | 1200mA | 1360mA | |
| DC CURRENT No load | 5mA | ||||||
| PWM DIMMING & ON/OFF CONTROL | REMOTE ON/OFF | Leave open if not use | |||||
| Power ON with dimming: DIM ~ -Vin >2.5 ~ 5VDC or open circuit | |||||||
| Power OFF : DIM ~ -Vin < 0.8VDC or short | |||||||
| PWM FREQUENCY | 100 ~ 1KHz | ||||||
| QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (max.) | 2mA at PWM dimming OFF at 48VDC input | ||||||
| PROTECTION | SHORT CIRCUIT | Regulated at rated current | |||||
| Protection type: Can be continued, recovers automatically after fault condition is removed | |||||||
| OVER TEMPERATURE | Tj 165℃typically(IC1) detect on main control IC | ||||||
| Protection type : Shut down, recovers automatically after temperature goes down | |||||||

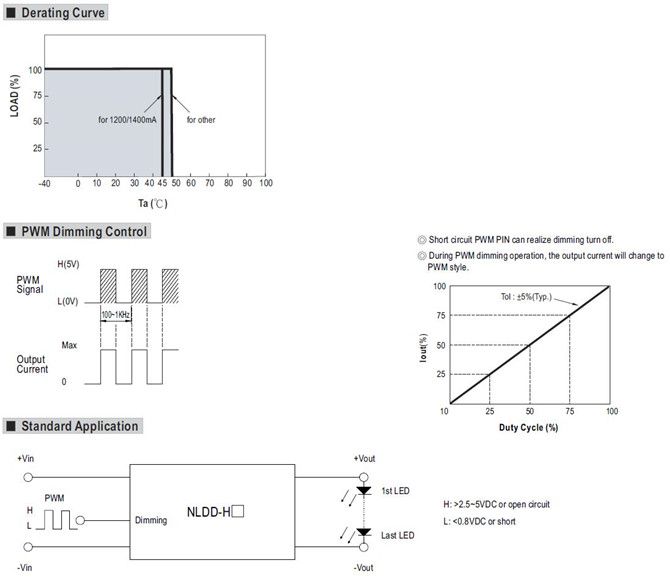

| ENVIRONMENT | WORKING TEMP. | -40 ~ + 50℃(Refer to derating curve) | |||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03% /℃ | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | ||||||
| OPERATING CASE TEMP. (max.) | 90℃ | ||||||
| EMC | SAFETY STANDARDS | LVD BS EN/EN61347-1, BS EN/EN61347-2-13;IEC61347 and EAC TP TC 004 approved | |||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61547 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020 | ||||||
| Others | MTBF | 29984.3K hrs min. Telcordia SR-332 (Bellcore) 2881.6Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 32.1*20.5*12.5mm or 1.26"*0.8"*0.49" inch (L*W*H) | ||||||
| WEIGHT | NLDD-H:15.6g ; NLDD-HW:18g (Please refer to Page 6 for packing) | ||||||
| POTTING MATERIAL | Expoxy (UL94-V0) | ||||||
Meanwell NLDD-H Series Features
l DC/DC step-down converter
l Constant current output: 350mA to 1400mA
l Wide input voltage: 10~56VDC (59VDC Max.)
l Wide output LED forward voltage: 6~52VDC
l High efficiency up to 96%
l Comply with BS EN/EN61347 and BS EN/EN55015 regulation·
l Built-in PWM and remote ON/OFF control
l Protections: Short circuit/Over temperature
l Cooling by free air convection
l Fully encapsulated and compact site
l Suitable for driving illumination LED
l 3 years warranty
Meanwell NLDD-H Series Applications
l DC battery source lighting
l Portable lighting
l Commercial lighting
l DC 48V Track lighting
l DC 24V landscape lighting
l For C lassⅢapplication (SELV)
Meanwell NLDD-H Series Mechanical Diagram
