OWA-60U-42
25.98

OWA-60U-42

$25.98

Meanwell 60W Single Output Moistureproof Adaptor with 42V21-42V1.5A63W250mVp-p±1.0%±1.0%±1.0%

- +
Availability:In stock
SKU Meanwell OWA-60U-42
Brand Meanwell
Details

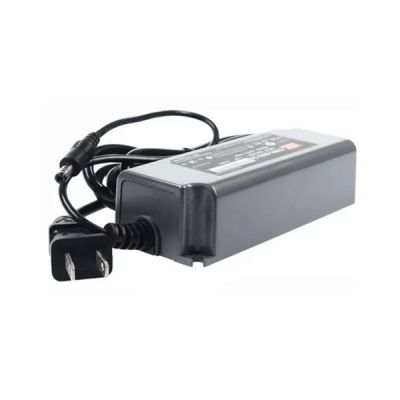

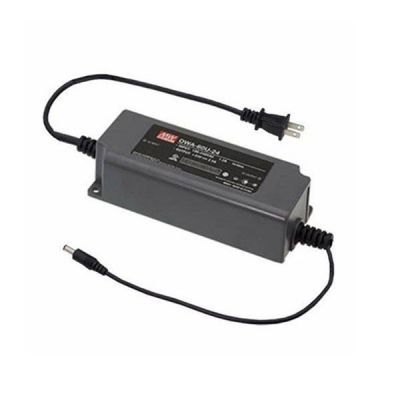

Meanwell OWA-60U-42 is a 60W single-output external LED power supply with 42V21-42V1.5A63W250mVp-p. The model pairs the North American type of AC plug and prevailing DC connectors. At the same time, OWA-60U-42 works like an adaptor, and simplifies the connection with LED lighting fixtures without extra wiring efforts. It is certified with the ULLISTED for dry and damp locations. As a ClassⅡ(no FG) design, its enclosure is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone which enhances the heat dissipation. With the efficiency reaching high up to 91%, OWA-60U-42 is cooled by free air convection. What’s more, the working temperature ranges from -35℃ to +70℃. Due to its longevity, high efficiency and excellent reliability, Meanwell OWA-60U-42 serves as an ideally suitable solution for harsh environments.

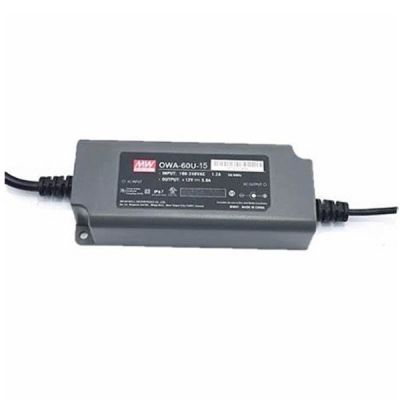

Meanwell OWA-60U-42 price and specs 60W Single Output ac/dc Adaptor 42v OWA-60U-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-60U-42 Encoding

OWA Series Name
60 Output wattage
U North American type of AC plug
42 Output Voltage

Meanwell OWA-60U-42 Specifications

ORDER NO. OWA-60U-42
OUTPUT DC VOLTAGE 42V
CONSTANT CURRENT REGION 21-42V
RATED CURRENT 1.5A
RATED POWER 63W
RIPPLE & NOISE (max.) 250mVp-p
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±1.0%
HOLD UP TIME (Typ.) 500ms, 80ms/230VAC 1000ms, 80ms/115VAC at 95% load
SETUP, RISE, HOLD UP TIME 10ms at full load 115VAC / 230VAC
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 115VAC 88.50%
EFFICIENCY (Typ.) 230VAC 90.00%
AC CURRENT 1.2A / 115VAC 0.7A / 230VAC
INRUSH CURRENT (Typ.) COLD START 35A(twidth=750 s measured at 50% Ipeak) at 115VAC COLD START 65A(twidth=750μ s measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.25mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 46-54V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -35 ~ +70 (Refer to "Derating Curve)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750 listed; CSA C22.2 No.250.13-12(except for 42V,48V,54V); IP67 approved for power body
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to FCC Part15
Others MTBF 4386.2K hrs min. Telcordia SR-332 (Bellcore) 522.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 130*53*35mm
PACKING 0.41Kg; 16pcs/9.5Kg/0.85CUFT

Meanwell OWA-60U-42 Features

l  Universal AC input/Full range (up to 264VAC)

l  5 years warranty

l  High efficiency up to 91%

l  ClassⅡpower unit, no FG

l  Class 2 power unit

l  Fully isolated plastic case

l  Fanless design, cooling by free air convection

l  No load power consumption <0.15W

l  Comply with EISA 2007 DoE and NRCan

l  UL LISTED, suitable for dry and damp locations

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Over current/Over voltage/Over temperature

Meanwell OWA-60U-42 price and specs 60W Single Output ac/dc Adaptor 1.5a OWA-60U-12 15 20 24 30 36 42 48 54 YCICT

Meanwell OWA-60U-42 Applications

l  Indoor LED lighting

l  LED decorative lighting

l  LED office lighting

l  General electronic products in dusty or humid environment

Meanwell OWA-60U-42 Mechanical Diagram

Meanwell OWA-60U-42 price and datasheet 60W Single Output ac/dc Adaptor 1.5a OWA-60U-12 15 20 24 30 36 42 48 54 YCICT
