LPL-18
6.56
Details

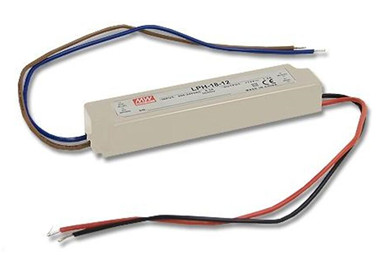

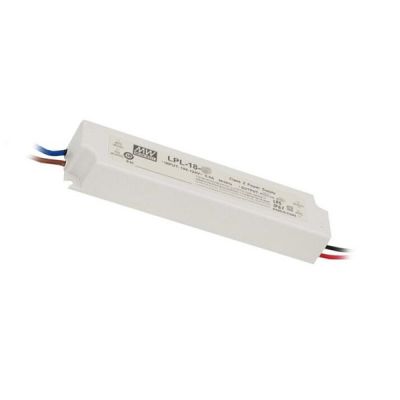

Meanwell LPL-18 Series is 18W Single Output Switching Power Supply. The entire series accepts 90-132V AC input only. Since its efficiency reaches high up to 84%, fully encapsulated design also enhances heat dissipation, and could operate from -30℃ through 70℃ under air convection without fan. LPL-18 delivers extremely low no load power consumption, and allows the end system to easily meet the worldwide energy requirement. In addition, it is equipped with various protections like Short circuit, Overload, Over voltage and Over temperature. Considering its high reliability, good quality, and competitive price, Meanwell LPL-18 Series is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, and so on
Meanwell LPL-18 Series Model Specifications
| Model | LPL-18-12 | LPL-18-24 | LPL-18-36 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V |
| RATED CURRENT | 1.5A | 0.75A | 0.5A | |
| CURRENT RANGE | 0-1.5A | 0-0.75A | 0-0.5A | |
| RATED POWER | 18W | 18W | 18W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±3.0% | |||
| LINE REGULATION | ±1.0% | |||
| LOAD REGULATION | ±2.0% | |||
| SETUP, RISE TIME | 1500ms, 30ms / 115VAC | |||
| HOLD UP TIME (Typ.) | 20ms/115VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 132VAC 127 ~ 186VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 80.00% | 83.00% | 84.00% | |
| AC CURRENT | 0.5A/115VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 40A(twidth=200μs measured at 50% Ipeak) at 115VAC | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 16 units (circuit breaker of type B) / 27 units (circuit breaker of type C) at 115VAC | |||
| LEAKAGE CURRENT | 0.25mA / 115VAC | |||
| PROTECTION | OVERLOAD | Above 105% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.8-16.2V | 27.6-32.4V | 41.4-48.6V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||
| OVER TEMPERATURE | Shut down, recovers automatically after temperature goes down | |||
| ENVIRONMENT | WORKING TEMP. | -30~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004,IP67 approved; design refer to UL1310 Class 2,TUV EN60950-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, FCC Part 15, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, EAC TP TC 020 | |||
| Others | MTBF | 6901.7K hrs min. Telcordia SR-332 (Bellcore) ; 1171.8Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 140*30*22(L*W*H) | |||
| PACKING | 0.175Kg; 70pcs/13.3Kgs/0.71CUFT | |||
Meanwell LPL-18 Series Features
l 90-132V AC input only
l Fully encapsulated with IP67 level
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Class I power unit, no F G
l Pass L PS
l 100% full load burn-in test
l Suitable for LED related fixture or appliance (such as L ED Decoration or Advertise ment devices)
l High reliability/Low cost
l 2 years warranty
Meanwell LPL-18 Series Mecnanical Diagram
