EDR-150
23.16

EDR-150

As low as $23.16

Meanwell 150W Single Output Industrial DIN RAIL

- +
Availability:In stock
SKU Meanwell EDR-150
Brand Meanwell
Details

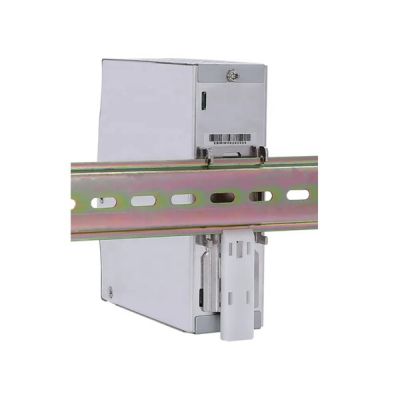

Meanwell EDR-150 Series is one economical slim DIN rail power supply providing up to 1 56W at 230V AC input. The series is used to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed just 40mmin width, which saves a lot of space inside the cabinets. EDR-150 Series adopts the full range AC input from 90VAC to 264V AC and conforms to BS EN/EN6 1000-3-2(<80% Load), the norm the European Union regulates for harmonic current. Apart from them, Meanwell EDR-150 series is designed with metal housing that enhances the power dissipation. With working efficiency up to 87%, the series can operate at the ambient temperature between -20℃ and 60℃ under air convection. Furthermore, It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make EDR-150 series a very competitive power supply solution for industrial applications.

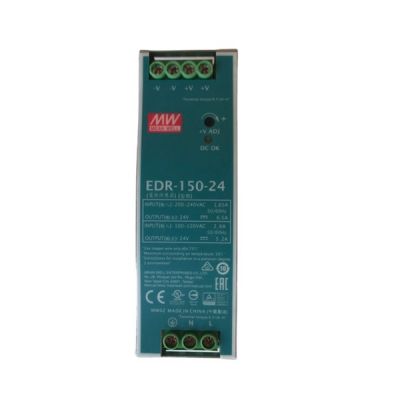

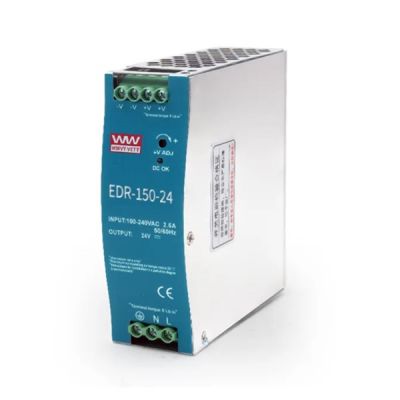

Meanwell EDR-150

Meanwell EDR-150 Series Model Specifications

Model EDR-150-24
Output DC VOLTAGE 24V
RATED CURRENT 6.5A / 230VAC 5.2A / 115VAC
CURRENT RANGE 0 ~ 6.5A / 230VAC 0 ~ 5.2A / 115VAC
RATED POWER  156W / 230VAC 125W / 115VAC
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 24 ~ 28V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 10ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  87.00%
AC CURRENT (Typ.) 2.6A/115VAC 1.7A/230VAC
INRUSH CURRENT (Typ. ) 87%20A/115VAC 35A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed / 230VAC
105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed / 115VAC
OVER VOLTAGE 29 ~ 33V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -20 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet BS EN/EN60204-1)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2, Class A(S 80% Load), BS EN/EN61000-3-3,EAC TP TC 020, CNS13438 Class A
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2),
heavy industry level, criteria A, EAC TP TC 020
Others MTBF 472.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 40*125.2*113.5mm (W*H*D)
PACKING 0.6Kg; 20pcs/13Kg/1.16CUFT

Meanwell EDR-150 Series Features

l  Universal AC input/ Full range

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  UL 508 (industrial control equipment) approved

l  BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

l  100% full load burn-in test

l  2 years warranty

Meanwell EDR-150 Series Features

Meanwell EDR-150 Series Applications

l  Industrial control system

l  Semiconductor fabrication equipment

l  Factory automation

l  Electro-mechanical apparatus

Meanwell EDR-150 Series Applications2

Meanwell EDR-150 Series Mechanical Diagram

Meanwell EDR-150 Series Mechanical DiagramMeanwell EDR-150 Series Mechanical Diagram
