PSPA-1000
150.28
Details

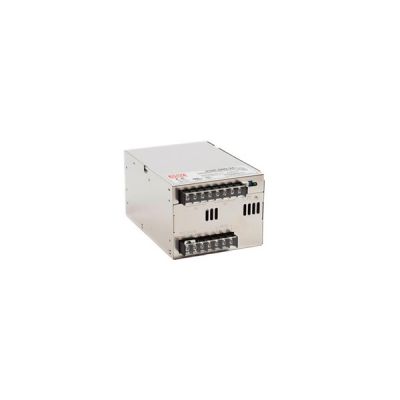

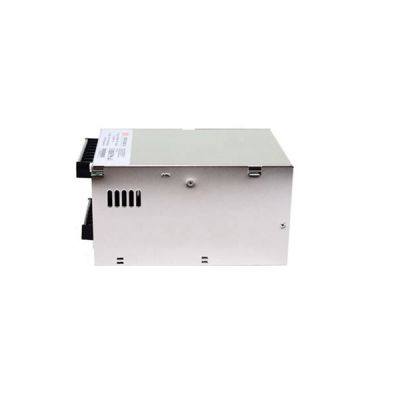

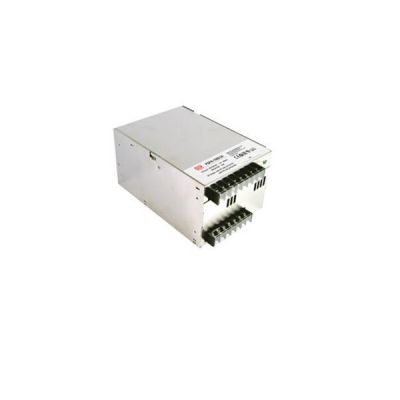

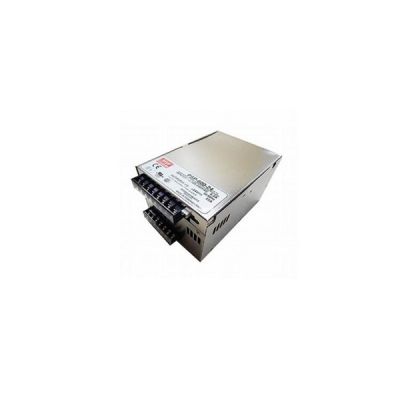

Meanwell PSPA-1000 Series is a 1000 single output enclosed type AC to DC power supply. The input voltage range of the whole series is 90~264VAC, and can provide different models with rated voltage between 12V and 48V. Due to the high conversion efficiency of 94% and the internal fan, the entire series of models can work at an ambient temperature of -20 °C -+70°C. PSPA-1000 utilizes built-in multiple functions such as current sharing and remote on/off control , remote sensing. Therefore, help to provide great design flexibility for different types of applications
Meanwell PSPA-1000 Series Specifications
| Model | PSPA-1000-12 | PSPA-1000-15 | PSPA-1000-24 | PSPA-1000-48 | |
| Output | DC VOLTAGE | 12V | 15V | 24V | 48V |
| RATED CURRENT | 80A | 64A | 42A | 21A | |
| CURRENT RANGE | 0-80A | 0-64A | 0-42A | 0-21A | |
| RATED POWER | 960W | 960W | 1008W | 1008W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 150 mVp-p | 200 mVp-p | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | 11-14V | 14-17V | 22-28V | 46-56V | |
| VOLTAGE TOLERANCE | ±2% | ±1.5% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2% | ±1.5% | ±1% | ±1% | |
| SETUP, RISE TIME | 1000ms,50ms/115VAC 1000ms,50ms/230VAC | ||||
| HOLD UP TIME | 16ms at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR (Typ.) | 0.95/230VAC 0.99/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 92.00% | 93.00% | 93.50% | 94.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 5A/230VAC | ||||
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | ||||
| LEAKAGE CURR ENT | <0.5mA/240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 14.5-16.5V | 18.2-20.6V | 29-33V | 58-65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||
| FUNCTION | CURRENT SHARING | Up to 4000W or (3+1) units. Please refer to the Function Manual. | |||
| REMOTE ON-OFF CONTROL | Power ON : short; Power OFF : open. Please refer to the Function Manual. | ||||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual. | ||||
| POK SIGNAL | The TTL signal out, PSU turn on = 2.4 ~ 5V ; PSU turn off = 0 ~ 0.4V. Please refer to the Function Manual. | ||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted Radiated Harmonic Current Voltage Flicker |
BS EN/EN55032 (CISPR32) BS EN/EN55032 (CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3 |
Class B Class B Class A ----- |
|||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2, BSMI CNS13438 | ||||
| Parameter | Standard | Test Level | |||
| ESD Radiated EFT / Burst Surge Conducted Magnetic Field Voltage Dips and Interruptions |
BS EN/EN61000-4-2 BS EN/EN61000-4-3 BS EN/EN61000-4-4 BS EN/EN61000-4-5 BS EN/EN61000-4-6 BS EN/EN61000-4-8 BS EN/EN61000-4-11 |
Level 3, 8KV air ; Level 2, 4KV contact Level 3 Level 3 Level 4, 2KV/Line-Line 4KV/Line-Earth Level 3 Level 4 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||
| Others | MTBF | 274.3K hrs min. Telcordia SR-332 (Bellcore) ; 94.4K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 170*120*93mm (L*W*H) | ||||
| PACKING | 1.93Kg ; 8pcs/16.4Kg/1.53CUFT | ||||
Meanwell PSPA-1000 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l Protections: Short circuit/ Overload/Over voltage/Over temperature
l Forced air cooling by built-in DC fan
l Current sharing up to 4000W(3+1)
l With DC OK Signal output
l Built-in remote ON-OFF control
l Built-in remote sense function
l 5 years warranty
Meanwell PSPA-1000 Series Applications
l Factory control or automation apparatus
l Test and measurement instrument
l Laser related machine
l Burn-in facility
l RF application
Meanwell PSPA-1000 Series Mechanical Diagram
