NPP-1700-12
230.16
Details

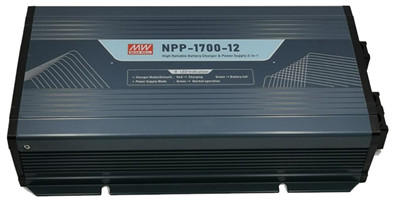

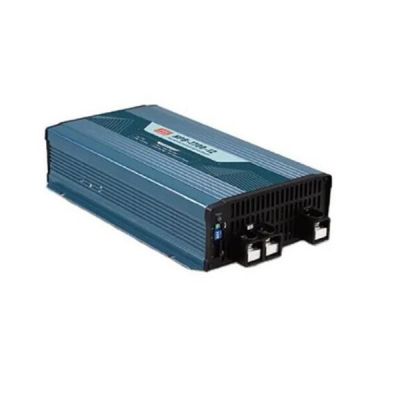

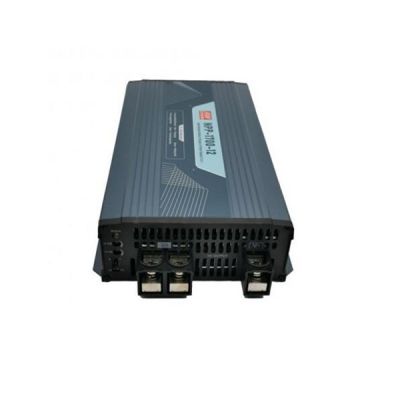

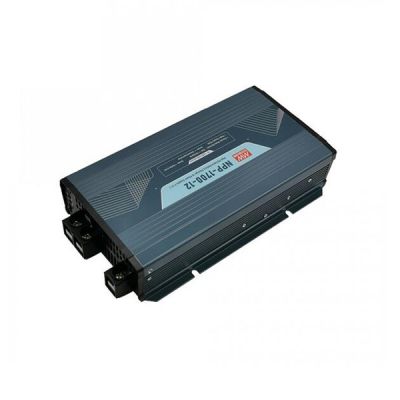

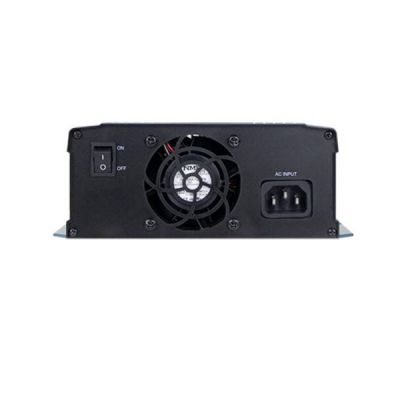

Meanwell NPP-1700-12 is a miniaturized dual-purpose charger and power supply with 14.4V13.8V10.5-21V85A42.5-85A1428W1428W180mVp-p. Apart from being used as a three-stage charger for lead-acid batteries, the model could work as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connector on the front panel. Meanwhile, NPP-1700-12 features ultra-wide voltage output, adjustable voltage via VR on the panel (10.5~21V), adjustable charging current (50~100%), built-in intelligent fan, -30~+70℃ wide operating temperature,, and built-in remote ON/OFF control. Additionally, the item complies to IEC/EN/UL62368-1 and household EN60335-1/-2-29 dual safety, and equipped with multiple built-in protections, and 3-year warranty. Due to its longevity, high efficiency, and excellent reliability, Meanwell NPP-1700-12 is truly an intelligent, safe, and reliable universal dual-purpose charger and power supply with outstanding cost performance.
Meanwell NPP-1700-12 Encoding
| NPP | Series Name |
| 1700 | Rated Wattage |
| 24 | Output Voltage (12V/24V/48V) |
Meanwell NPP-1700-12 Specifications
| Model | NPP-1700-12 | |
| OUTPUT | BOOST CHARGE VOLTAGE(Vboost)(default) | 14.4V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | |
| VOLTAGE ADJUSTABLE RANGE | 10.5-21V | |
| By built-in potentionmeter | ||
| MAX. OUTPUT CURRENT(CC) | 85A | |
| CURRENT ADJUSTABLE RANGE | 42.5-85A | |
| By built-in potentionmeter | ||
| RATED POWER | 1428W | |
| MAX. POWER | 1428W | |
| RIPPLE & NOISE(max.) | 180mVp-p | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 1800ms, 60ms/230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC at 75% load 10ms/230VAC at full load | |
| RECOMMENDED BATTERY CAPACITY (AMP HOURS) | 300-1000AH | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 250 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT (Typ.) | 14.8A/115VAC 9.3A/230VAC | |
| LEAKAGE CURRENT | <0.75mA/240VAC (60335-1/2-29), <1.5mA Peak/240VAC (62368-1) | |
| INRUSH CURRENT (Typ.) | COLD START 50A at 230VAC | |
| PROTECTION | SHORT CIRCUIT | Protection type : Constant current limiting, charger will shutdown, re-power on to recover |
| OVER VOLTAGE | 21.5-26V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | CHARGING STAGE | 3 stage only |
| CHARGER OK SIGNAL | The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V) | |
| BATTERY FULL SIGNAL | The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V) | |
| REMOTE CONTROL | Open : Charger stop charging Short : Charger normal work | |
| FAN SPEED CONTROL | Depends on internal temperature | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 577.4K hrs min. Telcordia SR-332 (Bellcore) ; 58.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 307.7*184*70mm (L*W*H) | |
| PACKING | 2.96Kg; 4pcs/ 14Kg / 2.58CUFT | |
Meanwell NPP-1700-12 Features
l 3 years warranty
l Remote ON-OFF control
l Comply with 62368-1 +60335-1/-2-29 dual certification
l Suitable for lead-acid (Pb) batteries
l Carry handle accessory available (Order NO.: DS-Carry handle, sold separately)
l Multi-function single unit battery charger or power supply operation modes selectable
l Output voltage and current adjustable via potentiometer
l 3-stage charging curve for charging mode
l -30~+70 ℃ wide operating temperature
l Multiple protections: Short circuit/Over load/Over voltage/Over temperature
l Thermal controlled DC fan for noise reduction
Meanwell NPP-1700-12 Applications
l Radio system backup solution
l Electric scooter charger
l Surveillance system
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Camping car, Buses, Heavy duty truck, Specialty vehicles
Meanwell NPP-1700-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
