HRP-450
115.26

HRP-450

As low as $115.26

Meanwell 450W Single Output with PFC Function

- +
Availability:In stock
SKU Meanwell HRP-450
Brand Meanwell
Details

Meanwell HRP-450 is 450 W Single Output with PFC Function. The whole series provides an output voltage line of 3.3V 5V 7.5V 12V 15V 24V 36V 48V. Apart from the high efficiency, the metallic mesh case design enhances the heat dissipation. With delivering an extremely low no load power consumption, it permits the end system to easily fulfill the worldwide energy requirement, and complied with the international safety regulations such as UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004. Furthermore, the series is equipped with Built-in DC OK signal, remote sense function, cooling fan ON-OFF control, and Built-in remote ON-OFF control. Additionally, It has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Considering the high efficiency, high reliability and long longevity. Meanwell HRP-450 series serves as a high price-to-performance power supply solution for various applications.

Meanwell HRP-450 series picture

Meanwell HRP-450 Series Model Specifications

Model HRP-450-3.3 HRP-450-5 HRP-450-7.5 HRP-450-12 HRP-450-15 HRP-450-24 HRP-450-36 HRP-450-48
Output DC VOLTAGE 3.3V 5V 7.5V 12V 15V 24V 36V 48V
RATED CURRENT 90A 90A 60A 37.5A 30A 18.8A 12.5A 9.5A
CURRENT RANGE 0-90A 0-90A 0-60A 0-37.5A 0-30A 0-18.8A 0-12.5A 0-9.5A
RATED POWER  297W 450W 450W 450W 450W 451.2W 450W 456W
RIPPLE & NOISE (max.) mVp-p 80 90 100 120 150 150 240 240
VOLTAGE ADJ. RANGE 2.8-3.8V 4.3-5.8V 6.8-9V 10.2-13.8V 13.5-18V 21.6-28.8V 28.8-39.6 40.8-55.2V
VOLTAGE TOLERANCE ±2.0% ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2%
LOAD REGULATION ±1.5% ±1.0% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  80.00% 83.00% 86.50% 88.00% 89.00% 88.00% 89.00% 89.50%
AC CURRENT (Typ.) 5A/115VAC 2.4A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT <1.5mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 3.96-4.62V 6-7V 9.4-10.9V 14.4-16.8V 18.8-21.8V 30-34.8V 41.4-48.6V 57.6-67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC OK SIGNAL PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.) Load 20 +-10% or RTH2 >=50 degree Fan On
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, heavy industry level, criteria A, EAC TP TC 020
Others MTBF 139.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 218*105*41mm (L*W*H)
PACKING 1.19Kg; 12pcs/15.3Kg/0.82CUFT

Meanwell HRP-450 Series Features

l  Universal AC input/Full range .

l  Built-in active PFC function, PF>0.95

l  High efficiency up to 89. 5%

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Built-in constant current limiting circuit

l  Built-in cooling Fan ON-OFF control

l  Built-in DC OK signal

l  Built-in remote sense function

l  5 years warranty

Meanwell HRP-450 series certificate

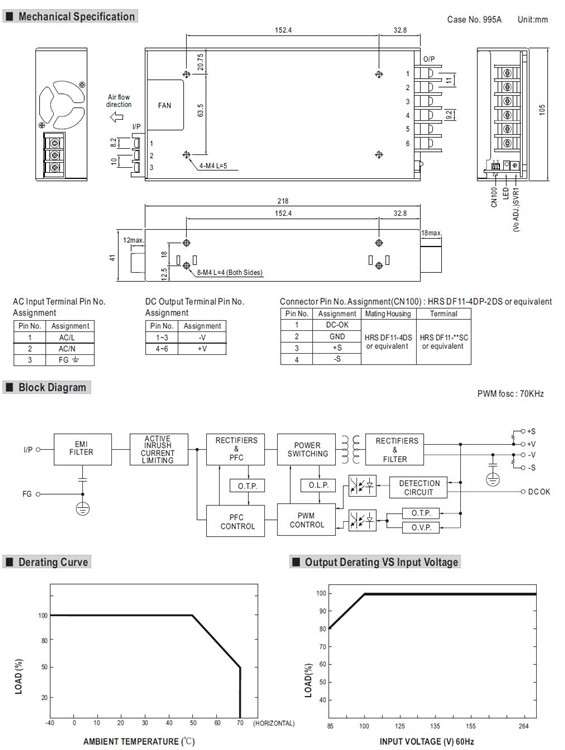

Meanwell HRP-450 Series Mechanical Diagram

Meanwell HRP-450 mechanical diagram ycict

HRP-450-3.3 Meanwell HRP-450-3.3 new and original ycict
