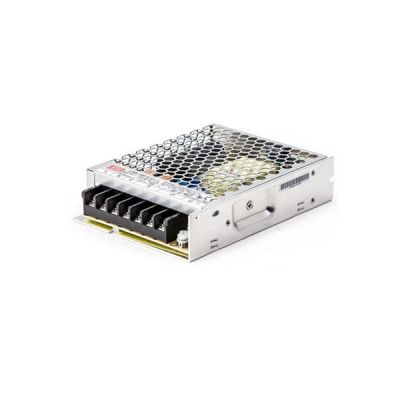

Meanwell 100W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell LRS-100
Brand Meanwell
Details

Meanwell LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low -profile design. The entire series provides an output voltage line of3.3V, 5V, 12V, 15V,24V, 36V and 48V with Adopting the full range 85~264V AC input. Apart from the high efficiency up to 91%, the metallic mesh case design enhances the heat dissipation, and operates from -30℃ through 70℃ under air convection without a fan. By delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to meet the worldwide energy requirement, and has the complete protection functions and 5G anti-vibration capability. At the same time, it is complied with the international safety regulations like TUV BS EN/EN2368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16,UL62368-1 and GB4943. LRS-100 series serves as a high price-to-performance power supply solution for various industrial applications.

Meanwell LRS-100 Series Model Specifications

Meanwell LRS-100 Series Model Specifications

Model LRS-100-3.3 LRS-100-5 LRS-100-12 LRS-100-15 LRS-100-24 LRS-100-36 LRS-100-48
Output DC VOLTAGE 3.3V 5V 12V 15V 24V 36V 48V
RATED CURRENT 20A 18A 8.5A 7A 4.5A 2.8A 2.3A
CURRENT RANGE 0-20A 0-18A 0-8.5A 0-7A 0-4.5A 0-2.8A 0-2.3A
RATED POWER 66W 90W 102W 105W 108W 100.8W 110.4W
RIPPLE & NOISE (max.) mVp-p 100 100 120 120 150 200 200
VOLTAGE ADJ. RANGE 2.97-3.6V 4.5-5.5V 10.2-13.8V 13.5 ~ 18V 21.6 ~ 28.8V 32.4 ~ 39.6V 43.2 ~ 52.8V
VOLTAGE TOLERANCE ±3% ±2% ±1% ±1% ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  55ms/230VAC 10ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  84.50% 86% 88% 88.50% 90% 90.50% 91%
AC CURRENT (Typ.) 1.9A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ. ) COLD START 50A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8~4.45V 5.75~ 6.75V 13.8 ~ 16.2V 18.75 ~ 21.75V 28.8 ~ 33.6V 41.4 ~ 48.6V 55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI
CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level,
criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
Others MTBF 720.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 129*97*30mm (L*W*H)
PACKING 0.34Kg ; 40pcs/14.6Kg/0.92CUFT

Meanwell LRS-100 Series Features

l   Universal AC input/ Full range

l   Withstand 300VAC surge input for 5 second

l   Protections: Short circuit/Overload/Over voltage

l   Cooling by free air convection

l   Miniature size and 1U low profile

l   Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61 558-1, 2-16 for household appliances

l   Operating altitude up to 5000 meters

l   Withstand 5G vibration test

l   LED indicator for power on

l   No load power consumption<0.3W

l   Оvеr vоltаgе CаtеgоryⅢ

l   100% full load burn-in test

l   High operating temperature up to 70℃

l   High efficiency, long life and high reliability

l   3 years warranty

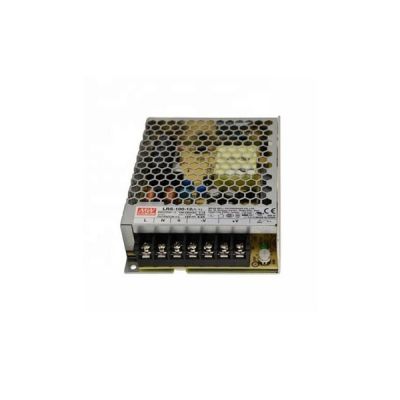

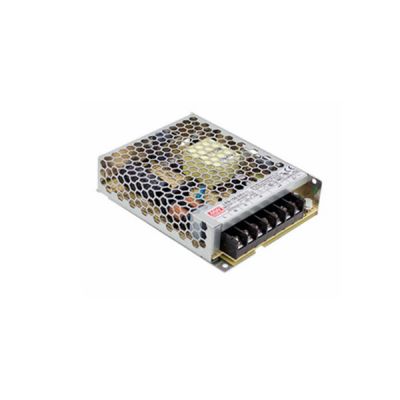

Meanwell LRS-100

Meanwell LRS-100 Series Applications

l  Household appliances

l  Industrial Control System

l  Industrial Automation Machinery

l  Mechanical and electrical equipment

l  Electronic instruments, equipment and devices

Meanwell LRS-100 Series Model Specifications

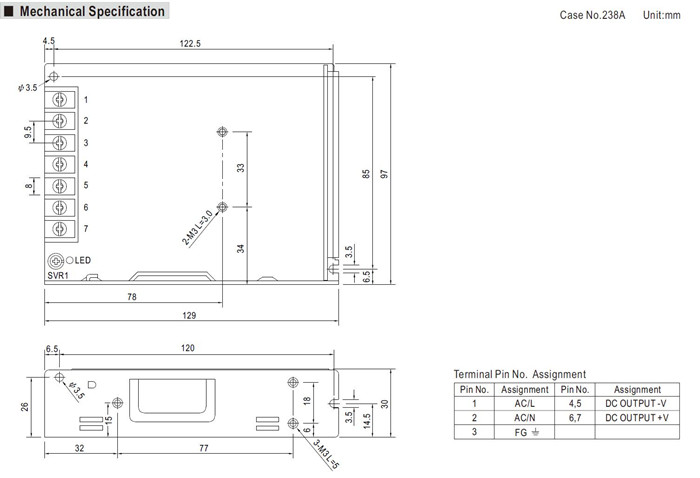

Meanwell LRS-100 Series Mechanical Diagram

Meanwell LRS-100 Series Mechanical DiagramMeanwell LRS-100 Series Mechanical Diagram
