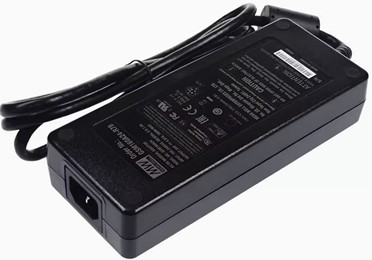

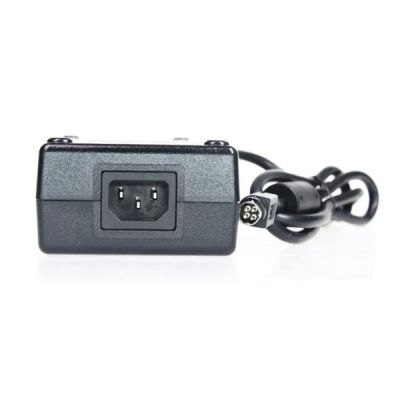

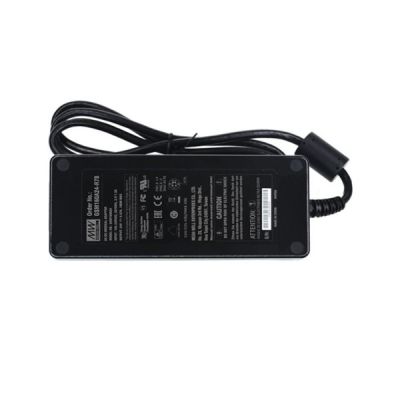

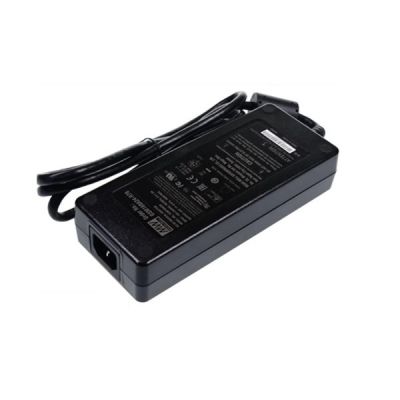

Meanwell GSM160A Series is 160W AC-DC Green Medical Adaptor. The product features single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug, adopting the input range from 80VAC to 264VAC. At the same time, the entire series supplies different output voltages between 12VDC and 48VDC. Therefore, it could satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients. Additionally, the work efficiency reaches high up to 94% and extremely low no-load power consumption below 0.15W. GSM160A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. What’s more, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. Considering its longevity, high efficiency, and excellent performance, Meanwell GSM160A Series serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM160A Series Encoding
| GSM | Series Name |
| 160 | Rated Wattage |
| A | IEC320-C14 AC inlet |
| 12 | Output voltage |
| R7B- DC plug type | R7B: Standard model, Power DIN 4Pin with lock type |
| Other Options available by customer requested |
Meanwell GSM160A Series Model Specifications
| ORDER NO. | GSM160A12-R7B | GSM160A15-R7B | GSM160A20-R7B | GSM160A24-R7B | GSM160A48-R7B | |
| OUTPUT | SAFETY MODEL NO. | GSM160A12 | GSM160A15 | GSM160A20 | GSM160A24 | GSM160A48 |
| DC VOLTAGE | 12V | 15V | 20V | 24V | 48V | |
| RATED CURRENT | 11.5A | 9.6A | 8A | 6.67A | 3.34A | |
| CURRENT RANGE | 0-11.5A | 0-9.6A | 0-8A | 0-6.67A | 0-3.34A | |
| RATED POWER (max) | 138W | 144W | 160W | 160W | 160W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±3.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±4.0% | ±3.0% | ±3.0% | |
| SETUP, RISE TIME | 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 24ms / 230VAC 24ms / 115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | 12V,15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load | |||||
| EFFICIENCY (Typ.) | 90.00% | 91.00% | 92.50% | 93.00% | 94.00% | |
| AC CURRENT (Typ.) | 1.85A / 115VAC 1A / 230VAC | |||||
| INRUSH CURRENT (Typ.) | Cold start 90A / 115VAC 110A / 230VAC | |||||
| LEAKAGE CURRENT(max.) | Earth leakage current < 175 A/264VAC , Touch current <90 A/264VAC | |||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recove | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| OPERATING ALTITUDE | 3000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved | ||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) |
Class B | ||||
| Radiated emission | BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) |
Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN61204-3 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | ||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line , 2KV/Line-FG | ||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||
| Others | MTBF | 2200.0K hrs min. Telcordia SR-332 (Bellcore) ; 239.4K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 175*72*35mm (L*W*H) | |||||
| PACKING | 0.66Kg; 20pcs/14.2Kg/0.95CUFT | |||||
Meanwell GSM160A Series Features
l 3 pole AC inlet IEC320-C14, Class I power unit
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Extremely low leakage current
l No load power consumption<0.15W
l Energy efficiency level VI and meet CoC Version 5
l -30~+70℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l LED indicator for power on
l Lifetime>85 K hours
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM160A Series Applications
l Oral irrigator
l Breath Machine
l Medical computer monitor
l Mobile clinical workstation
l Portable hemodialysis machine

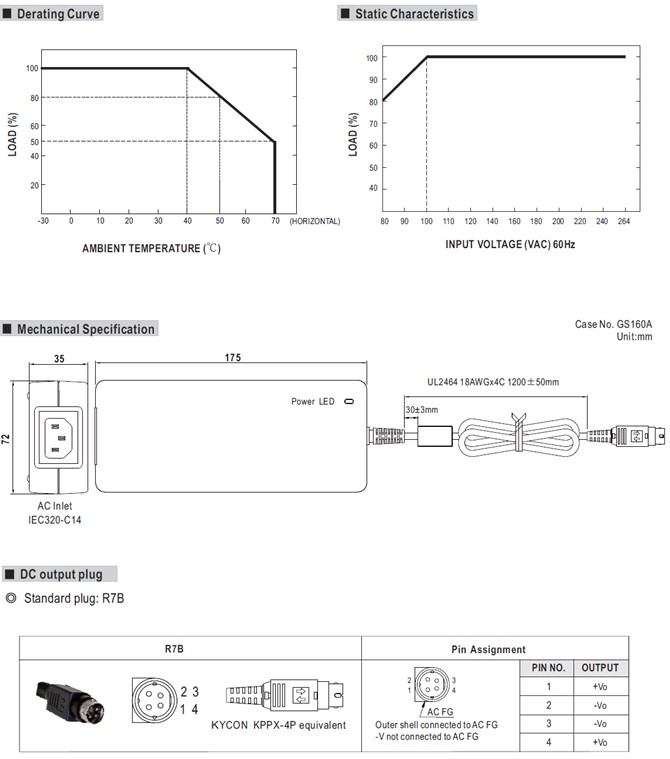

Meanwell GSM160A Series Mechanical Diagram
