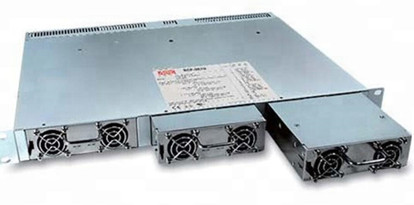

RCP-1000
230.29
Details
Meanwell RCP-1000 Series is a 1000W single output rack mountable front end AC/DC power supply. The entire series operates for 90~264V AC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control. And they could work for the temperature up to 60℃. Apart from them, RCP-1000 series provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing (up to 8000W via three 19" rack shelves, RCP-1U), remote control, auxiliary power, alarm signal, etc. What’s more, it offers the complete protections such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability and high efficiency, Meanwell RCP-1000 Series serves as a high performance power supply solution for various industrial applications such as industrial automation, distributed power architecture system and wireless/telecommunication solution, and so on.
Meanwell RCP-1000 Series Encoding
| RCP | Series Name |
| 1000 | Output Wattage |
| 24 | Output Voltage |
| **** | Interface option |
| Blank | Standard model, without I² C interface |
| C | Standard model, with I² C interface |
Meanwell RCP-1000 Series Model Specifications
| Model | RCP-1000-12 | RCP-1000-24 | RCP-1000-48 | |
| Output | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 60A | 40A | 21A | |
| CURRENT RANGE | 0-60A | 0-40A | 0-21A | |
| RATED POWER | 720W | 960W | 1008W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 200 mVp-p | 300 mVp-p | |
| VOLTAGE ADJ. RANGE(SVR) | 11.6-12.4V | 23.2-24.8V | 46.3-49.7V | |
| VOLTAGE TOLERANCE | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 60ms/230VAC at full load | |||
| HOLD UP TIME | 16ms/230VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.95/230VAC 0.98/115VAC at full load | |||
| EFFICIENCY (Typ.) | 81.00% | 87.00% | 89.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 4.5A/230VAC | 10.5A/115VAC 5.5A/230VAC | 11A/115VAC 5.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A | |||
| LEAKAGE CURR ENT | <1.1mA / 230VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 125% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.2-16.2V | 26.4-32.4V | 52.8-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| FUNCTION | AUXILIARY POWER | 5V @ 0.3A | ||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact ON:short OFF:open | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V | |||
| OUTPUT VOLTAGE PROGRAMMABLE | Adjustment of output voltage is allowable to 90 ~ 110% of nominal output voltage | |||
| DC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |||
| AC OK SIGNAL | The isolated TTL signal out, Please refer to the Installation Manual | |||
| OVER TEMP WARNING | Logic " High" for over temperature warning, Please refer to the Installation Manual, isolated signal | |||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.7KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class B | ||
| Harmonic Current | BS EN/EN61000-3-2 | ---- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 840.8K hrs min. Telcordia SR-332 (Bellcore) ; 107.4K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 295*127*41mm (L*W*H) | |||
| PACKING | 1.93Kg; 6pcs/12.6Kg/1.04CUFT | |||
Meanwell RCP-1000 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 89%
l Forced air cooling by built-in DC fan
l Output voltage programmable
l Built-in OR-ing diode, support hot swap (hot plug)

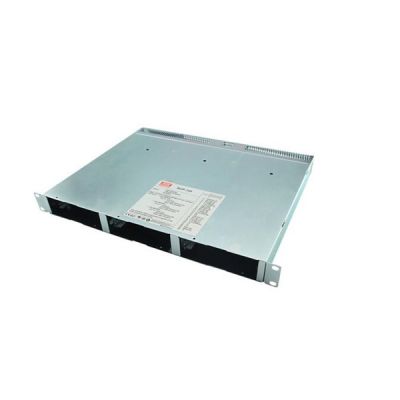

l Active current sharing up to 3000W for one 19" rack shelf
l Built-in I² C interface (RCP-1000-C models only)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Optional conformal coating
l 5 years warranty
Meanwell RCP-1000 Series Applications
l Industrial automation
l Distributed power architecture system
l Wireless/telecommunication solution
l Redundant power system
l Electric vehicle charger system
l Constant current source system

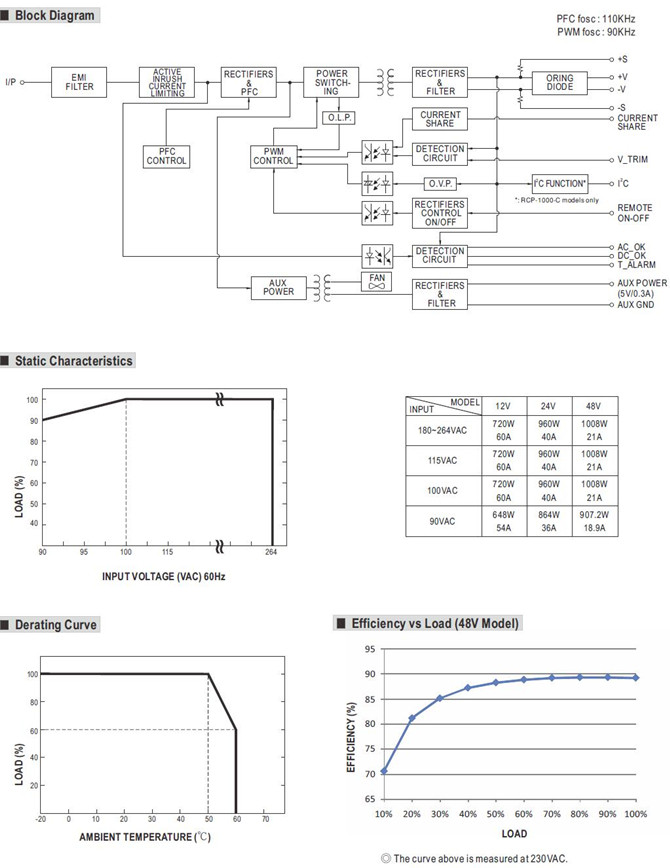

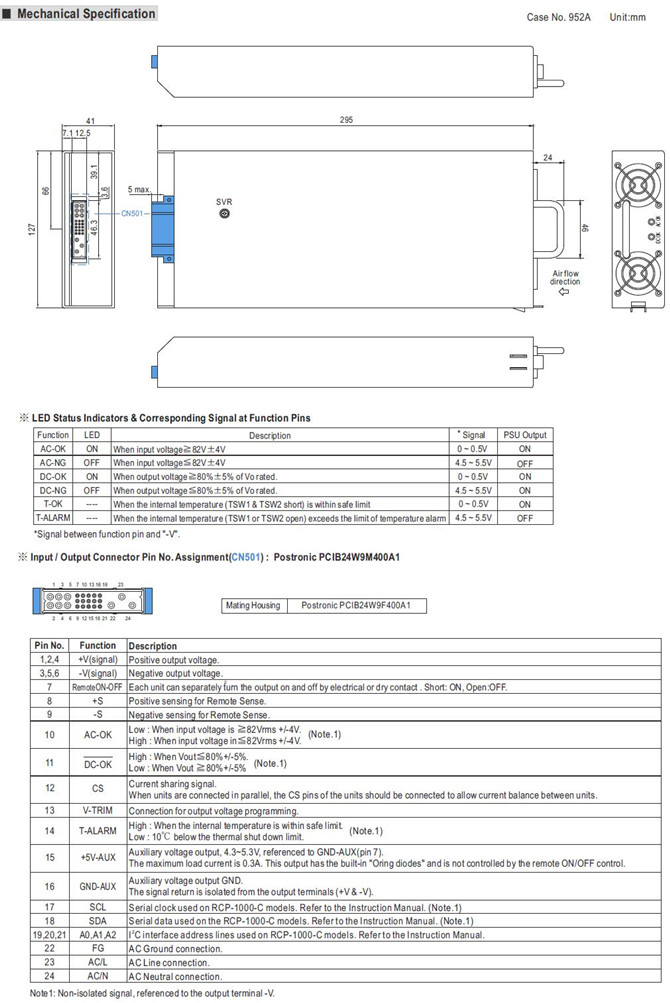

Meanwell RCP-1000 Series Mechanical Diagram
