LRS-100-36
12.73

LRS-100-36

$12.73

Meanwell 100W Single Output Switching Power Supply 36V2.8A0-2.8A100.8W20032.4 ~ 39.6V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-100-36
Brand Meanwell
Details

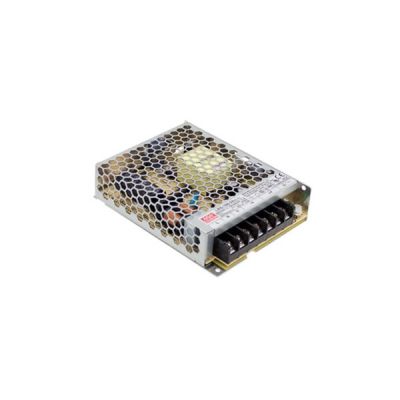

Meanwell LRS-100-36 is a 100W single-output enclosed type power supply with 36V2.8A0-2.8A100.8W and 30mm low profile design. Apart from its high efficiency reaching up to 91%, metallic mesh case enhances the heat dissipation, and also operate from -30℃ through 70℃ under air convection. LRS-100-36 can easily meet the energy standards worldwide, and complied with the international safety regulations like TUV BS EN/EN2368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16,UL62368-1 and GB4943. Thanks to the high efficiency, long life and high reliability, Meanwell LRS-100-36 is a high price-to-performance power supply solution for various industrial areas.

LRS-100-36 Meanwell LRS-100-36 Price and datasheet ycict

Meanwell LRS-100-36 Specifications

Model LRS-100-36
Output DC VOLTAGE 36V
RATED CURRENT 2.8A
CURRENT RANGE 0-2.8A
RATED POWER 100.8W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 32.4 ~ 39.6V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  55ms/230VAC 10ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  90.50%
AC CURRENT (Typ.) 1.9A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ. ) COLD START 50A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41.4 ~ 48.6V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI
CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only)
Others MTBF 720.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 129*97*30mm (L*W*H)
PACKING 0.34Kg ; 40pcs/14.6Kg/0.92CUFT

Meanwell LRS-100-36 Features

l   3 years warranty

l   Оvеr vоltаgе CаtеgоryⅢ

l   100% full load burn-in test

l   Universal AC input/ Full range

l   Withstand 300VAC surge input for 5 second

l   Protections: Short circuit/Overload/Over voltage

l   Cooling by free air convection

l   Miniature size and 1U low profile

l   Operating altitude up to 5000 meters

l   Withstand 5G vibration test

l   LED indicator for power on

l   No load power consumption<0.3W

l   High operating temperature up to 70℃

l   High efficiency, long life and high reliability

l   Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61 558-1, 2-16 for household appliances

LRS-100-36 Meanwell LRS-100-36 Price and datasheet ycict

Meanwell LRS-100-36 Applications

l  Household appliances

l  Industrial Control System

l  Industrial Automation Machinery

l  Mechanical and electrical equipment

l  Electronic instruments, equipment and devices

LRS-100-36 Meanwell LRS-100-36 Price and datasheet ycict

Meanwell LRS-100-36 Mechanical Diagram

LRS-100-36 Meanwell LRS-100-36 Price and datasheet ycictLRS-100-36 Meanwell LRS-100-36 Price and datasheet ycict
