LPL-18-24
6.81

LPL-18-24

$6.81

Meanwell 18W Single Output Switching Power Supply with 24V0.75A0-0.75A18W150mVp-p±3.0%±1.0%±2.0%1500ms30ms/115VAC27.6-32.4V

- +
Availability:In stock
SKU Meanwell LPL-18-24
Brand Meanwell
Details

Meanwell LPL-18-24 is 18W Single Output Switching Power Supply with 24V0.75A0-0.75A18W150mVp-p±3.0%±1.0%±2.0%1500ms30ms/115VAC27.6-32.4V. The product accepts 90-132V AC input only, and the work efficiency reaches high up to 84%. Meanwhile, the fully encapsulated design enhances heat dissipation, making it operate from -30℃ through 70℃ under air convection with no fan. What’s more, LPL-18-24 delivers extremely low no load power consumption, and allows the end system to easily fit the worldwide energy requirement. Furthermore, the item is equipped with various protections like Short circuit, Overload, Over voltage and Over temperature. In light of its high reliability, good quality, and competitive price, Meanwell LPL-18-24 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, and so on

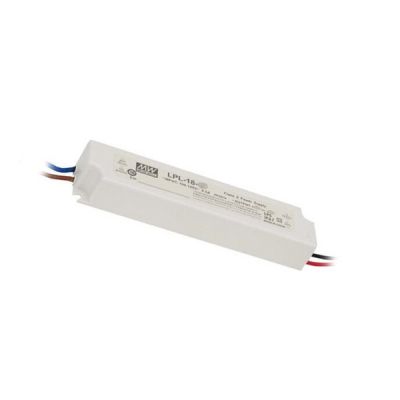

Meanwell LPL-18-24 price and specs Power Supply High reliability Low cost LPS pass LPL-18-12 LPL-18-24 LPL-18-36 YCICT

Meanwell LPL-18-24 Specifications

Model LPL-18-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 0.75A
CURRENT RANGE 0-0.75A
RATED POWER 18W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 1500ms, 30ms / 115VAC
HOLD UP TIME (Typ.) 20ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 132VAC 127 ~ 186VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 83.00%
AC CURRENT 0.5A/115VAC
INRUSH CURRENT(Typ.) COLD START 40A(twidth=200μs measured at 50% Ipeak) at 115VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 16 units (circuit breaker of type B) / 27 units (circuit breaker of type C) at 115VAC
LEAKAGE CURRENT 0.25mA / 115VAC
PROTECTION OVERLOAD Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 27.6-32.4V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Shut down, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -30~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS EAC TP TC 004,IP67 approved; design refer to UL1310 Class 2,TUV EN60950-1, EN61347-2-13, CAN/CSA C22.2 No. 223-M91
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55022 (CISPR22) Class B, FCC Part 15, EN61000-3-2 Class A, EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, EAC TP TC 020
Others MTBF 6901.7K hrs min. Telcordia SR-332 (Bellcore) ; 1171.8Khrs min. MIL-HDBK-217F (25)
DIMENSION 140*30*22(L*W*H)
PACKING 0.175Kg; 70pcs/13.3Kgs/0.71CUFT

Meanwell LPL-18-24 Features

l  High reliability/Low cost

l  2 years warranty

l  Pass LPS

l  90-132V AC input only

l  Cooling by free air convection

l  Class I power unit, no F G

l  100% full load burn-in test

l  Fully encapsulated with IP67 level

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Suitable for LED related fixture or appliance (such as L ED Decoration or Advertise ment devices)

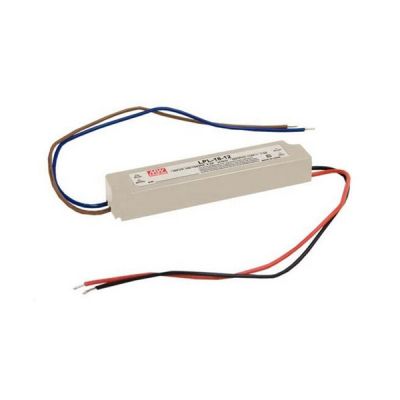

Meanwell LPL-18-24 price and specs Power Supply High reliability Low cost LPS pass LPL-18-12 LPL-18-24 LPL-18-36 YCICT

Meanwell LPL-18-24 Mechanical Diagram

Meanwell LPL-18-24 price and specs Power Supply High reliability Low cost LPS pass LPL-18-12 LPL-18-24 LPL-18-36 YCICT
