Meanwell 200W Quad Output power supply with PFC Function

- +
Availability:In stock
SKU Meanwell QP-200
Brand Meanwell
Details

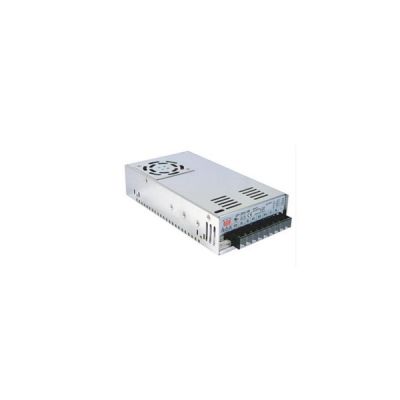

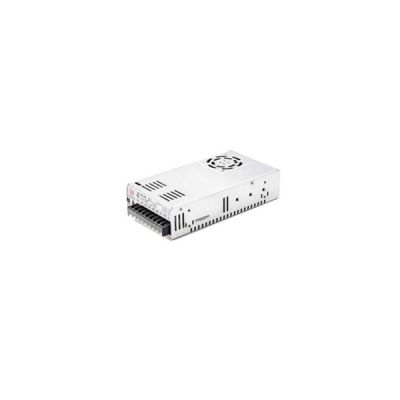

Meanwell QP-200 Series is AC/DC Enclosed Switching Power Supply. The entire is with Built-in active PFC function and Built-in remote sense function for CH1,2. In addition, they are equipped with complete protections such as short circuit, Overload, Over voltage and Over temperature.Thanks to forced air cooling by built-in DC fan, and 100% full load burn-in test, QP-200 can operate under low temperature with full load, at the same time, delivering an extremely low no load power consumption. Moreover, the series is complied with the international safety regulations and meet the worldwide energy requirements. In light of their high efficiency, long life and high reliability, Meanwell QP-200 Series serves as a high price-to-performance power supply solution for various applications.

Meanwell QP-200 Series Specifications

Meanwell QP-200 Series Specifications

Model QP-200D QP-200F
Output OUTPUT NUMBER CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH4
DC VOLTAGE 5V 12V 24V -12V 5V 15V 24V -15V
RATED CURRENT 15A 4A 3A 0.7A 15A 3A 3A 0.7A
CURRENT RANGE 3-20A 0-6A 0.4-5A 0-1A 3-20A 0-5A 0.4-5A 0-1A
RATED POWER 203.4W 202.5W
PEAK CURRENT 20A 7A 6A 1A 20A 6A 6A 1A
RIPPLE & NOISE (max.) mVp-p 100 150 150 150 100 150 150 150
VOLTAGE ADJ. RANGE CH1: 4.75 ~ 5.5V CH2: 11.4-13.2V CH1: 4.75-5.5V CH2: 3.14.25-16.5V
VOLTAGE TOLERANCE ±3% ±3% +10.-6% ±6% ±3% ±3% +10.-6% ±6%
LINE REGULATION ±1% ±1% ±2% ±1% ±1% ±1% ±2% ±1%
LOAD REGUL ATION ±2% ±2% ±6% ±2% ±2% ±2% ±6% ±2%
SETUP, RISE TIME 800ms, 50ms at full load
HOLD UP TIME (Typ.) 24ms at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 75% 75%
AC CURRENT (Typ.) 3.5A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.) COLD START 30A
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE CH1:5.75 ~ 6.75V CH2:13.8 ~ 16.2V CH1: 5.75 ~ 6.75V CH2:17.25 ~ 20.25V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE(OPTION Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0~50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
Others MTBF 160.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 215*115*50mm (L*W*H)
PACKING 1.2Kg; 12pcs/15.4Kg/0.9CUFT

Meanwell QP-200 Series Feature

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.95

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Forced air cooling by built-in DC fan

l  CH1,2 can be adjustable from -5~+1 0%

l  With power good and fail signal output(Optional)

l  Built-in remote sense function for CH1,2

l  1 00% full load burn-in test

l  CH4 can set to positive after consult us before delivery(Optional)

l  Fixed switching frequency at PFC:67KHz PWM:134KHz

l  3 years warranty

Meanwell QP-200 Series Feature

Meanwell QP-200 Series Mechanical Diagram
