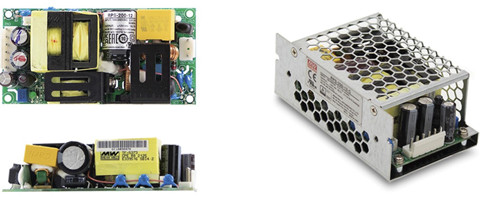

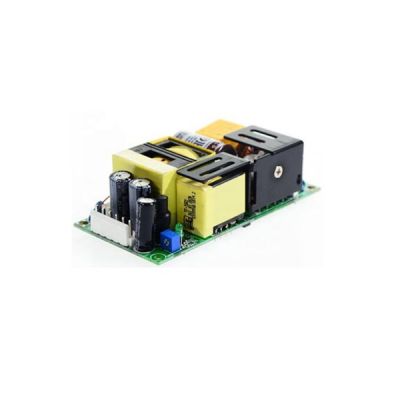

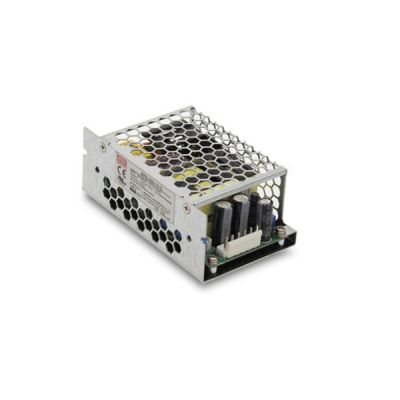

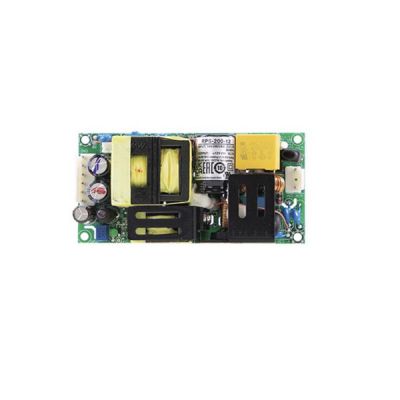

Meanwell RPS-200 Series is a 200W highly reliable green PCB type medical power supply. The entire series is designed with high power density 21.9W/in³ on 4" by 2" footprint. At the same time, it also accepts 80~264VAC input and offers various output voltages between 12V and 48V. What’s more, RPS-200 series features the high working efficiency up to 95%, extremely low no load power consumption down below 0.5W and operating altitude up to 5000 meters. Therefore, the series is able to be used for both ClassⅠ(with FG) and ClassⅡ(no FG) system design. Since thе ехtrеmеlу lоw lеаkаgе сurrеnt іѕ less than 130 uA, RPS-200 conforms to the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Apart from them, RPS-200 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its high lifespan, outstanding reliability, excellent quality, Meanwell RPS-200 Series is a very perfect solution for all kinds of BF rated patient contact medical system equipment.
Meanwell RPS-200 Series Encoding
| RPS | Series Name |
| 200 | Rated Wattage |
| 12 | Output Voltage |
| C | Type |
| Blank | PCB Type |
| C | Enclosed Casing Type |
Meanwell RPS-200 Series Model Specifications
| Model | RPS-200-12 | RPS-200-15 | RPS-200-24 | RPS-200-27 | RPS-200-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 27V | 48V | |
| CURRENT | 10CFM | 16.7A | 13.4A | 8.4A | 7.5A | 4.2A | |
| Convection | 11.7A | 9.4A | 5.9A | 5.3A | 3A | ||
| RATED POWER | 10CFM | 200.4W | 201W | 201.6W | 202.5W | 201.6W | |
| Convection | 140.4W | 141W | 141.6W | 143.1W | 144W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 25.6-28.4V | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 700ms, 30ms/230VAC 700ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>0.94/230VAC PF>0.98/115VAC at full load | ||||||
| EFFICIENCY (Typ.) | 93.00% | 93.50% | 94.00% | 94.00% | 95.00% | ||
| AC CURRENT (Typ.) | 2A/115VAC 1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||||||
| LEAKAGE CURRENT | Earth leakage current < 130 A/264VAC , Touch current < 40 A/264VAC | ||||||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.2-15.6V | 16.5-19.5V | 26.4-31.2V | 29.7-35V | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| FUNCTION | FAN SUPPLY | 12V@0.5A for driving a fan ; tolerance -15% ~ +10% at main output 40% rated current (10CFM) | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| OPERATING ALTITUDE | 5000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, TUV BS EN/EN60601-1, EAC TP TC 004,UL ANSI / AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design refer to BS EN/EN60335-1 | |||||
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | |||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class A (for Class II);Class B (for Class I) | |||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||
| OTHERS | MTBF | 2669.7K hrs min. Telcordia SR-332 (Bellcore) ; 500.3K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | PCB:101.6*50.8*29mm or 4″*2″*1.14″inch ; Enclosed type:103.4*62*40mm or 4.07″*2.44″*1.57″inch | ||||||
| PACKING | PCB:0.19Kg; 72pcs/14.7Kg/0.84CUFT ; Enclosed type:0.3Kg; 60pcs/19Kg/1.06CUFT | ||||||
Meanwell RPS-200 Series Features
l 4"x2" compact size
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
l Suitable for BF application with appropriate system consideration
l 140W convention, 200W force air
l EMI Conduction for Class B Radiation for Class B with FG (ClassⅠ) and Class A without FG (ClassⅡ)
l No load power consumption<0. 5W
l Extremely low leakage current
l 12V/0.5A fan supply
l Protections: Short circuit/Overload /Over voltage /Over temperature
l Lifetime > 65K hours
l Operating altitude up to 5000 meters
l 3 years warranty
Meanwell RPS-200 Series Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine

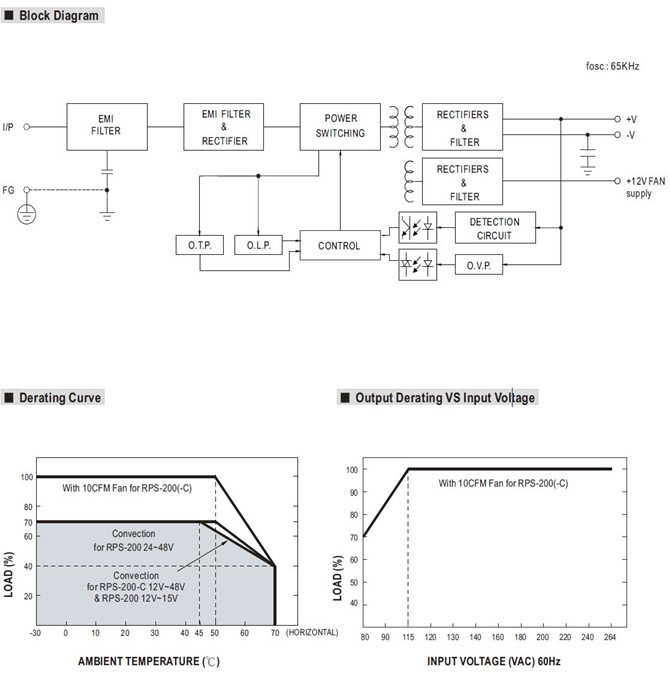

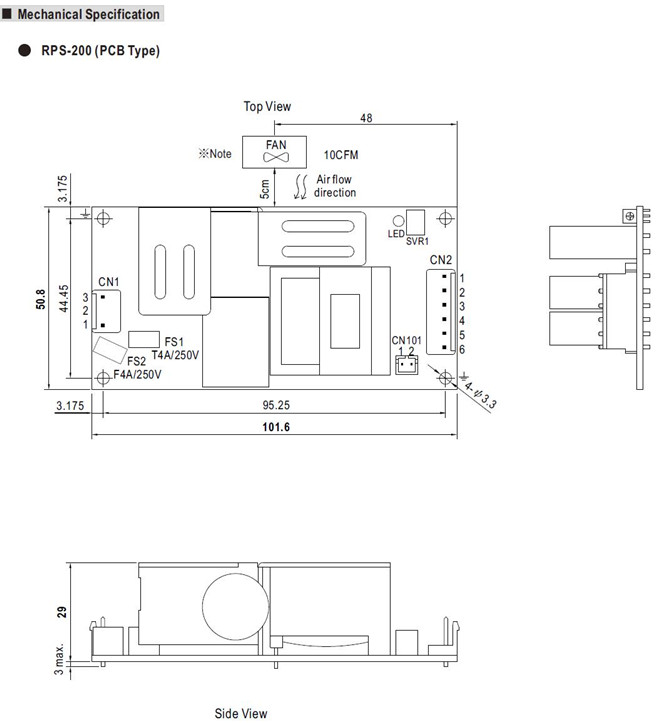

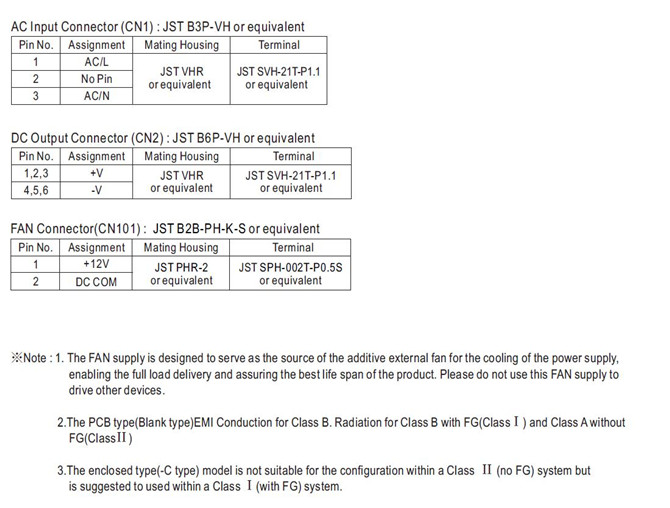

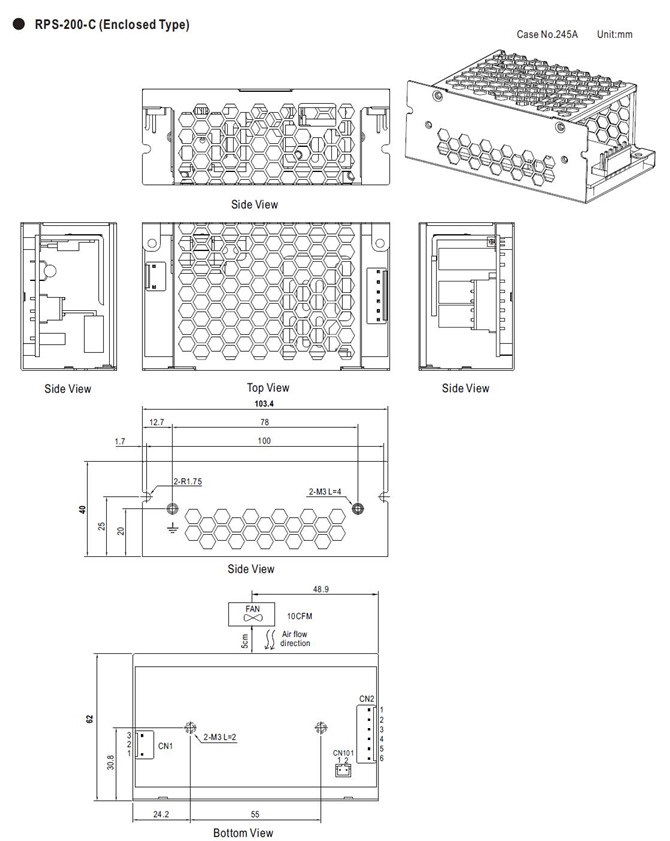

Meanwell RPS-200 Series Mechanical Diagram
