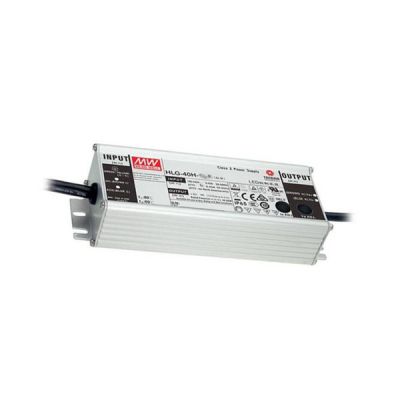

Meanwell 40W Constant Voltage and Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell HLG-40H
Brand Meanwell
Details

Meanwell HLG-40H Series is a 40W AC/DC L ED driver highlighting the dual mode constant voltage and constant current output. The entire series operates from 90 ~ 305 VAC and offers models with different rated voltage ranging between 12V and 54V. Since the efficiency reaches high up to 89.5%, and fanless design, HLG-40H is able to work for -40℃ ~ +80℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allow them to fit both indoor and outdoor applications. Additionally, HLG-40H is supplied with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent reliability, Meanwell HLG-40H Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.

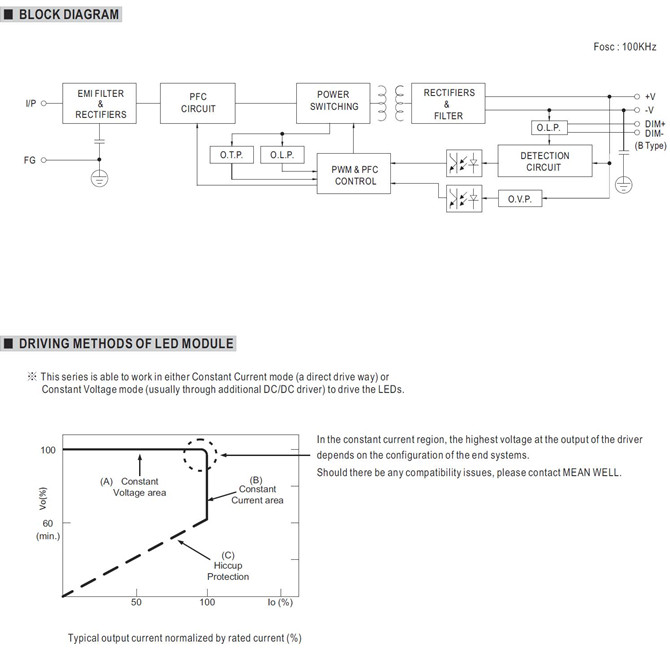

Meanwell HLG-40H Series Meanwell HLG-40H price and specs ac dc led driver 40 power supply ycict

Meanwell HLG-40H Series Encoding

HLG Series Name
40H Rated Wattage
36 Rate output voltage (12V/15V/20V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) In Stock
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-40H Series Model Specifications

Model HLG-40H- 12 HLG-40H-15 HLG-40H-20 HLG-40H-24 HLG-40H-30 HLG-40H-36 HLG-40H-42 HLG-40H-48 HLG-40H-54
OUTPUT DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION 7.2-12V 9-15V 12-20V 14.4-24V 18-30V 21.6-36V 25.2-42V 28.8-48V 32.4-54V
RATED CURRENT 3.33A 2.67A 2A 1.67A 1.34A 1.12A 0.96A 0.84A 0.75A
RATED POWER 39.96W 40.05W 40W 40.08W 40.2W 40.32W 40.32W 40.32W 40.5W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p 200mVp-p 300mVp-p 300mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
10.8-13.5V 13.5-17V 17-22V 22-27V 27-33V 33-40V 40-46V 44-53V 49-58V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
2-3.33A 1.6-2.67A 1.2-2A 1-1.67A 0.8-1.34A 0.67-1.12A 0.58-0.96A 0.5-0.84A 0.45-0.75A
VOLTAGE TOLERANCE ±2.5% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.) 16ms / 115VAC, 230VAC
Input VOLTAGE RANGE 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC)
EFFICIENCY (Typ.)  86.50% 86.50% 88.00% 88.00% 88.50% 88.50% 88.50% 89.50% 89.50%
AC CURRENT 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 50A(twidth=210 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15-21V 18-24V 23-30V 28-35V 35-43V 41-49V 48-58V 54-65V 59-68V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +80 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent ,
GB19510.1,GB19510.14,EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB-type), IP65 or IP67 approved ;
J61347-1,J61347-2-13 (except for B,AB and D-type) ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,
EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 171*61.5*36.8mm (L*W*H)
PACKING 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Meanwell HLG-40H Series Features

l  Constant Voltage and Constant Current mode output

l  Metal housing with class I design

l  Built-in active PFC function

l  Class 2 power unit

l  IP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming

l  Typical lifetime > 62000 hours

l  7 years warranty

Meanwell HLG-40H Series Features Meanwell HLG-40H Series series price and specs 40w ac dc led driver power supply ycict

Meanwell HLG-40H Series Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I, Division 2 hazardous (Classified) location

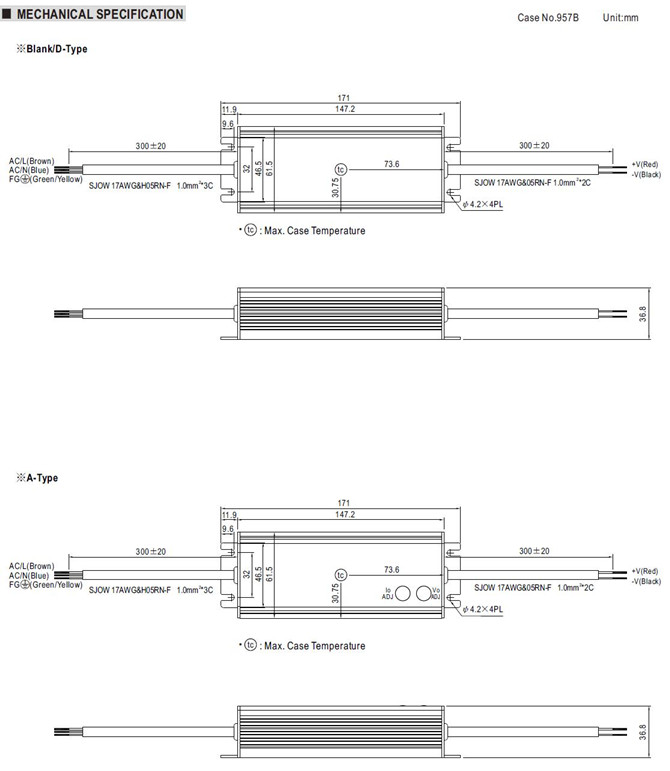

Meanwell HLG-40H Series Mechanical Diagram
