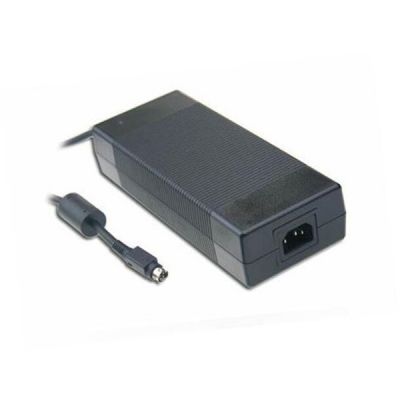

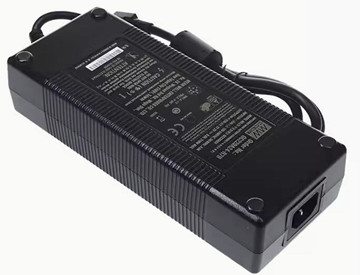

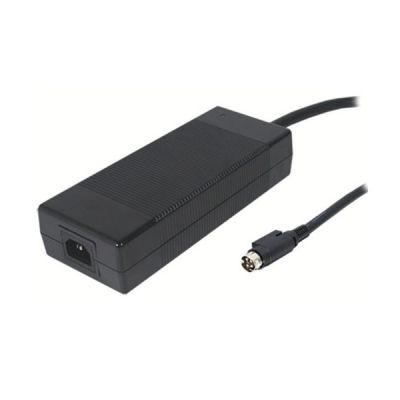

Meanwell 220W Single Output Battery Charger

- +
Availability:In stock
SKU Meanwell GC220
Brand Meanwell
Details

Meanwell GC220 Price and Datasheet 220W AC/DC Single Output Battery Charger 90~264VAC Class 1 plastic case PFC YCICT

Meanwell GC220 Series Model Specifications

ORDER NO. OUTPUT CONNECTOR SAFETY
GC220Axx-R7B (standard model) 4pin power din TUV/CB/FCC/CE/UKCA/EAC
GC220Axx-AD1 (standard model) Anderson connector  UL/TUV/CB/FCC/CE/UKCA/EAC
GC220Axx- xx=12,24,48 ; =R7B,AD1
Model GC220A12- GC220A24- GC220A48-
OUTPUT SAFETY MODEL NO GC220A12 GC220A24 GC220A48
DC VOLTAGE (Typ) 13.6V 27.2V 54.4V
RECOMMENDED BATTERY CAPACITY 80-200Ah 40-125Ah 20-65Ah
CONTINUOS OUTPUT CURRENT (Typ.) 13.5A 8A 4A
RATED POWER 183.6W 217.6W 217.6W
LED INDICATOR Charging(CC) : RED Floating charging(CV) : GREEN
INPUT VOLTAGE RANGE 90~264VAC 127~370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.90 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 89.00% 92.50% 93.00%
AC CURRENT (Typ.) 4A/115VAC 2A/230VAC
INRUSH CURRENT (max.) 120A/230VAC
LEAKAGE CURRENT(max.) 1.5mA/240VAC
PROTECTION OVERLOAD 90~110% rated output power
Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105~135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 95±10(TSW1) detect on heatsink of power transistor
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -30 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% / (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL1012 (for GC220Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, EAC TP TC 020
Others MTBF 1557.3K hrs min. Telcordia SR-332 (Bellcore) ; 170.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 210*85*46mm (L*W*H)
PACKING 1.1Kg; 12pcs/14.2Kg/0.73CUFT(GC220Axx-R7B) 1.2Kg; 12pcs/15.4Kg/1CUFT(GC220Axx-AD1)

Meanwell GC220 Series Features

l  Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)

l  2 stage charging characteristic

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.90

l  No load power consumption< 1 W

l  3 pole AC inlet IEC320-C14

l  Class I power (with earth pin)

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection

l  Fully enclosed plastic case

l  2 color LED indicator for charging status

l  Approvals: UL/TUV/EAC/CB/FCC/CE/UKCA

l  2 years warranty

Meanwell GC220 Price and Specs 220W AC/DC Single Output Battery Charger 90~264VAC Class 1 plastic case with PFC YCICT

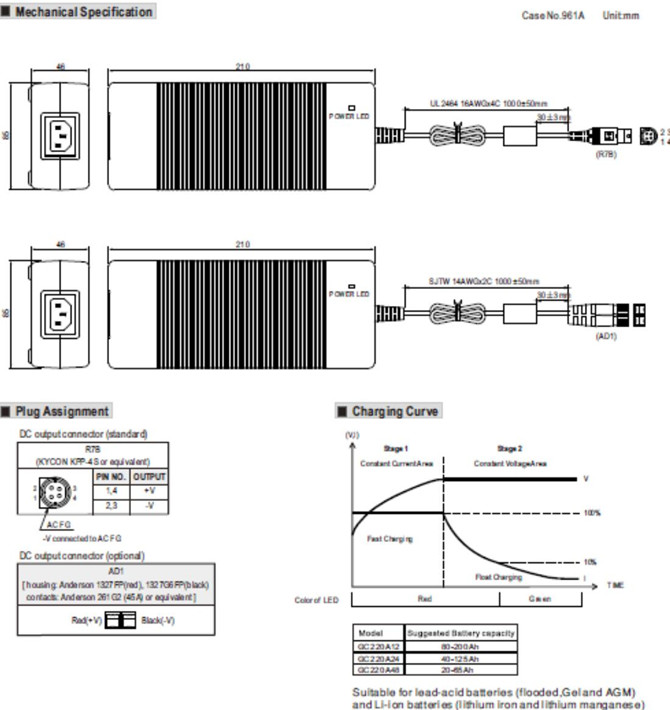

Meanwell GC220 Series Mechanical Diagram
