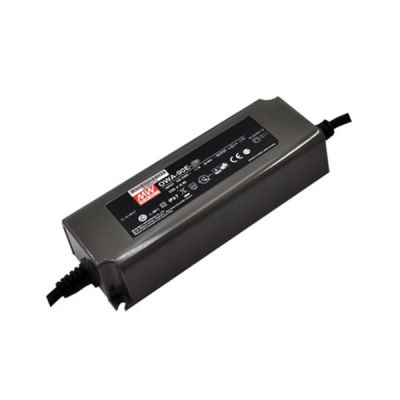

OWA-90E
29.01
Details
Meanwell OWA-90E Series is a 90W Single Output Moistureproof Adaptor. The fully-potted silicone inside the plastic enclosure enhances the heat dissipation. At the same time, it benefits that the OWA-90E is approved for IP67 level, so that this series specializes the applications in which the damp, humidity or dust resistance is needed for the external power supply. OWA-90E follows the latest energy efficiency demand, compliant with EU ErP and meets Code of Conduct (CoC) Version 5 (Except for 12V). The no load power consumption is less than 0.15W, and certified with EN 61558-2-1 6. Moreover, the compliance to EN 60335-1 for selected models can greatly simplify the system design such as household appliances. OWA-90E adopts the universal input range from 90VAC to 264VAC, and incorporates built-in PFC function. Additionally, the efficiency reaches high up to 91%, and cooled by free air convection. The working temperature ranges from -40℃ to +70℃. Considering its longevity, high efficiency and excellent reliability, Meanwell OWA-90E Series serves as an ideally suitable solution for various applications.
Meanwell OWA-90E Series Encoding
| OWA | Series Name |
| 90 | Output wattage |
| E | European type of AC plug |
| 12 | Output Voltage |
Meanwell OWA-90E Series Model Specifications
| ORDER NO. | OWA-90E-12 | OWA-90E-15 | OWA-90E-20 | OWA-90E-24 | OWA-90E-30 | OWA-90E-36 | OWA-90E-42 | OWA-90E-48 | OWA-90E-54 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| RATED CURRENT | 7.5A | 6A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.88A | 1.67A | |
| RATED POWER | 90W | 90W | 90W | 90W | 90W | 90W | 90.3W | 90.24W | 90.18W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | ±4.0% | ±4.0% | ±3.0% | ±3.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 80ms at 95% load 115VAC / 230VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms at full load 115VAC / 230VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.96/230VAC at full load | |||||||||
| EFFICIENCY (Typ.) | 89.00% | 90.00% | 90.00% | 90.00% | 90.00% | 91.00% | 91.00% | 91.00% | 91.00% | |
| AC CURRENT (Typ.) | 0.95A / 115VAC 0.5A / 230VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 60A(twidth=550 s measured at 50% Ipeak) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.25mA / 240VAC | |||||||||
| PROTECTION | OVERLOAD | 105 ~ 115% | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 15-17V | 17.5-21V | 23-27V | 28-34V | 34-40V | 41-46V | 46-54V | 54-60V | 59-66V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70℃ (Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | EN61558-1,-2-16 listed; EN60335-1 listed(except for OWA-90E-42,48,54); EAC TP TC 004,IP67 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN55014-1,EN61000-3-2,-3;EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN55014-2, light industry level (surge L- N : 2KV), EAC TP TC 020 | |||||||||
| Others | MTBF | 3044.3K hrs min. Telcordia SR-332 (Bellcore) 292.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 171*63*37.5mm | |||||||||
| PACKING | 0.92Kg; 16pcs/15.7Kg/1.01CUFT | |||||||||
Meanwell OWA-90E Series Features
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 91%
l No load power consumption<0.15W
l Energy efficiency Level VI
l Comply with EU ErP
l Meet CoC Version 5 (Except for 12V)
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Class II power unit, no FG
l Fanless design, cooling by free air convection
l 5 years warranty
Meanwell OWA-90E Series Applications
l Robotic lawn mower
l Household appliance
l Battery charging
l General electronic products in dusty or humid environment
Meanwell OWA-90E Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
