HLG-40H-36
42.11

HLG-40H-36

$42.11

Meanwell 40W Constant Voltage and Constant Current LED Driver with 36V21.6-36V1.12A40.32W200mVp-p33-40V0.67-1.12A±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLG-40H-36
Brand Meanwell
Details

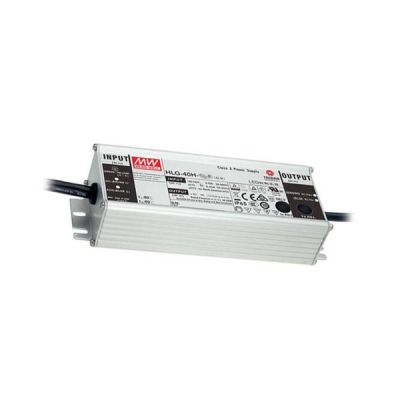

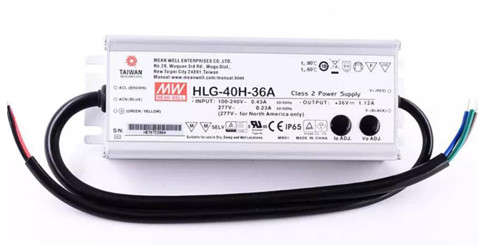

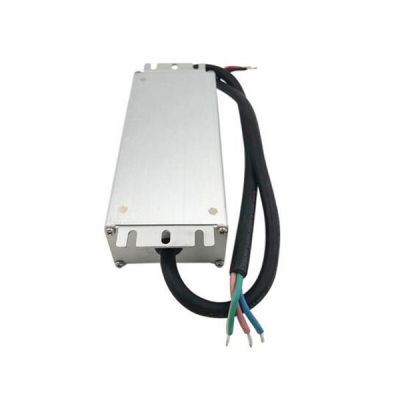

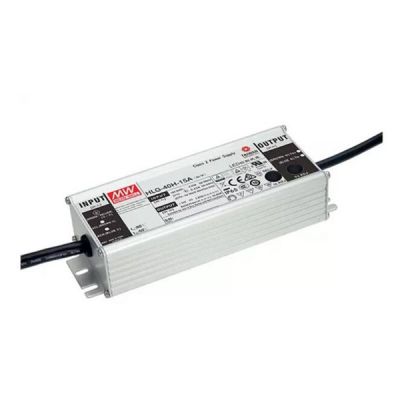

Meanwell HLG-40H-36 is a 40W AC/DC L ED driver with 36V21.6-36V1.12A40.32W200mVp-p33-40V0.67-1.12A±1.0%±0.5%±0.5%. The model has the dual mode constant voltage and constant current output. and operates from 90 ~ 305 VAC with the rated voltage 36V. Since the efficiency reaches high up to 89.5% and no fan design, HLG-40H-36 is able to work for -40℃ ~ +80℃ case temperature under free air convection. In addition, the metal housing design and IP67/IP65 ingress protection level permit the product to fit both indoor and outdoor applications. What’s more, the unit is supplied with various function options such as dimming methodologies.  Because of its longevity, high efficiency and excellent reliability, Meanwell HLG-40H-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

HLG-40H-36 meanwell HLG-40H-36 price and specs HLG-40H-36A HLG-40H-36B HLG-40H-36AB HLG-40H-36D YCICT

Meanwell HLG-40H-36 Encoding

HLG Series Name
40H Rated Wattage
36 Rate output voltage (12V/15V/20V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) In Stock
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-40H-36 Specifications

Model HLG-40H-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 21.6-36V
RATED CURRENT 1.12A
RATED POWER 40.32W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
33-40V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
0.67-1.12A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.) 16ms / 115VAC, 230VAC
Input VOLTAGE RANGE 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20% (at load>=60% / 115VAC,230VAC; at load>=75% / 277VAC)
EFFICIENCY (Typ.)  88.50%
AC CURRENT 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 50A(twidth=210 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-49V
Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +80 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08 , BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent ,
GB19510.1,GB19510.14,EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB-type), IP65 or IP67 approved ;
J61347-1,J61347-2-13 (except for B,AB and D-type) ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 3395.8K hrs min. Telcordia SR-332 (Bellcore) ; 345.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 171*61.5*36.8mm (L*W*H)
PACKING 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Meanwell HLG-40H-36 Features

l  Constant Voltage and Constant Current mode output

l  Metal housing with class I design

l  Built-in active PFC function

l  Class 2 power unit

l  Typical lifetime > 62000 hours

l  7 years warranty

l  IP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming

Meanwell HLG-40H-36 Features Meanwell HLG-40H-36 price and specs HLG-40H-36A HLG-40H-36B HLG-40H-36AB HLG-40H-36D YCICT

Meanwell HLG-40H-54 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I, Division 2 hazardous (Classified) location

Meanwell HLG-40H-54 Mechanical Diagram

Meanwell HLG-40H-54 Mechanical Diagram Meanwell HLG-40H-54 PRICE AND SPECS HLG-40H-36A HLG-40H-36B HLG-40H-36AB HLG-40H-36D YCICT

Meanwell HLG-40H-54 Diagram Meanwell HLG-40H-54 PRICE AND SPECS HLG-40H-36A HLG-40H-36B HLG-40H-36AB HLG-40H-36D YCICT
