LPH-18
6.69

LPH-18

As low as $6.69

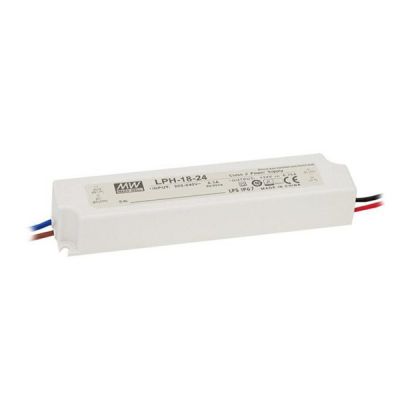

Meanwell 18W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell LPH-18
Brand Meanwell
Details

Meanwell LPH-18 Series is 18W Single Output Switching Power Supply. The entire series accepts 180-264V AC input only. Since its efficiency reaches high up to 83%, fully encapsulated design also enhances heat dissipation, and could operate from -30℃ through 70℃ under air convection with no fan. At the same time, LPH-18 delivers extremely low no load power consumption, and allows the end system to easily meet the worldwide energy requirement. Additionally, it is equipped with various protections like Short circuit, Overload, Over voltage and Over temperature. Considering its high reliability, excellent quality, and competitive price, Meanwell LPH-18 Series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, and so on

Meanwell LPH-18 price and datasheet Power Supply High reliability Low cost LPS pass LPH-18-12 LPH-18-24 LPH-18-36 YCICT

Meanwell LPH-18 Series Model Specifications

Model LPH-18-12 LPH-18-24 LPH-18-36
OUTPUT DC VOLTAGE 12V 24V 36V
RATED CURRENT 1.5A 0.75A 0.5A
CURRENT RANGE 0-1.5A 0-0.75A 0-0.5A
RATED POWER 18W 18W 18W
RIPPLE & NOISE (max.) 120mVp-p 150mVp-p 200mVp-p
VOLTAGE TOL ERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 1500ms, 30ms / 230VAC
HOLD UP TIME (Typ.) 50ms/230VAC at full load
Input VOLTAGE RANGE 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 77.00% 82.00% 83.00%
AC CURRENT 0.3A/230VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=155μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 17 units (circuit breaker of type B) / 28 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION OVERLOAD Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V 27.6-32.4V 41.4-48.6V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Hiccup mode, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -30~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC/BS EN/EN 62368-1, BIS IS15885(except for LPH-18-36), EAC TP TC 004, IP67 approved; design refer to UL1310 Class 2, CAN/CSA No. 223-M91
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
Others MTBF 7827.3K hrs min. Telcordia SR-332 (Bellcore) ; 1311.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 140*30*22(L*W*H)
PACKING 0.175Kg; 70pcs/13.3Kgs/0.71CUFT

Meanwell LPH-18 Series Features

l  180-264VAC input only

l  Fully encapsulated with IP67 level

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection

l  Class I power unit, no FG

l  Pass LPS

l  100% full load burn-in test

l  Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices) High reliability/Low cost

l  2 years warranty

Meanwell LPH-18 price and specs Power Supply High reliability Low cost LPS pass LPH-18-12 LPH-18-24 LPH-18-36 YCICT

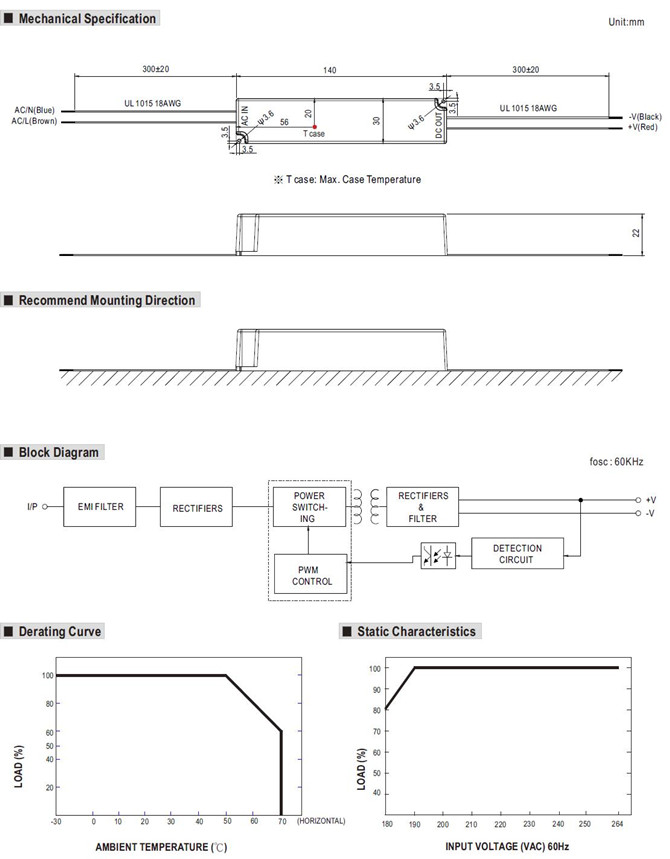

Meanwell LPH-18 Series Mechanical Diagram

Meanwell LPH-18 price and datasheet Power Supply High reliability Low cost LPS pass LPH-18-12 LPH-18-24 LPH-18-36 YCICT
