HEP-150-36
73.28
Details

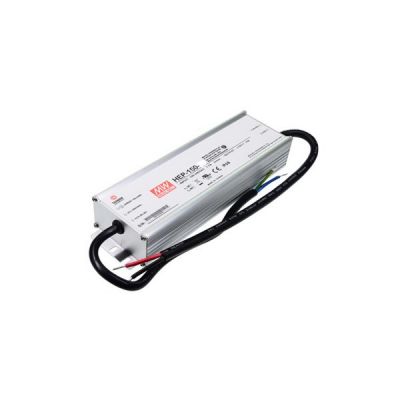

Meanwell HEP-150-36 is a 150W industrial AC/DC power supply with 36V4.2A151.2W200mVp-p33-40V2.5-4.2A±1.0%±0.5%±0.5%. The item it is housed with the aluminum case and fully potted with heat-conducted silicone, so it is able to meet 6KV surge immunity level, withstand 10G vibration test and operate up to 5000 meters. As to the state-of-the-art design, the working efficiency can reach up to 94%, enabling HEP-150-36 perfectly work between -55 ℃ and +70 ℃ under free air convection. What’s more, HEP-150-36 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. In view of its high reliability, excellent quality and long life, Meanwell HEP-150-36 is ideal to use for critical applications such as the highly humid, dusty, oily, and high-vibration harsh environments.
Meanwell HEP-150-36 Encoding
| HEP | Series Name | |
| 150 | Rated Wattage | |
| 36 | Output Voltage | |
| A | Function Mode Option | A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer. |
| Blank : Optional model, IP68, with fixed Vo and lo level. | ||
Meanwell HEP-150-36 Specifications
| Model | HEP-150-36 | |
| OUTPUT | DC VOLTAGE | 36V |
| RATED CURRENT | 4.2A | |
| RATED POWER | 151.2W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 33-40V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer for A type only | |
| 2.5-4.2A | ||
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms,50ms/115VAC 500ms,50ms/230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC (277VAC operational) 120~370VDC(390VDC operational) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load | |
| EFFICIENCY (Typ.) | 93.5% | |
| AC CURRENT (Typ.) | 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 65A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER LOAD | 105 ~ 125% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 41-46V | |
| Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -55 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -60 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004 approved ;Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV),criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 164.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 228*68*38.8mm (L*W*H) | |
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.8CUFT | |
Meanwell HEP-150-36 Features
l 6 years warranty
l Built-in active PFC function
l High efficiency up to 94%
l Withstand 10G vibration test
l Meet 6KV surge immunity level
l -55℃~+70℃ wide operating range
l Operating altitude up to 5000 meters
l IP65 design, optional IP68 rated model available
l Universal AC input / Full range (up to 305VAC)
l Fanless design, cooling by free air convection
l Aluminum case and filling with heat-conducted silicone
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HEP-150-36 Applications
l Petroleum plant or mine shaft facility
l Outdoor telecommunication equipment
l Outdoor electronic signage and billboard
Meanwell HEP-150-36 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
