HEP-150-54
71.28

HEP-150-54

$71.28

Meanwell 150W Switching Power Supply for Harsh Environment with 54V2.8A151.2W200mVp-p49-58V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HEP-150-54
Brand Meanwell
Details

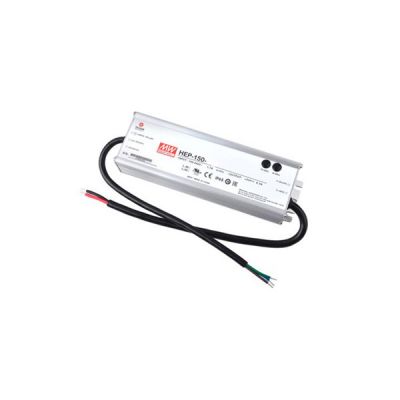

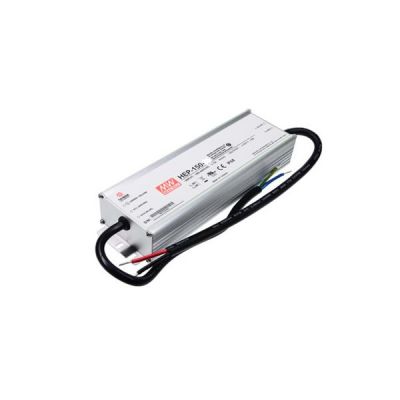

Meanwell HEP-150-54 is a 150W industrial AC/DC power supply with 54V2.8A151.2W200mVp-p49-58V1.68-2.8A±1.0%±0.5%±0.5%. It features the excellent capability to work under highly humid, dusty, oily, and high-vibration harsh environment. Since the product is housed with the aluminum case and fully potted with heat-conducted silicone, HEP-150-54 could meet 6KV surge immunity level, withstand 10G vibration test and operate up to 5000 meters. Furthermore, the item offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. As per the state-of-the-art design and Built-in active PFC function, the working efficiency reaches up to 94%, enabling HEP-150-54 perfectly work between -55 ℃ and +70 ℃ under free air convection. Because of its high reliability, excellent quality and long life, Meanwell HEP-150-54 is ideal to be used for critical conditions.Meanwell HEP-150-54 Specifications

Meanwell HEP-150-54 Encoding

HEP Series Name
150 Rated Wattage
12 Output Voltage
A Function Mode Option A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer.
Blank : Optional model, IP68, with fixed Vo and lo level.

Meanwell HEP-150-54 Specifications

Model HEP-150-54
OUTPUT DC VOLTAGE 54V
RATED CURRENT 2.8A
RATED POWER 151.2W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE 49-58V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer for A type only
1.68-2.8A
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1000ms,50ms/115VAC 500ms,50ms/230VAC at full load
HOLD UP TIME (Typ.) 16ms at full load 230VAC /115VAC
INPUT VOLTAGE RANGE 85~264VAC (277VAC operational) 120~370VDC(390VDC operational)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
EFFICIENCY (Typ.) 94.0%
AC CURRENT (Typ.) 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.) COLD START 65A at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER LOAD 105 ~ 125%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 59-65V
Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -55 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -60 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Note.6,9 UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004 approved ;Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV),criteria A, EAC TP TC 020
OTHERS MTBF 164.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 228*68*38.8mm (L*W*H)
PACKING 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Meanwell HEP-150-54 Features

l  6 years warranty

l  Built-in active PFC function

l  High efficiency up to 94%

l  Meet 6KV surge immunity level

l  Withstand 10G vibration test

l  -55℃~+70℃ wide operating range

l  Operating altitude up to 5000 meters

l  Universal AC input / Full range (up to 305VAC)

l  Fanless design, cooling by free air convection

l  Aluminum case and filling with heat-conducted silicone

l  IP65 design, optional IP68 rated model available

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell HEP-150-54 Features

Meanwell HEP-150-54 Applications

l  Petroleum plant or mine shaft facility

l  Outdoor telecommunication equipment

l  Outdoor electronic signage and billboard

Meanwell HEP-150-54 Applications

Meanwell HEP-150-54 Mechanical Diagram

Meanwell HEP-150-54 Mechanical DiagramMeanwell HEP-150-54 Mechanical Diagram
