GST25E28-P1J
14.53

GST25E28-P1J

$14.53

Meanwell 25W AC-DC Reliable Green Industrial Adaptor with 28V0.89A0-0.89A25W150mVp-p±2.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell GST25E28-P1J
Brand Meanwell
Details

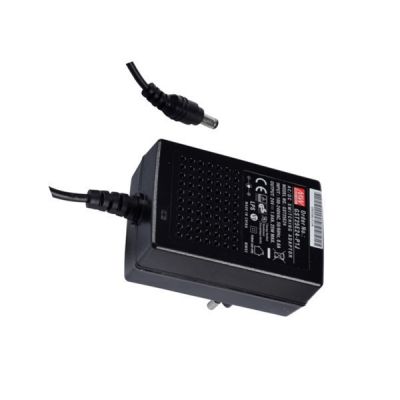

Meanwell GST25E28 is a 25W AC-DC Green Industrial Adaptor with 28V0.89A0-0.89A25W150mVp-p. The product outstands single-output, wall-mounted style and high reliability. It is a class II power unit (no FG) with a 2-Pin standard European AC power plug. At the same time, GST25E28 adopts the input range from 85VAC to 264VAC with output voltage 28VDC. So that it is able to satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST25E28 is compliant with EU ErP, and Code of Conduct (CoC) Version 5. The supreme feature permits the adaptor to save energy when it is either under operating mode or standby mode. Additionally, the unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GST25E28 is certified for the international safety regulations as well. Thanks to its high safety, high quality and high performance, Meanwell GST25E28 serves as an ideal power supply solution for various types of consumer electronic devices.

Meanwell GST25E28 Price and Specs 25W AC-DC Green Industrial Adaptor GST25E05 07 09 12 15 18 24 28 48 LPS 28V YCICT

Meanwell GST25E28-P1J Encoding

GST Series Name
25 Rated Wattage
E European 2 pin AC Plug
28 Output Voltage
P1J  Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST25E28-P1J Specifications

ORDER NO. GST25E28-P1J
OUTPUT SAFETY MODEL NO. GST25E28
DC VOLTAGE 28V
RATED CURRENT 0.89A
CURRENT RANGE 0-0.89A
RATED POWER 25W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 88.00%
AC CURRENT 0.6A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 202.5g; 60pcs/13.2Kg/1.15CUFT

Meanwell GST25E28-P1J Features

l  Global certificates

l  Pass LPS

l  Universal AC input/Full range

l  2 pole EURO plug, ClassⅡpower unit

l  No load power consumption< 0.075W

l  ·Energy efficiency Level VI

l  Comply with EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  -30~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

Meanwell GST25E28 Price and Specs 25W AC-DC Green Industrial Adaptor GST25E05 07 09 12 15 18 24 28 48 LPS 28V YCICT

Meanwell GST25E28-P1J Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

Meanwell GST25E28 Price and Specs 25W AC-DC Green Industrial Adaptor GST25E05 07 09 12 15 18 24 28 48 28V 0.89A YCICT

Meanwell GST25E28-P1J Mechanical Diagram

Meanwell GST25E28 Price and Datasheet 25W AC-DC Green Industrial Adaptor GST25E05 07 09 12 15 18 24 28 48 28V LPS YCICT
