ERS-1400
528.57
Details

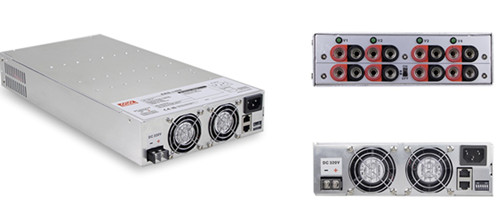

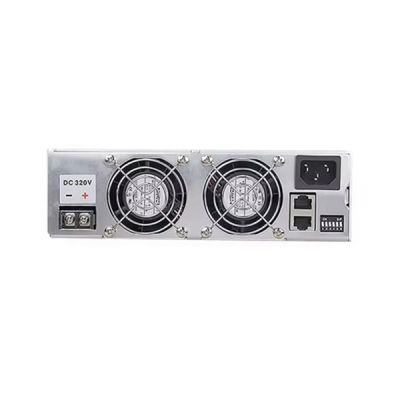

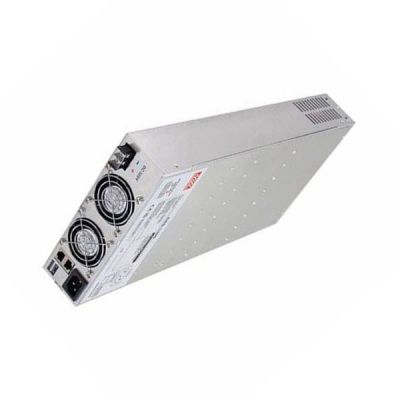

Meanwell ERS-1400 Series is an DC energy recycling power unit, which supports 1400W rated input. At the same time, the product can achieve high efficiency up to 91%. CC and CV/CP modes selectable and 4 input channels design that could be used independently or connected in series or parallel offer flexible combinations for various applications. Moreover, the system also provides remote control and monitoring functions by using CMU2A or the CANBus protocol for data analysis and remote monitor. In addition, ERS-1400 supports 10~60VDC input voltage, and ERS-1400H supports 60~380VDC input voltage.
Meanwell ERS-1400 Series Encoding
| ERS | Series Name |
| 1400 | Input Wattage |
| H | DC Input Range ( Blank: 10-60 VDC. H: 60-380VDC) |
Meanwell ERS-1400 Series Model Specifications
| Model | ERS-1400 | ERS-1400H | |
| DC INPUT | RATED INPUT POWER (Typ.) | 1200 ~ 1440W (for input 10 ~ 12VDC) 1440W (for input 12 ~ 60VDC) |
864 ~ 1440W (for input 60 ~ 100VDC) 1440W (for input 100 ~ 380VDC) |
| INPUT VOLTAGE RANGE | 10 ~ 60VDC | 60 ~ 380VDC | |
| RATED INPUT CURRENT (Typ.) | 30A*4CH | 3.6A*4CH | |
| EFFICIENCY (Typ.) | 91% at 48V input | 90% at 380V input | |
| DC OUTPUT | VOLTAGE | 320VDC | |
| VOLTAGE TOLERANCE | ±2% | ||
| RIPPLE & NOISE (max.) | 4V | ||
| OUTPUT CURRENT (max.) | 6.3A | ||
| ENERGY RECYCLING RATIO (Typ.) | 85%at48VDC input/1440W (power supply efficiency>=95%) | 85%at380VDC input/1440W (power supply efficiency>=96%) | |
| AC INPUT | VOLTAGE RANGE | 180 ~ 264VAC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | 0.97/230VAC | ||
| INRUSH CURRENT (Typ.) | 50A /230VAC | ||
| PROTECTION | OVER TEMPERATURE | Shuts down DC output voltage, reset after fault condition removed | |
| DC INPUT OVER VOLTAGE | Shuts down DC output voltage, reset after fault condition removed | ||
| DC INPUT UNDER VOLTAGE | Shuts down DC output voltage, reset after fault condition removed | ||
| COMMUNICATION ERROR | Shuts down AC output voltage after communication is failed for 4s. Reset after communication is re-built | ||
| OVER POWER | Constant power limiting at MAX input power | ||
| FUNCTION | COMMUNICATION INTERFACE | CANBus, Baud Rate 250k bps (Maximum 64 units ERS-1400 series) | |
| CC/CV/CP MODE SELECT | CONSTANT CURRENT (CC) : 0.5~30A(±1%) / per. Channel | CONSTANT CURRENT (CC) : 0.5~3.6A(±1%) / per. channel | |
| ----- | CONSTANT VOLTAGE (CV) : 60~380VDC (±10V) | ||
| CONSTANT POWER (CP) : 5~360W (±5%) / per. Channel | ----- | ||
| PARALLEL | Please refer to function manual and user manual for more detail | ||
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ | |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||
| SAFETY&EMC | SAFETY STANDARDS | BS EN/EN62368-1 approved | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A | ||
| Others | MTBF | ERS-1400: 260.3K hrs min. Telcordia SR-332 (Bellcore) ; 29.4K hrs min. MIL-HDBK-217F (25℃) ERS-1400H: 2 64.2K hrs min. Telcordia SR-332 (Bellcore) ; 27.7K hrs min. MIL-HDBK-217F (25℃) |
|
| COOLING | Internal fan cooling | ||
| DIMENSION | 450*213*63.5mm(L*W*H) | ||
| PACKING | 5.76Kg; 2pcs/12.5Kg/1.68CUFT | ||
Meanwell ERS-1400 Series Features
l Wide input voltage range 10~60VDC 160~380VDC by models
l High efficiency up to 91%
l Modular design for flexible configuration
l Flexible CC/CV/CP operation modes
l Remote control and monitoring by CANBus protocol via CMU2A control console
l Maximum 64 units ERS-1400 series that can be connected
l Protections: Over voltage/Under voltage/Over temperature/Communication error
l 5 years warranty
Meanwell ERS-1400 Series Applications
l Battery test or power supply aging system
l Energy recycling system
l Connector mechanical test

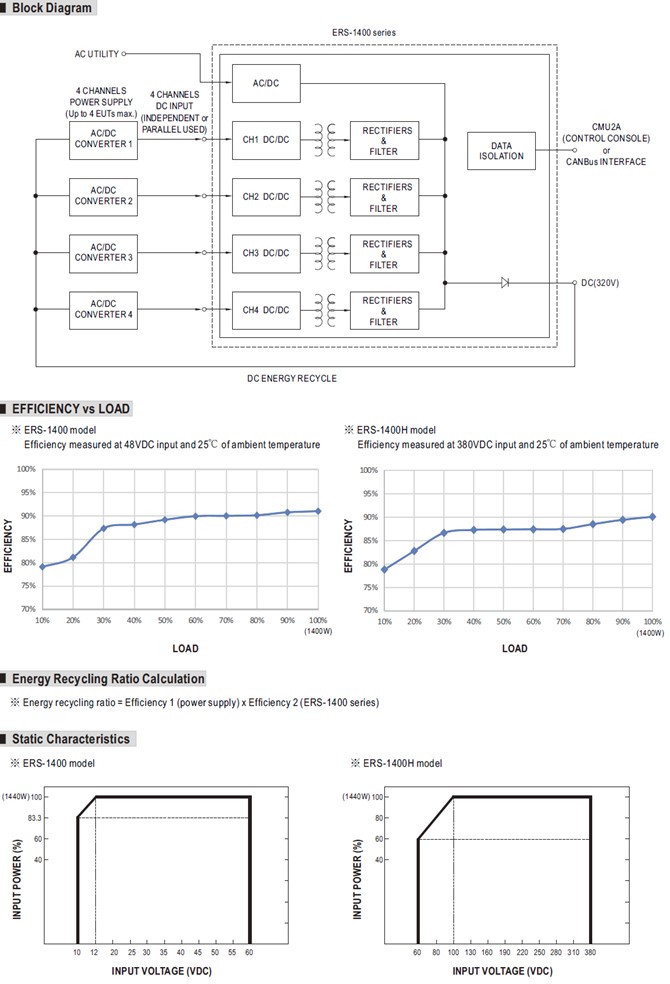

Meanwell ERS-1400 Series Mechanical Diagram
Meanwell ERS-1400 Series Mechanical Diagram
