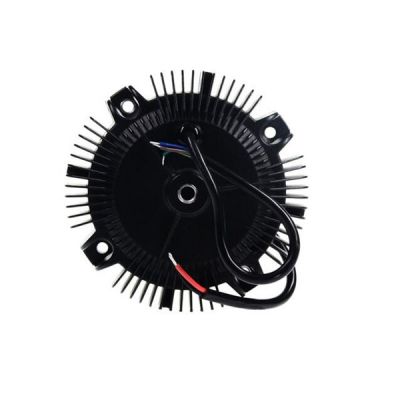

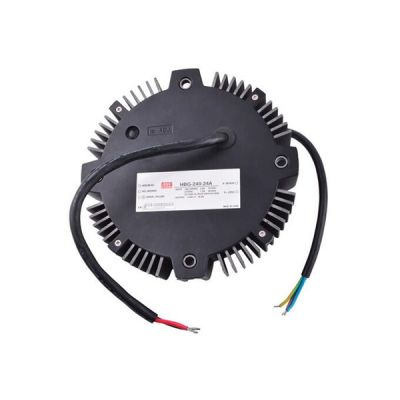

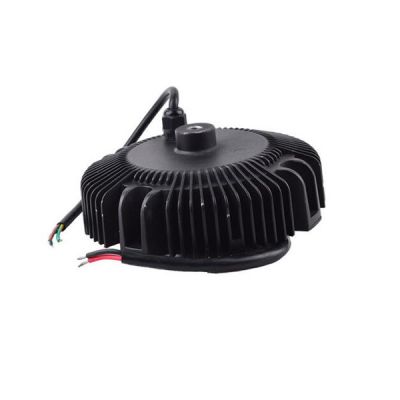

HBG-240
59.13
Details
Meanwell HBG-240 Series is a 240W AC/DC LED driver highlighting the circular shape design. The entire series operates from 90 ~305VAC. At the same time, it offers the dual modes constant voltage and constant current output models with different rated voltage between 24Vand 60V. Since the efficiency reaches high up to 93.5% with the fanless design, Meanwell HBG-240 is able to work for -40℃ ~ +75℃ case temperature under free air convection. Additionally, the design of metal housing and IP67/IP65 ingress protection level allow them to meet with both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent quality, Meanwell HBG-240 Series is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HBG-240 Series Encoding
| HBG | Series Name |
| 240 | Rated Wattage |
| 36 | Rated Output Voltage (24V/36/48/60V) |
| A | Function Mode Option |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function(1~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer with 3 in 1 dimming function | In stock |
| DA | IP67 | DALI control technology | In stock |
Meanwell HBG-240 Series Model Specifications
| Model | HBG-240-24 □ | HBG-240-36 □ | HBG-240-48 □ | HBG-240-60 □ | |
| OUTPUT | DC VOLTAGE | 24V | 36V | 48V | 60V |
| CONSTANT CURRENT REGION | 14.4-24V | 21.6-36V | 28.8-48V | 36-60V | |
| CONSTANT CURRENT REGION (for DA Type only) |
16.8-24V | 25.2-36V | 33.6-48V | 42-60V | |
| RATED CURRENT | 10A | 6.7A | 5A | 4A | |
| RATED POWER | 240W | 240W | 240W | 240W | |
| RIPPLE & NOISE (max.) | 150Vp-p | 250Vp-p | 250Vp-p | 350Vp-p | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type (via built-in potentiometer) | ||||
| 6-10A | 4-6.7A | 3-5A | 2.4-4A | ||
| VOLTAGE TOLERANCE | ±2.0% | ||||
| LINE REGULATION | ±0.5% | ||||
| LOAD REGULATION | ±0.5% | ||||
| SETUP, RISE TIME | 500ms,120ms /230VAC 2500ms,120ms /115VAC | ||||
| HOLD UP TIME (Typ.) | 15ms /115VAC, 230VAC | ||||
| Input | VOLTAGE RANGE | 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load | ||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC,230VAC; at load>=80%/277VAC) | ||||
| EFFICIENCY (Typ.) | 92.50% | 92.50% | 93.00% | 93.50% | |
| AC CURRENT | 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC | ||||
| INRUSH CURRENT (Typ. ) | COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | ||||
| NO LOAD / STANDBY POWER CONSUMPTION |
Standby power consumption <0.5W for B/AB/DA-Type Blank/A-Type please refer to Note.9 |
||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||
| Constant current limiting, recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 27-34V | 43-52V | 52-63V | 62-85V | |
| Shut down and latch off o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +75℃(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||
| MAX. CASE TEMP. | Tcase=+75℃ | ||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.1,GB19510.14, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 or IP67 approved | |||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=75%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV), EAC TP TC 020 | ||||
| Others | MTBF | 1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | ψ191.5mm *69mm (D * H) | ||||
| PACKING | 2.1Kg; 8pcs/18.3Kg/2.09CUFT | ||||
Meanwell HBG-240 Series Features
l Constant Voltage+ Constant Current mode output
l Circular metal housing with class I design
l Built-in active PFC function
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; DALI
l Typical lifetime>50000 hours
l 5 years warranty
l Suitable for LED high/low bay lighting, stage lighting and spot lighting
Meanwell HBG-240 Series Applications
l LED bay lighting
l LED stage lighting
l LED spot lighting

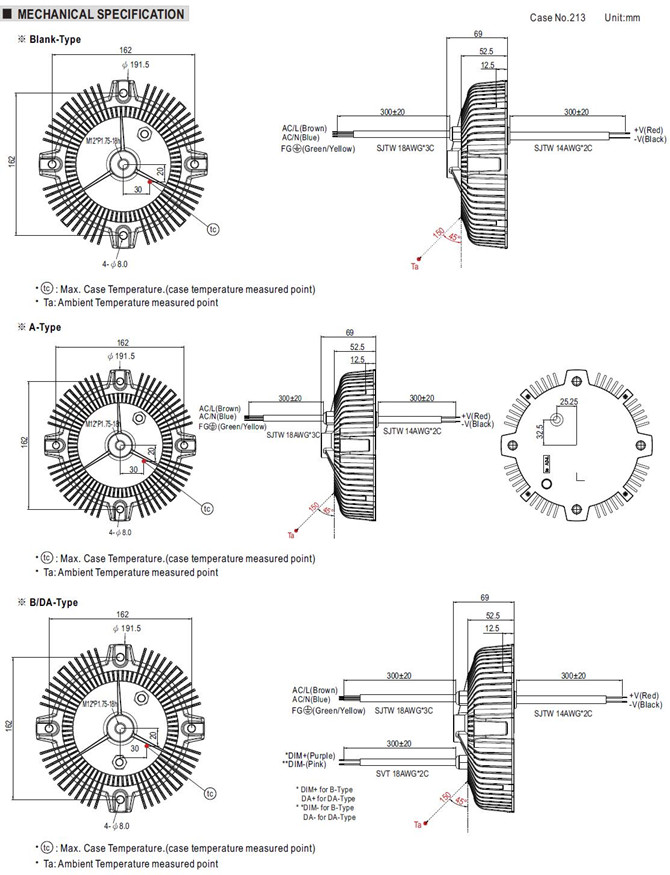

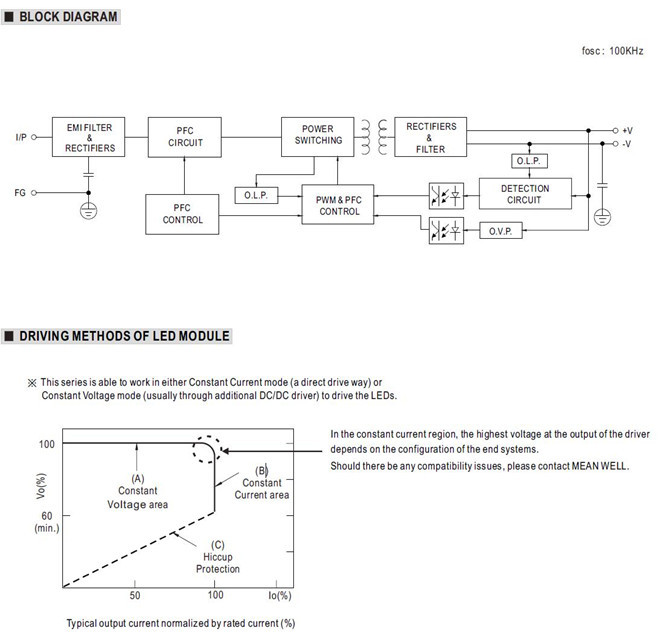

Meanwell HBG-240 Series Mechanical Diagram
