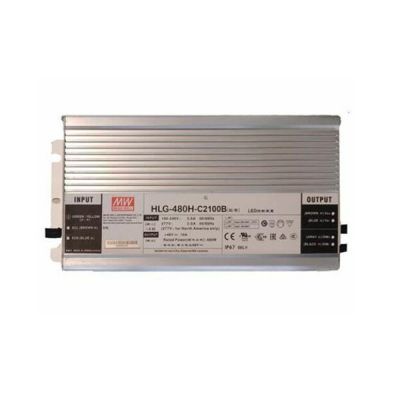

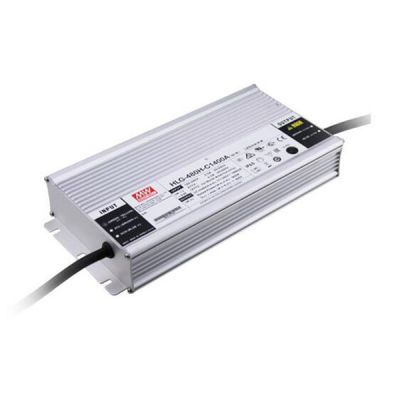

HLG-480H-C
95.13
Details
Meanwell HLG-480H-C Series is a 480W LED AC/DC driver highlighting constant current mode and high voltage output. At the same time, the entire series could operate from 90~305V AC and offer models with different rated current ranging between 1400mA and 3500mA. Since the efficiency reaches high up to 95% via no fan design, HLG-480H-C is able to work for -40C ~ +90C case temperature under free air convection. In addition, the metal housing design and IP67/IP 65 ingress protection level allow them to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability permit the series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent reliability, Meanwell HLG-480H-C Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-480H-C Series Encoding
| HLG | Series Name |
| 480 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C1400 | Rated output current (1400mA/1750mA/2100mA/2800mA/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. And environment adaptiveness | In stock |
| B | IP67 | 3 in 1 dimming function (O~ 10Vdc, 10V PWM signal and resistance) and environment adaptiveness | In stock |
| AB | IP65 | lo adjusta ble through built-in potentiometer & 3 in 1 dimming function (O~10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. And environment adaptiveness | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. And environment adaptiveness | In Stock |
Meanwell HLG-480H-C Series Model Specifications
| Model | HLG-480H-C1400 □ | HLG-480H-C1750 □ | HLG-480H-C2100 □ | HLG-480H-C2800 □ | HLG-480H-C3500 □ | |
| OUTPUT | RATED CURRENT | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA |
| RATED POWER | 480W | 480W | 481W | 479W | 480W | |
| CONSTANT CURRENT REGION | 171-343V | 137-274V | 114-229V | 85-171V | 68-137V | |
| OPEN CIRCUIT VOLTAGE (max.) | 420V | 340V | 280V | 210V | 170V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 700-1400mA | 875-1750mA | 1050-2100mA | 1400-2800mA | 1750-3500mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |||||
| CURRENT TOLERANCE | ±5% | |||||
| SET UP TIME | 500ms/115VAC,230VAC | |||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.97/230VAC, PF>0.95/277VAC at full load | |||||
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=40% /115VAC, 230VAC, 277VAC) | |||||
| EFFICIENCY (Typ.) | 95.00% | 95.00% | 95.00% | 95.00% | 95.00% | |
| AC CURRENT (Typ.) | 5A / 115VAC 2.45A / 230VAC 2A / 277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=1800 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC | |||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
| PROTECTION | SHORT CIRCUIT | Constant current, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 432 ~ 473V | 345-382V | 289-322V | 215-246V | 173-197V | |
| Shut down output voltage, re-power on to recovery | ||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | ||||
| MAX. CASE TEMP | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.02%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14,GB19510.1; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%); BS EN/EN61000-3-3; GB17743, GB17625.1, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||
| Others | MTBF | 1350.9K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 262*125*43.8mm (L*W*H) | |||||
| PACKING | 2.8Kg;4pcs/12.2Kg/0.55CUFT | |||||
Meanwell HLG-480H-C Series Features
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Environment-adaptive driving capability
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off, isolated design); Smart timer dimming; Low temperature light-on; Junction box
l Typical lifetime>62000 hours
l 7 years warranty
Meanwell HLG-480H-C Series Applications
l LED Harbour
l LED greenhouse lighting
l LED statium lighting
l LED mining lighting
l Type "HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-480H-C Series Mechanical Diagram
