EPS-65-3.3
13.52

EPS-65-3.3

$13.52

Meanwell 65W Single Output Switching Power Supply with 3.3V11A0-12A36.3W39.6W80mVp-p3.1-3.6V±3.0%±0.5%±2.0%

- +
Availability:In stock
SKU Meanwell EPS-65-3.3
Brand Meanwell
Details

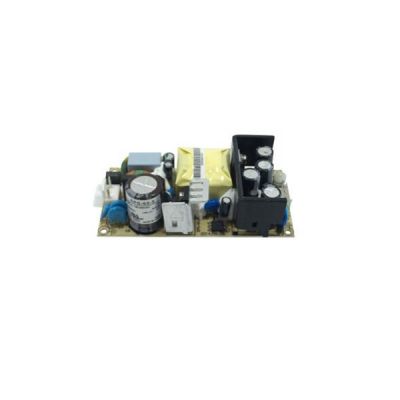

Meanwell EPS-65-3.3 is a 65W Single Output Switching Power Supply with 3.3V11A0-12A36.3W39.6W80mVp-p3.1-3.6V. it has high-power density on the 4" by 2" footprint (Optional L-Bracket and cover). Since the item is designed in compact size and low profile, it offers printed circuit board architecture for direct mounting to the system chassis. Meanwhile, EPS-65-3.3 accepts 80~264VAC input and provides various output voltages between 3.3V and 48V. With the high working efficiency up to 90% and the extremely low no load power consumption<0.3W. It is able to be used for ClassⅡ(no FG) system design. Additionally, EPS-65-3.3 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Apart from them, the model is equipped with various protection types such as Short circuit, Overload and Over voltage. Thanks to its high efficiency, low cost and longevity, Meanwell EPS-65-3.3 is a high price-to-performance power supply solution for various industrial applications such as factory automation, electrical or mechanical equipment.

Meanwell EPS-65-3.3 Specifications

Meanwell EPS-65-3.3 Specifications

EPS-65

Model EPS-65-3.3
OUTPUT DC VOLTAGE 3.3V
RATED CURRENT 11A
CURRENT RANGE 0-12A
RATED POWER 36.3W
PEAK LOAD (10sec.) 39.6W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE ADJ. RANGE 3.1-3.6V
VOLTAGE TOL ERANCE  ±3.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±2.0%
SETUP, RISE TIME 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT (Typ.) 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVERL OAD 115 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.7-4.45V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT OPERATING ALTITUDE 4000 meters
WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to /EN55032 (CISPR32) Class B, /EN61000-3-2,-3, BS EN BS EN EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A,EAC TP TC 020
OTHERS MTBF 563Khrs min. MIL-HDBK-217F (25)
DIMENSION PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
PACKING PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT

Meanwell EPS-65-3.3 Features

l  3 years warranty

l  4"X 2" compact size

l  LED indicator for power on

l  No load power consumption<0.3 W

l  Operating altitude up to 4000 meters

l  Universal AC input/ Full range

l  Optional L- Bracket and cover

l  High efficiency up to 90%

l  Protections: Short circuit/Overload /Over voltage

l  Cooling by free air convection

Meanwell EPS-65-3.3 Features

Meanwell EPS-65-3.3 Mechanical Diagram

Meanwell EPS-65-3.3 Mechanical DiagramMeanwell EPS-65-3.3 Mechanical Diagram
