HLP-60H
21.51

HLP-60H

As low as $21.51

Meanwell 60W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell HLP-60H
Brand Meanwell
Details

Meanwell HLP-60H Series is 60W Single Output Switching Power Supply featuring universal AC input/Full range (up to 305VAC). The entire series accepts 90~305VAC input and offers various output voltages between 15V and 54V. With the efficiency reaching high up to 90.5% and the extremely low no load power consumption. It is able to operate under -40 ~ +70℃ just using free air convection. Moreover, HLP-60H is equipped with various protections such as Short circuit, Over current, Over voltage and Over temperature. Considering its long lifetime, high efficiency, and excellent quality, Meanwell HLP-60H Series is ideal for applications like LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.

Meanwell HLP-60 Price and Specs 60W Single Output Switching Power Supply Universal AC input/Full range Built-in active PFC function 90~305VAC 127~431VDCYCICT

Meanwell HLP-60H Series Model Specifications

Model HLP-60H-15 HLP-60H-20 HLP-60H-24 HLP-60H-30 HLP-60H-36 HLP-60H-42 HLP-60H-48 HLP-60H-54
OUTPUT DC VOLTAGE 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION 9-15V 12-20V 14.4-24V 18-30V 21.6-36V 25.2-42V 28.8-48V 32.4-54V
RATED CURRENT 4A 3A 2.5A 2A 1.7A 1.45A 1.3A 1.15A
RATED POWER 60W 60W 60W 60W 61.2W 60.9W 62.4W 62.1W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 300mVp-p 300mVp-p 300mVp-p
VOLTAGE ADJ. RANGE 13.5-17V 17-22V 22-27V 27-33V 33-40V 40-46V 44-53V 49-58V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer
2.4-4A 1.8-3A 1.5-2.5A 1.2-2A 1-1.7A 0.87-1.45A 0.78-1.3A 0.69-1.15A
VOLTAGE TOLERANCE ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
SETUP TIME 500ms, 80ms at full load 230VAC / 115VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>= 75% at 277VAC input
EFFICIENCY (Typ.) 88.00% 89.00% 89.50% 90.00% 90.00% 90.00% 90.50% 90.5
AC CURRENT (Typ.) 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.) COLD START 55A (twidth=265μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 18-24V 23-30V 28-35V 35-43V 41-49V 48-58V 54-65V 59-68V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=60% load) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020
Others MTBF 3130.5K hrs min. Telcordia SR-332(Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 147*53*27mm (L*W*H)
PACKING 0.2Kg;72pcs/15.4Kg/1.01CUFT

Meanwell HLP-60H Series Features

l  Universal AC input/Full range (up to 305VAC)

l  Built-in active PFC function

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Cooling by free air convection

l  Output constant current level adjustable

l  Class 2 power unit

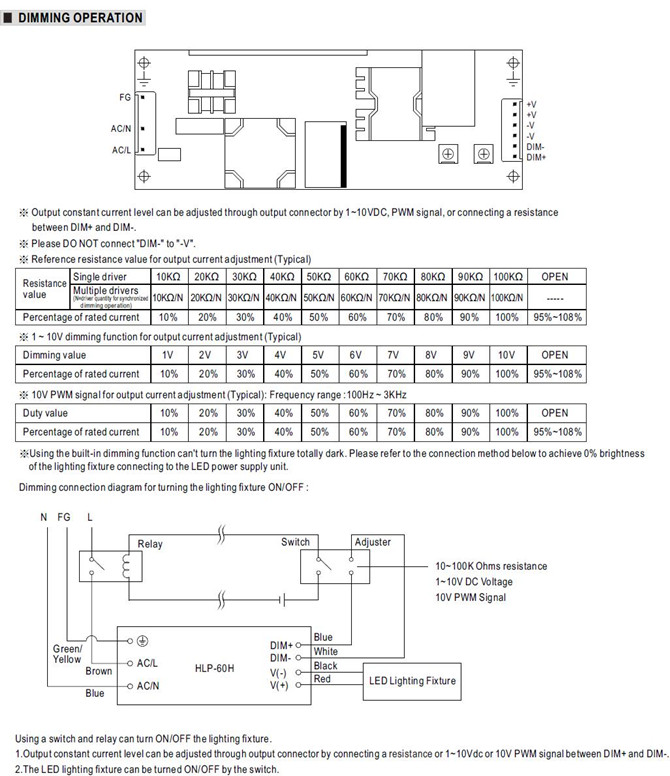

l  Three in one dimming function (1~10Vdc or PWM signal or resistance)

l  Suitable for built in LED lighting system

l  Suitable for dry/damp locations

l  100% full load burn-in test

l  3 years warranty

Meanwell HLP-60H Price and specs 60W Single Output Switching Power Supply Built-in active PFC function Class 2 YCICT

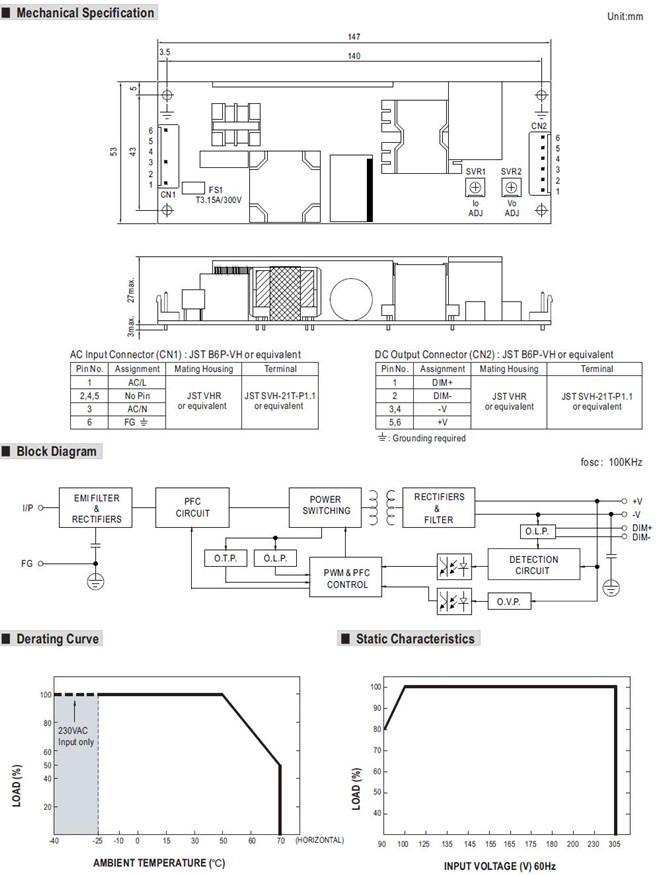

Meanwell HLP-60H Series Mechanical Diagram

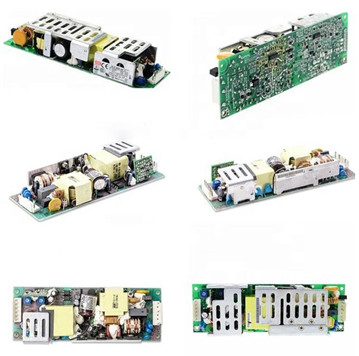

Meanwell HLP-60H Price and specs 60W Single Output Switching Power Supply Built-in active PFC function and Class 2 YCICT

Meanwell HLP-60H Price and datasheet 60W Single Output Switching Power Supply Built-in active PFC function Class 2 YCICT
