ADS-155
50.46

ADS-155

As low as $50.46

Meanwell 155W Single Output with 5V, 3A DC-DC Converter

- +
Availability:In stock
SKU Meanwell ADS-155
Brand Meanwell
Details

Meanwell ADS-155 Series is 155W Single Output with 5V, 3A DC-DC Converter. The entire series can be used as an integrated power supply and battery charger to charge rechargeable batteries while powering electronic devices. When the main power fails, the device will switch to an external battery, which will continue to power the electronics until the main power is reapplied or the battery is depleted. At the same time, ADS-155 Series is fixed switching frequency at 45KHz and Universal AC input/ Full range. What’s more, the series is equipped with various protection functions such as Short circuit, Overload and Over voltage. Considering its high reliability, excellent quality and long life, Meanwell ADS-155 Series is suitable for safety industrial or battery backup systems

ADS-155

Meanwell ADS-155 Series Model Specifications

Model ADS-15512 ADS-15524 ADS-15548
OUTPUT OUTPUT NUMBER CH1 CH2 CH1 CH2 CH1 CH2
DC VOLTAGE 12V 5V 24V 5V 48V 5V
RATED CURRENT 11.5A 3A 5.8A 3A 2.9A 3A
CURRENT RANGE 0-12.5A 0-3A 0-6.5A 0-3A 0-3.2A 0-3A
RATED POWER 153W 154.2W 154.2W
RIPPLE & NOISE (max.) 150mVp-p 100mVp-p 150mVp-p 100mVp-p 240mVp-p 100mVp-p
VOLTAGE ADJ. RANGE CH1:10.8 ~ 13.2V CH1:21.6 ~ 26.4V CH1:43.2-52.8V
VOLTAGE TOL ERANCE  ±2.0% ±3.0% ±1.0% ±3.0% ±1.0% ±5.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±1.0% ±2.0% ±0.5% ±2.0% ±1.0% ±1.0%
SETUP, RISE TIME 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.) 24ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 77.00% 82.00% 82.00%
AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 23A/115VAC 45A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD 105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is reoved
OVER VOLTAGE CH1:13.8 ~ 16.2V CH1:27.6 ~ 32.4V CH1:55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) ON CH1 output
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
OTHERS MTBF 2235.6K hrs min. Telcordia SR-332 (Bellcore) ; 252.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*110*50mm (L*W*H)
PACKING 1Kg; 16pcs/16Kg/0.95CUFT

Meanwell ADS-155 Series Features

l  Universal AC input/ Full range

l  Built-in active PFC function

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  100% full load burn-in test

l  Fixed switching frequency at PFC 67KHz, PWM 134KHz

l  2 years warranty

ADS-155

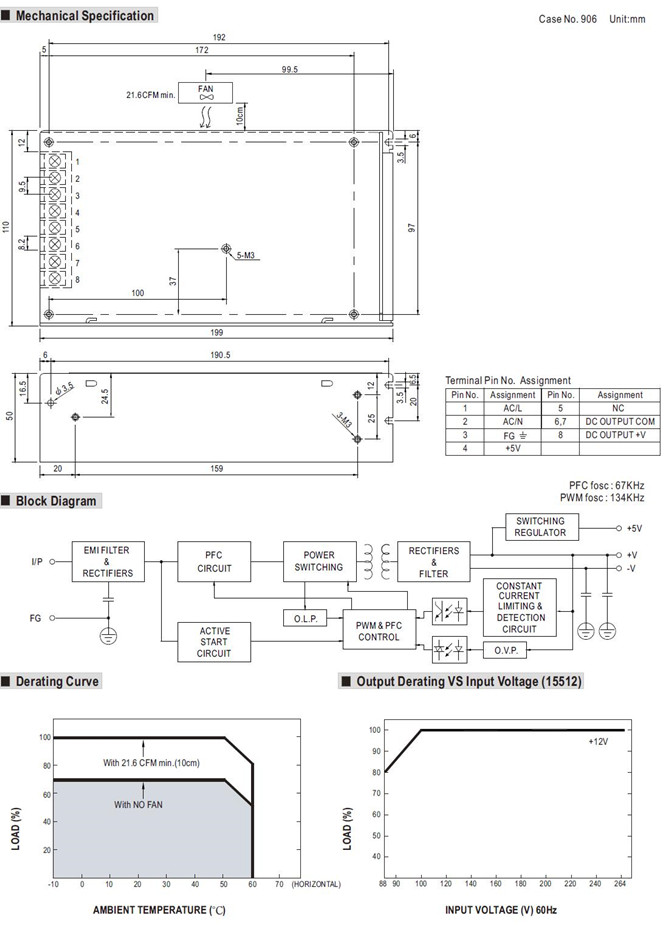

Meanwell ADS-155 Series Mechanical Diagram

ADS-155
