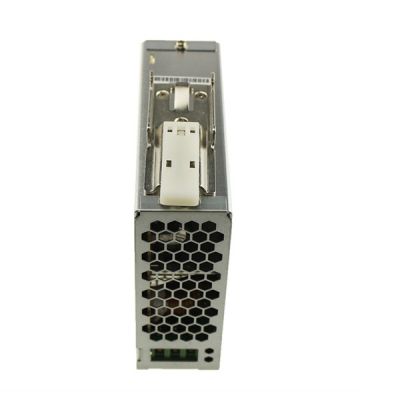

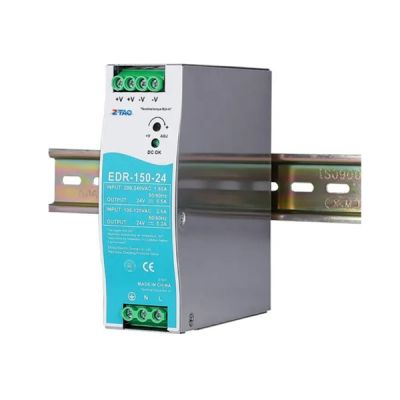

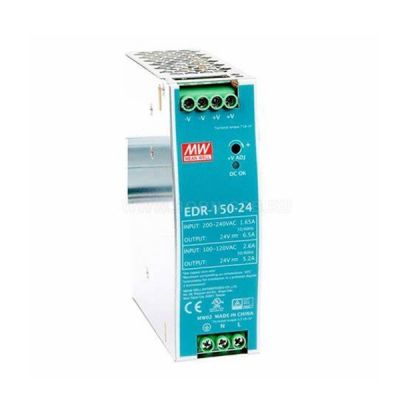

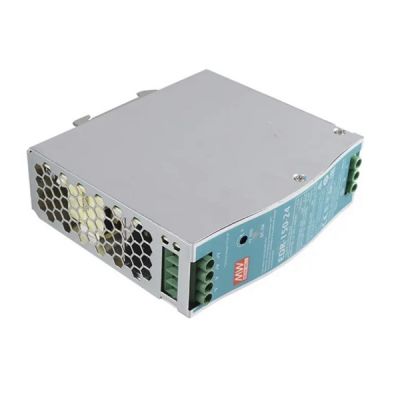

EDR-150-24
23.16
Details
Meanwell EDR-150-24 is one economical slim DIN rail power supply with 24V150mVp-p24 ~ 28V. This model provides up to 1 56W at 230V AC input, and to be installed on TS-35/7.5 or TS-35/15 mounting rails. Its body is designed just 40mmin width, which saves a lot of space inside the cabinets. EDR-150-12 also adopts the full range AC input from 90VAC to 264V AC and conforms to BS EN/EN6 1000-3-2(<80% Load), the norm the European Union regulates for harmonic current. In addition, Meanwell EDR-150-12 is produced with metal housing that enhances the power dissipation. Since the working efficiency reaches up to 87%, the product can operate at the ambient temperature between -20℃ and 60℃ under air convection. Furthermore, It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) allows EDR-150-12 a very competitive power supply solution for industrial applications.
Meanwell EDR-150-24 Specifications
| Model | EDR-150-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 6.5A / 230VAC 5.2A / 115VAC | |
| CURRENT RANGE | 0 ~ 6.5A / 230VAC 0 ~ 5.2A / 115VAC | |
| RATED POWER | 156W / 230VAC 125W / 115VAC | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24 ~ 28V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 10ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 2.6A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ. ) | 87%20A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed / 230VAC | ||
| 105 ~ 150% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed / 115VAC | ||
| OVER VOLTAGE | 29 ~ 33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||

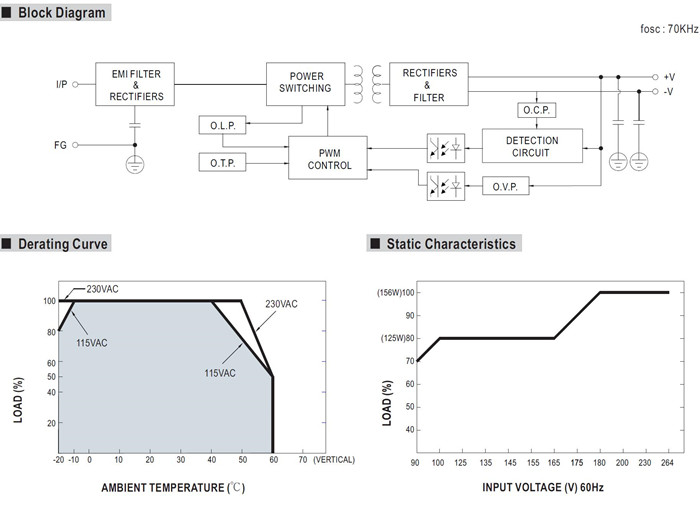

| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved;(meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2, Class A(S 80% Load), BS EN/EN61000-3-3,EAC TP TC 020, CNS13438 Class A | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
|
| Others | MTBF | 472.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40*125.2*113.5mm (W*H*D) | |
| PACKING | 0.6Kg; 20pcs/13Kg/1.16CUFT | |
Meanwell EDR-150-24 Features
l 2 years warranty
l 100% full load burn-in test
l Cooling by free air convection
l Universal AC input/ Full range
l Can be installed on DIN rail TS-35/7.5 or 15
l UL 508 (industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell EDR-150-24 Applications
l Industrial control system
l Semiconductor fabrication equipment
l Factory automation
l Electro-mechanical apparatus
2

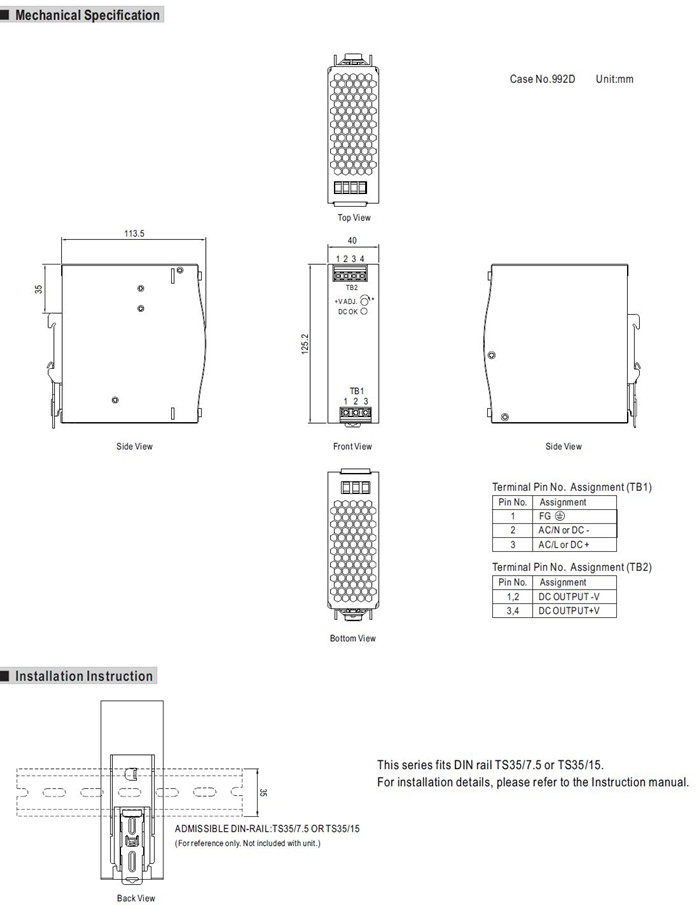

Meanwell EDR-150-24 Mechanical Diagram
