CloudEngine 9865-4C
21003.25
Details

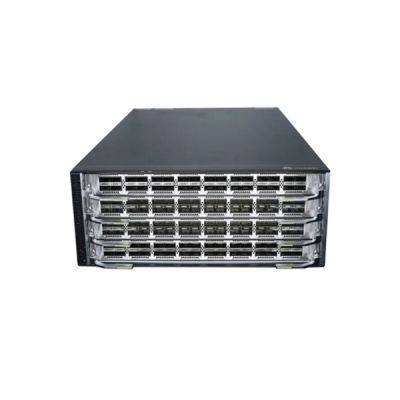

Huawei CloudEngine 9865-4C is a next-generation high-performance and high-density flexible-card Ethernet switch with 4 Subcard Slots, No Fan and Power Modules. The product is designed for DC scenarios. It has an advanced hardware architecture, offer high-density 40GE/100GE/400GE access ports, and deliver a wide range of DC service features. CloudEngine 9865 series switches can work with CloudEngine 16800/16800-X series DC core switches to build an elastic, virtualized, high-quality, and fully-connected 40GE/100GE/200GE/400GE DC network (DCN), meeting network requirements of DCs in the cloud era. CloudEngine 9865 series switches serve as core or aggregation devices in DCs to help enterprises build DCNs in the cloud computing era. They can also be used as core or aggregation devices of campus networks.
Additionally, CloudEngine 9865 series switches support Zero Touch Provisioning (ZTP). ZTP enables the switches to automatically obtain and load version files from a file server, freeing network engineers from onsite configuration and deployment. ZTP reduces labor costs and improves device deployment efficiency. ZTP supports embedded script languages and provides them for users through open APIs. DC users can use a familiar programming language (such as Python) to centrally configure network devices. ZTP decouples the configuration time of new devices from

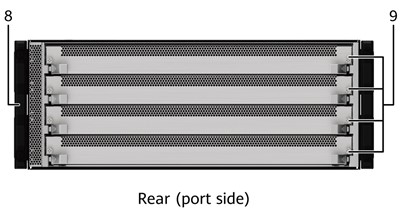

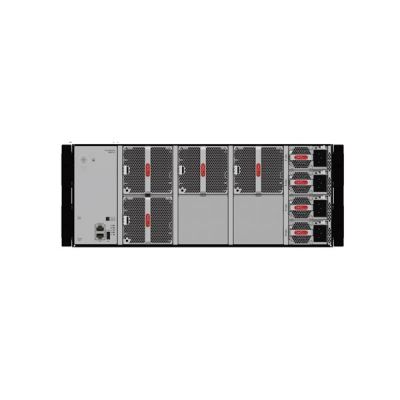

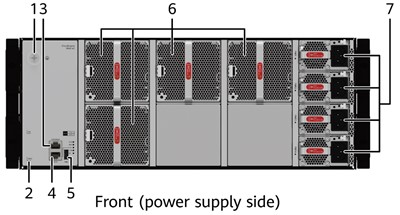

| 1, Ground screw | 2, Equipment serial number (ESN) and MAC address |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, USB port | 6, Four Fan slots |
| 7, Four Power supply slots | 8, Cable management frame |
| 9, Extended card slots |
Huawei CloudEngine 9865-4C Specifications
| Item | Details |
| Part Number | 02356BCE |
| Model | CE9865-4C |
| Description | CE9865-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| First supported version | V300R024C00 |
| Other part numbers | 02356BCF(CE9865-4C Mainframe (With 4 Subcard Slots, 2*AC Power Modules, 4*Fans, Port-side Intake)) |
| 02356BCJ(CE9865-4C mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card,port-side intake)) | |
| 02356HYJ(CE9865-4C mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*8 Port 400GE QSFP-DD Interface card,port-side intake)) | |
| Short Name | CE9865 |
| Dimensions with packaging (H x W x D) [mm (in.)] | 485 mm x 670 mm x 1060 mm (19.09 in. x 26.38 in. x 41.73 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 817.5 mm (6.89 in. x 17.40 in. x 32.19 in.) | |
| Weight without packaging [kg (lb)] | 28.7 kg (63.27 lb) (excluding fan modules, power modules, and cards) |
| Weight without packaging (full configuration) [kg (lb)] | 34.4 kg (75.84 lb) (with four power modules and four fan modules) |
| 45 kg (99.21 lb) (with four power modules, four fan modules, and four 32-port 100GE cards) | |
| 44 kg (97 lb) (with four power modules, four fan modules, and four 8-port 400GE cards) | |
| Weight with packaging [kg (lb)] | 53.7 kg (118.39 lb) (excluding fan modules, power modules, and cards) |
| Weight with packaging (full configuration) [kg (lb)] | 59.4 kg (130.95 lb) (with four power modules and four fan modules) |
| 70 kg (154.32 lb) (with four power modules, four fan modules, and four 32-port 100GE cards) | |
| 69 kg (152.12 lb) (with four power modules, four fan modules, and four 8-port 400GE cards) | |
| Chassis height [U] | 4 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 16 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 8GB |
| USB | Supported |
| Power supply mode | AC pluggable |
| DC pluggable | |
| HVDC pluggable | |
| Console port | RJ45 |
| Service port supporting the stack function | Not supported |
| RTC | Supported |
| Number of power modules | 4 |
| Redundant power supply | 2+2 backup |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side. |
| Availability | 0.999993286 |
| MTBF [year] | 25.50 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: 60.6 dB(A) on average (maximum: 69 dB(A)) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Back-to-front airflow: 78.2 dB(A) on average (maximum: 88 dB(A)) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
Huawei CloudEngine 9865-4C Features
l CloudEngine 9865 series switches support Multichassis Link Aggregation Group (M-LAG) to implement link aggregation among multiple devices, improving link reliability from the card level to the device level. Switches in an M-LAG all work in active state to share traffic and back up each other, enhancing system reliability.
l CloudEngine 9865 series switches support Packet Event. When a device discards packets due to reasons such as abnormal forwarding, specified packet discarding rules, a full buffer, or ACL rule deny actions, or when the latency of packets exceeds a specified threshold, the device reports related flow entries to the iMaster NCE-FabricInsight collector.
l CloudEngine 9865 series switches support Artificial Intelligence Explicit Congestion Notification (AI ECN). This future-oriented function can intelligently adjust the ECN thresholds of lossless queues based on the live-network traffic model to ensure low latency and high throughput with zero packet loss, maximizing the performance of lossless services.
l CloudEngine 9865 series switches can interconnect with iMaster NCE-Fabric through standard protocols such as NETCONF and SNMP to adapt to networks and implement automatic network management. This helps to provide more efficient and intelligent operation methods, simplifying network management and reducing the OPEX.
Huawei CloudEngine 9865-4C Ordering Info
| Device | Description |
| CE9865-4C | CE9865-4C Mainframe (With 4 Subcard Slots, Without Fan and Power Modules) |
| CE9865-4C-B | CE9865-4C-B,CE9865-4C Mainframe (With 4 Subcard Slots, 2*AC Power Modules, 4*Fans, Port-side Intake) |

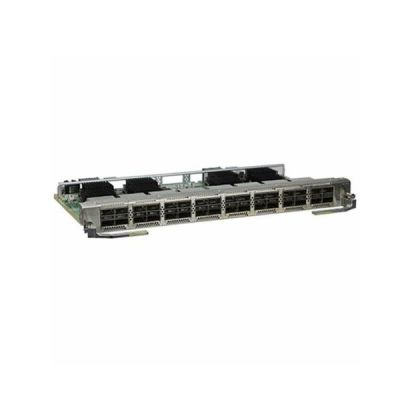

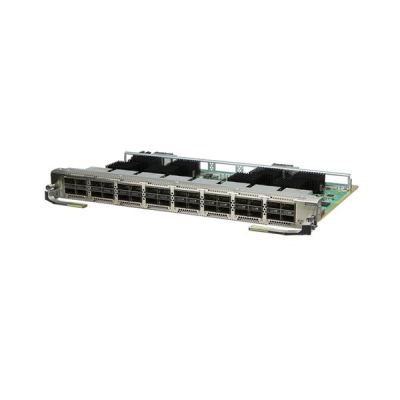

| CE9865-4C-B1 | CE9865-4C-B1,CE9865-4C mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card,port-side intake) |
| CE9865-4C-B2 | CE9865-4C-B2,CE9865-4C mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*8 Port 400GE QSFP-DD Interface Card,port-side intake) |
| FAN-180C-B | Assembling Components,Fan box(B,FAN panel side exhaust),FAN-180C-B,Fan box(B,FAN panel side exhaust) |
| PAC2KS12-PB | 2000W AC&240V DC Power Module (Back to Front,Power panel side exhaust) |
| PDC2K2S12-PB | 2200W DC Power Module (Back to Front,Power panel side exhaust) |
| PHD2KS12-PB | 2000W HVDC Power Module (Back to Front,Power panel side exhaust) |
| N1-CE98LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 9800 |
| N1-CE98CFFD-SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine CE9800-SnS-Year |
| N1-CE98LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 9800 |
| N1-CE98CFAD- SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine CE9800-SnS-Year |
| N1-CE98LIC-CFPM | N1-CloudFabric Premium SW License for CloudEngine 9800 |
| N1-CE98CFPM- SnS1Y | N1-CloudFabric Premium SW License for CloudEngine 9800-SnS-Year |
| N1-CE98UPG-A-P | N1-CloudEngine 9800 Upgrade SW License:Advanced to Premium |
| N1-CE98UGAP- SnS1Y | N1-CloudEngine 9800 Upgrade SW License:Advanced to Premium-SnS-Year |
| N1-CE98LIC-AFRD | N1-CloudEngine 9800 AI Fabric RDMA Application Acceleration Function |
| N1-CE98AFRD-SnS1Y | N1-CloudEngine 9800 AI Fabric RDMA Application Acceleration Function-SnS-Year |
| N1-CE98LIC-HPC | N1-CE88LIC-HPC,N1-CloudEngine 9800 AI Fabric Value-added Package for the HPC Scenarios |
| N1-CE98HPC-SnS1Y | N1-CloudEngine 9800 AI Fabric Value-added Package for the HPC Scenarios-SnS-1 Year, |
| N1-CE98LIC-AI | N1-CloudEngine 9800 Value-added Package for the AI Scenarios |
| N1-CE98AI-SnS1Y | N1-CloudEngine 9800 Value-added Package for the AI Scenarios-SnS Year |
| CE98LIC-FINHA | N1-CE98LIC-FINHA,N1-CloudEngine 9800 high reliability of finance Function |
| N1-CE98FINHA-SnS1Y | N1-CE98LIC-FINHA,N1-CloudEngine 9800 high reliability of finance Function-SnS-Year |
| N1-CE-F-LIC-MDCA | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package - Fixed |
| N1-CEFMDCA - SnS1Y | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package, Per Fixed device-SnS-Year |
| N1-CE-F-LIC-DM | N1-CloudEngine Digital Map Basic Function-Fixed |
| N1-CEMDF-SnS1Y | N1-CloudEngine Digital Map Function |
| N1-CE-LIC-AFP100VM | N1-CloudEngine Specified Flow Analysis Value-added Package Per 100 VM |
| N1-CEAFP100VM-SnS1Y | N1-CloudEngine Specified Flow Analysis Value-added Package Per 100 VM-SnS-Year |
| N1-CE-LIC-AFP1KVM | N1-CloudEngine Specified Flow Analysis Value-added Package Per 1k VM |
| N1-CEAFP100VM-SnS1Y | N1-CloudEngine Specified Flow Analysis Value-added Package Per 100 VM |
| N1-CE-LIC-XFLOW20G | N1-CloudEngine xFlow Intelligent Full-flow Analysis |
| N1-CEXFLOW20G-SnS1Y | N1-CloudEngine xFlow Intelligent Full-flow Analysis -SnS-Year |
| N1-CE-LIC-XFLOW40G | N1-CloudEngine xFlow Intelligent Full-flow Analysis, 40Gbps, 15Mpps, 1.8M Flow Per Second |
| N1-CEXFLOW40G-SnS1Y | N1-CloudEngine xFlow Intelligent Full-flow Analysis, 40Gbps, 15Mpps, 1.8M Flow Per Second-SnS-Year |

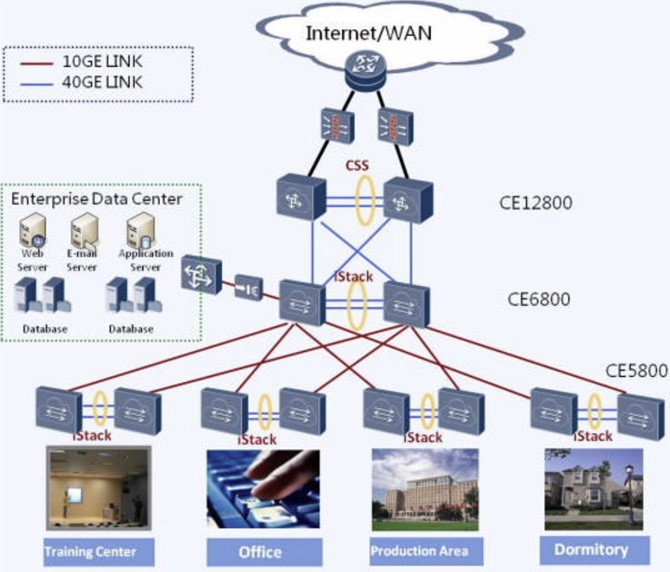

Huawei CloudEngine 9865-4C Networking and Applications
More Information
| Brand | Huawei |
|---|
