CloudEngine 8861-4C-EI
9616.28

CloudEngine 8861-4C-EI

$9,616.28

Huawei Data Center Switches With 4 Subcard Slots, Without FAN Box and Power Module

- +
Availability:In stock
SKU Huawei CloudEngine 8861-4C-EI
Brand Huawei
Details

Huawei CloudEngine 8861-4C-EI is a 100G Ethernet switch designed for data centers and high-end campus networks. The product provides high-performance, high-density 100GE/40GE/25GE/10GE ports, and low latency. Using the Huawei VRP8 software platform, CloudEngine 8800 switches provide extensive data center service features and high stacking capability. The airflow direction (front-to-back or back-to-front) can be changed. CloudEngine 8800 series switches can work with CloudEngine 16800/CloudEngine 12800/CloudEngine 8800/CloudEngine 6800/CloudEngine 5800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.
CloudEngine 8800 series switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks.
Furthermore, CloudEngine 8800 series switches support multichassis link aggregation group (M-LAG), which enables links of multiple switches to aggregate into one to implement device-level link backup. Switches in an M-LAG system can be upgraded independently. During the upgrade, other switches in the system take over traffic forwarding to ensure uninterrupted services.

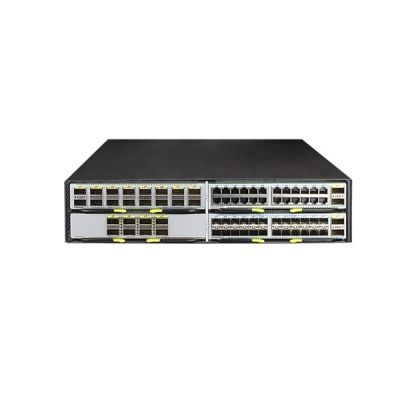

CloudEngine 8861-4C-EI Huawei Data Center Switch With 4 Subcard Slots, Without FAN Box and Power Module PN 02351SGW YCICT

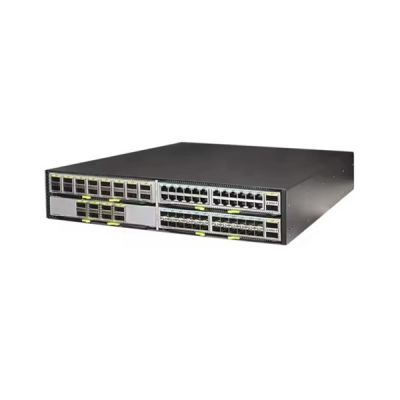

CloudEngine 8861-4C-EI Huawei Data Center Switch With 4 Subcard Slots, Without FAN Box and Power Module 02351SGW YCICT

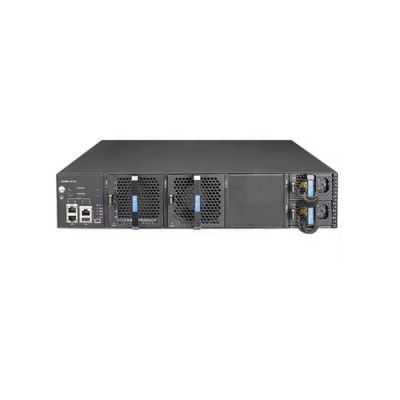

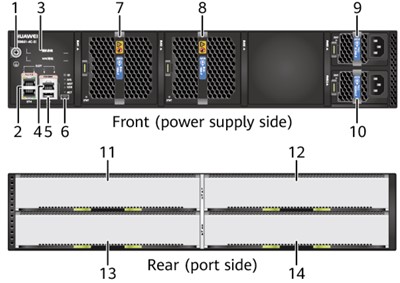

1, Ground screw 2, Two ETH management ports (RJ45)
3, ESN and MAC address label 4, Console port
5,USB port 6, Mini USB port
7, Fan slot 1 8, Fan slot 2
9, Power supply slot 1 10, Power supply slot 1
11, Extended card slot 1 12, Extended card slot 2
13, Extended card slot 3 14, Extended card slot 4

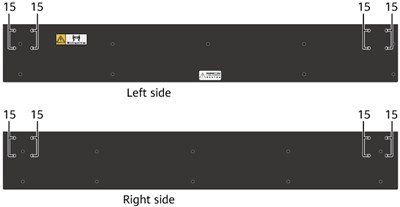

15, Mounting holes for mounting brackets

Huawei CloudEngine 8861-4C-EI Specifications

Part Number Part Model Part Description
02351SGW CE8861-4C-EI CE8861-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box and Power Module)
02351SHA CE8861-4C-EI-F CE8861-4C-EI Mainframe (With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Exhaust)
02351SGY CE8861-4C-EI-B CE8861-4C-EI Mainframe (With 4 Subcard Slots, 2*AC Power Module, 2*FAN Box, Port-side Intake)
Physical specifications Dimensions (W x D x H): 442.0 mm x 600.0 mm x 88.1 mm (17.4 in. x 23.6 in. x 3.47 in.)
Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 21.3 kg
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 58 dBA
Front-to-back airflow: < 56 dBA
Surge protection
Power module:
AC: 4 kV in common mode and 2.5 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, which is determined by features of fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup Two fan modules, working in 1+1 backup mode when the temperature is below 35°C
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 36.02 years
Mean time to repair (MTTR) 1.87 hours
Availability 0.999994061
Technical specifications Processor 1.5 GHz, eight-core
DRAM Memory 4 GB
NOR Flash 32 MB
NAND Flash 2 GB
Stack Service port supporting the stack function See the description of ports on each card.
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance

Huawei CloudEngine 8861-4C-EI Features

l  CloudEngine 8800 series switches use the Open Programmability System (OPS) embedded in the VRP8 software platform to provide programmability at the control plane.

l  CloudEngine 8800 series switches can work with a mainstream virtualization platform. As the high performance, hardware gateway of an overlay network (VXLAN), the CloudEngine 8800 series switches can support more than 16 million tenants.

l  CloudEngine 8800 series switches can connect to a cloud platform through an open API to provide unified management of software and hardware networks.

l  CloudEngine 8800 series support NETCONF and can work with Huawei Agile Controller.

l  CloudEngine 8800 series support Ansible-based automatic configuration and open-source module release, expanding network functions and simplifying device management and maintenance.

l  CloudEngine 8800 series can be integrated into mainstream SDN and cloud computing platforms flexibly and quickly.

Huawei CloudEngine 8861-4C-EI Ordering Info

CE8850-EI-F-B0A CE8850-32CQ-EI Switch (32-Port 100GE QSFP28,2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Exhaust)
CE8850-EI-B-B0A CE8850-32CQ-EI Switch (32-Port 100GE QSFP28, 2-Port 10GE SFP+,2*AC Power Module,2*FAN Box, Port-side Intake)
CE8850-32CQ-EI CE8850-32CQ-EI Switch (32-Port 100GE QSFP28 Optical,2*FAN Box, Port-side Exhaust, Without Power Module)
CE8850-EI-F-B0B CE8850-64CQ-EI Switch (64-Port 100GE QSFP28,2*AC Power Module,3*FAN Box, Port-side Exhaust)
CE8850-EI-B-B0B CE8850-64CQ-EI Switch (64-Port 100GE QSFP28,2*AC Power Module,3*FAN Box, Port-side Intake)
CE8850-64CQ-EI CE8850-64CQ-EI Switch (64-Port 100GE QSFP28, Without Fan and Power Module)
CE8861-4C-EI-F CE8861-4C-EI Mainframe (With 4 Subcard Slots,2*FAN Box, Port-side Exhaust, Without Power Module)
CE8861-4C-EI-B CE8861-4C-EI Mainframe (With 4 Subcard Slots,2*FAN Box, Port-side Intake, Without Power Module)
CE8861-4C-EI CE8861-4C-EI Mainframe (With 4 Subcard Slots, Without FAN Box, Without Power Module)
CE88-D8CQ 8 Port 100GE QSFP28 Interface Card
CE88-D16Q 16 Port 40GE QSFP+ Interface Card
CE88-D24T2CQ 24 Port 10GE Base-T and 2 Port 100GE QSFP28 Interface Card
CE88-D24S2CQ 24 Port 25GE SFP28 and 2 Port 100GE QSFP28 Interface Card
CE88-D24S2CQ-U 24-Port 25GE/16G FC (SFP28) and 2-Port 40GE/100GE (QSFP28) Interface Card
FAN-180A-F Fan box (F, FAN panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI
FAN-180A-B Fan box (B, FAN panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI
FAN-40HA-F Fan box (HA, Front to Back, FAN panel side intake) Applicable CE8850-32CQ-EI
FAN-40HA-B Fan box (HA, Back to Front, FAN panel side exhaust) Applicable CE8850-32CQ-EI
PAC-1K2WA-F 1200W AC&240V DC Power Module (Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI
PAC-1K2WA-B 1200W AC&240V DC Power Module (Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI
PHD-1K2WA-F 1200W HVDC Power Module (Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI
PHD-1K2WA-B 1200W HVDC Power Module (Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI
PDC-1K2WA-F 1200W DC Power Module (Front to Back, Power panel side intake) Applicable CE8850-64CQ-EI/CE8861-4C-EI
PDC-1K2WA-B 1200W DC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-64CQ-EI/CE8861-4C-EI
PAC-600WA-F 600W AC Power Module (Front to Back, Power panel side intake) Applicable CE8850-32CQ-EI
PAC-600WA-B 600W AC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-32CQ-EI
PDC600S12-CF 600W DC Power Module (Front to Back, Power panel side intake) Applicable CE8850-32CQ-EI
PDC600S12-CB 600W DC Power Module (Back to Front, Power panel side exhaust) Applicable CE8850-32CQ-EI
CE88-LIC-VXLAN CloudEngine 8800 VXLAN Function
CE88-LIC-BUN01 CE8800 Function License Bundle 1
CE88-LIC-TLM CE8800 Telemetry Function
CE88-LIC-PTP CE8800 Precision Time Protocol Function (Supported only by CE8850-64CQ-EI)
CE88-LIC-AIF CloudEngine 8800 AI Fabric Function (Supported only by CE8850-64CQ-EI & CE8861)
N1-CE88LIC-CFMM N1-CloudFabric Management SW License for CloudEngine 8800
N1-CE88CFMM-SnS1Y N1-CloudFabric Management SW License for CloudEngine 8800 -SnS-1 Year
N1-CE88LIC-CFFD N1-CloudFabric Foundation SW License for CloudEngine 8800
N1-CE88CFFD-SnS1Y N1-CloudFabric Foundation SW License for CloudEngine 8800-SnS-1 Year
N1-CE88LIC-CFAD N1-CloudFabric Advanced SW License for CloudEngine 8800
N1-CE88CFAD-SnS1Y N1-CloudFabric Advanced SW License for CloudEngine 8800-SnS-1 Year
N1-CE88LIC-AIF N1-CloudEngine 8800 AI Fabric Function
N1-CE88AIF- SnS1Y N1-CloudEngine 8800 AI Fabric Function-SnS-1 Year

Huawei CloudEngine 8861-4C-EI Networking and Applications

CloudEngine 8861-4C-EI Huawei CE8800 Data Center Switches With 4 Subcard Slots, Without FAN Box and Power Module YCICT
