CloudEngine S6730-H48X6C-K
2195.65
Details
Huawei CloudEngine S6730-H48X6C-K is a next-generation enterprise-class core and aggregation switches that offer high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). They build on an industry-leading Versatile Routing Platform (VRP) and are purpose-built with security, IoT, and cloud in mind. With these traits, S6730-H can be widely used in enterprise campuses, colleges/universities, data centers, and other scenarios.
Furthermore, S6730-H switches support VXLAN to implement network virtualization, achieving multi-purpose networks and multi-network convergence for greatly improved network capacity and utilization. As such, S6730-H switches are an ideal choice for building next-generation IoT converged networks in terms of cost, flexibility, and scalability.
The full series of S6730-H switches have built-in security probes to enable abnormal traffic detection, analysis of threats even in encrypted traffic, and network-wide threat deception. With such robust security features, CloudEngine S6730-H switches transform traditional passive security defense into proactive security protection, fully ensuring campus network security.

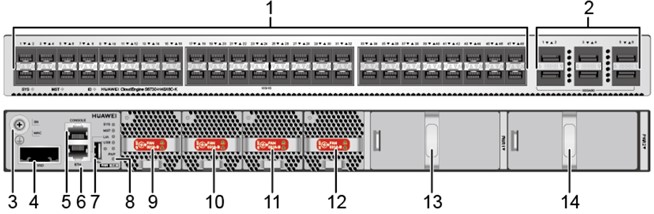

| 1. 48 10GE SFP Ethernet optical interfaces | 2, 6 40GE/100GE QSFP28 Ethernet optical interfaces |
| 3. Grounding screws | 4, SSD card slots |
| 5. 1 Console interface | 6, 1 ETH management interface |
| 7. 1 USB interface | 8, 1 PNP button |
| 9. Fan module slot 1 | 10, Fan module slot 2 |
| 11. Fan module slot 3 | 12, Fan module slot 4 |
| 13. Power module slot 1 | 14, Power module slot 2 |
Huawei CloudEngine S6730-H48X6C-K Specifications
| Item | Specifications |
| Model | S6730-H48X6C-K |
| Part No | 02353JQE 02353JQE-003 02353JQE-005 02353JQE-006 |
| Memory (RAM) | 4GB |
| Flash | Physical space is 2GB, and the actual available space can be checked using the display version command. |
| Mean Time Between Failures (MTBF) in years | 56.87 |
| Availability | Over 0.99999 |
| Service port lightning protection Specs | NA |
| Power port lightning protection Specs | Configure the AC power supply module: differential mode ±6kV, common mode ±6kV. Configure the DC power supply module: differential mode ±2kV, common mode ±4kV. |
| Dimensions (Width × Depth × Height) | Basic dimensions (depth excluding the distance from the protruding structural components of the front and rear panels): 442.0mm × 420.0mm × 43.6mmMaximum dimensions (depth from the protruding ports on the front panel to the maximum distance of the rear panel module handle): 442.0mm × 446.0mm × 43.6mm |
| Weight (including packaging) | 9.2kg |
| Stacking port | Any 10GE SFP interface (supports up to 16 physical interfaces) Any 40GE/100GE QSFP28 interface (supports up to 6 physical interfaces) |
| RTC | Support |
| RPS | Not support |
| PoE | Not support |
| Rated voltage range |
Input: 100V AC to 240V AC; 50/60Hz High voltage DC input: 240V DC DC input: -48V DC to -60V DC
|
| Maximum voltage range |
Communication input: 90V AC to 290V AC; 45Hz to 65HzHigh voltage DC input: 190V DC to 290V DCDC input: -38.4V DC to -72V DC
|
| Maximum power consumption (100% flow, fan at full speed) | 291W |
| Typical power consumption (30% flow, tested according to ATIS standards) | 165W |
| Operating temperature range |
-5°C～+45°C（0m～1800m Altitude）
|
| Storage temperature range | -40°C～+70°C |
| Normal noise level (27°C, sound power) | 小于65dB(A) |
| Relative humidity range | 5%RH～95%RH，Non-condensation |
| Working altitude | 0m～5000m |
| Product certification | Support EMC certification Support safety certification Support production certification |
Huawei CloudEngine S6730-H48X6C-K Features
l S6730-H series provides the integrated WLAN AC function that can manage 1K APs, reducing the costs of purchasing additional WLAN AC hardware. With this switch series, customers can stay ahead in the high-speed wireless era.
l S6730-H series supports SVF and functions as a parent switch. With this virtualization technology, a physical network with the "Small-sized core and aggregation switches + Access switches + APs" structure can be virtualized into a "super switch", greatly simplifying network management.
l S6730 H series uses the Packet Conservation Algorithm for Internet (iPCA) technology that alters the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can d etect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting edge fault detection technology turns "extensive management" to "granular management."
l S6730 H supports Smart Link and Virtual Ro uter Redundancy Protocol (VRRP), which implement backup of uplinks. One S6730 H switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.
Huawei CloudEngine S6730-H48X6C-K Ordering Info
| CloudEngine S6730-H48X6C | CloudEngine S6730-H48X6C (48 10GE SFP+, 6 40GE QSFP28, optional license upgrade to 6 100GE QSFP28, no power supply) |
| CloudEngine S6730-H24X6C | CloudEngine S6730-H24X6C (24 10GE SFP+, 6 40GE QSFP28, optional license upgrade to 6 100GE QSFP28, no power supply) |
| CloudEngine S6730-H48X6C | CloudEngine S6730-H48X6C combined configuration (48 10GE SFP+, 6 100GE/40GE QSFP28, with license, without power supply) |
| CloudEngine S6730-H24X6C | CloudEngine S6730-H24X6C combined configuration (24 10GE SFP+, 6 100GE/40GE QSFP28, with license, without power supply) |
| CloudEngine S6730-H24X4Y4C | CloudEngine S6730-H24X4Y4C (24 10GE SFP+, 4 25GE SFP28, 4 100GE QSFP28, without power supply) |
| L-100GEUPG-S67H | CloudEngine S6730-H series, upgrade from 40GE to 100GE RTU License, per device |
| L-VxLAN-S67 | S67 series, VxLAN software license, per device |
| L-512AP-S67 | S67 series, wireless access controller AP resource authorization-512AP |
| L-64AP-S67 | S67 series, wireless access controller AP resource authorization-64AP |
| L-32AP-S67 | S67 series, wireless access controller AP resource authorization-32AP |
| L-1AP-S67 | S67 series, wireless access controller AP resource authorization-1AP |
| N1-S67H-M-Lic | S67 series, basic software, per device |
| N1-S67H-M-SnS1Y | S67 series, basic software software subscription and warranty annual fee, per device, 1 year |
| PAC-600S12-CB | 600W AC power module (matching S6730-H48X6C/S6730-H24X6C series models) |
| PDC1000S12-DB | 1000W DC power module (matching S6730-H48X6C/S6730-H24X6C series models) |
| PAC300S12-CL | 300W AC power module (matching S6730-H24X4Y4C series) |
| PDC260S12-DL | 260W DC power module (matching S6730-H24X4Y4C series models) |

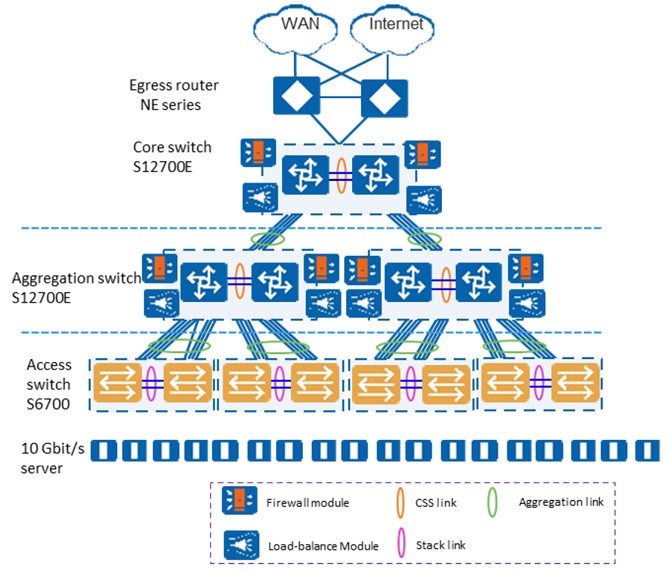

Huawei CloudEngine S6730-H48X6C-K Networking and Applications
More Information
| Brand | Huawei |
|---|
