S5700S-28P-PWR-LI-AC
438.49

S5700S-28P-PWR-LI-AC

$438.49
- +
Availability:In stock
SKU Huawei S5700S-28P-PWR-LI-AC
Brand Huawei
Details

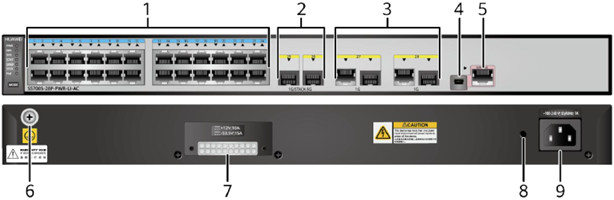

S5700S-28P-PWR-LI-AC

1 Twenty-four PoE+ 10/100/1000BASE-T ports
2 Two 1000BASE-X ports
3 Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)
4 One mini USB port
5 One console port
6 Ground screw
7 RPS socket
8 Jack for AC power cable locking strap
9 AC socket

Huawei S5700S-28P-PWR-LI-AC Datasheet

Item Description
Brand Huawei
Model S5700S-28P-PWR-LI-AC
Part number 98010562
Memory (RAM) 256 MB
Flash 200 MB
Mean time between failures (MTBF) 46.2 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±6 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.)
Weight (with packaging) 5.8 kg (12.79 lb)
Stack ports Two uplink 1000BASE-X optical ports (non-combo ports)
RTC Supported
RPS Supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 45.8 W
100% PoE loads: 469.7 W (system power consumption: 100.1 W, PoE: 369.6 W)
Operating temperature
0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 48 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
flash EMC certification
Safety certification
Manufacturing certification
Typical power consumption (30% of traffic load)
Tested according to ATIS standard
EEE enabled
No PoE power consumption
32 W

Huawei S5700S-LI Series Models

S5700S-28P-LI-AC
S5700S-28P-PWR-LI-AC
S5700S-52P-LI-AC
S5700S-28X-LI-AC
S5700S-52X-LI-AC
