AirEngine 6760-X1

AirEngine 6760-X1


Huawei indoor Wi-Fi 6 (802.11ax) Access Point supporting for up to 12 spatial streams

- +
Availability:In stock
SKU Huawei AirEngine 6760-X1
Brand Huawei

AirEngine 6760-X1 is an indoor Wi-Fi 6 (802.11ax) Access Point released from Huawei supporting ten spatial streams, applied for complex environments such as narrow corridors and high-rise buildings.

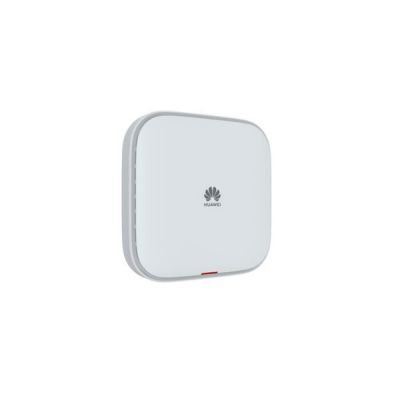

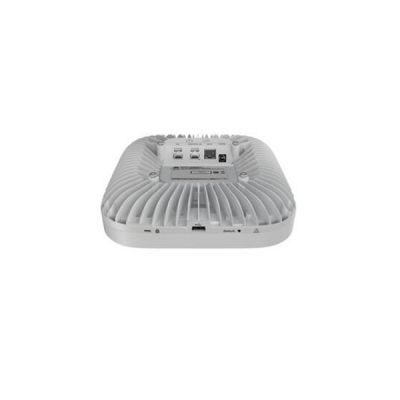

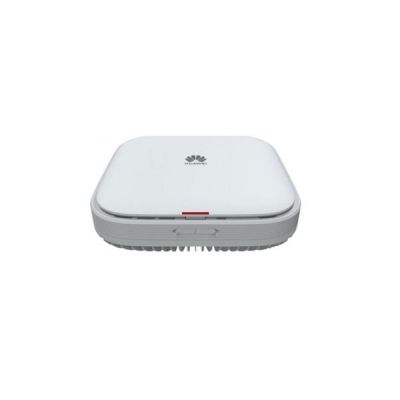

Huawei AirEngine 6760-X1

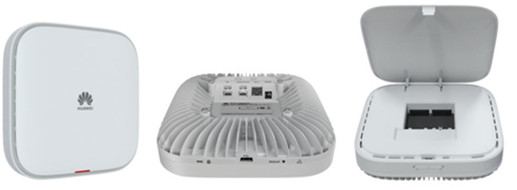

AirEngine 6760-X1 Product Overview

AirEngine 6760-X1 is an indoor Access Point released by Huawei that supports the Wi-Fi 6 (802.11ax) standard. It is suitable for office, education, manufactures and other scenarios of medium and large enterprises.

The whole device has 10 spatial streams, which can be upgraded to 12 spatial streams through the RTU software license. It also supports software-defined radio frequency and can switch between dual-band, triple-band and dual-band + independent scanning RF modes to flexibly meet high interference or high density. Moreover, Huawei AirEngine 6760-X1 supports 10GE optical/electrical uplink, which is convenient for customers to deploy flexibly and effectively, and  saves customer investment in the end.

AirEngine 6760-X1 has a built-in smart antenna, which can effectively improve the signal gain.

AirEngine 6760-X1E can be equipped with a variety of external antennas to meet the deployment needs of special scenarios such as narrow corridors and high floors.

AirEngine 6760-X1 Specifications

Brand Huawei
Model AirEngine 6760-X1
Antenna Type AirEngine 6760-X1: Built-in Smart Antennas
AirEngine 6760-X1E: External antennas
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax
Dimensions (H x W x D) 61 mm x 220 mm x 220 mm
Port 1 x 10 GE, 1 x GE electrical, and 1 x 10 GE SFP+
IoT Built-in IoT slots
Operating Temperature –10°C to 50°C
Power Input DC: 48 V ± 10%
PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users 1024 (dual-radio mode)
1152 (triple-radio mode)
Note: The actual number of users varies according to the environment
MIMO: Spatial Streams Basic capability:
2.4 GHz: 4x4:4; 5 GHz: 6x6:6
Capability upgrade via RTU license:
2.4 GHz: 4x4:4; 5 GHz: 8x8:8
2.4 GHz: 4x4:4; 5 GHz-0: 4x4:4; 5 GHz-1: 4x4:4
Maximum Rate Basic capability: 8.35 Gbit/s
RTU license upgrade: 10.75 Gbit/s

AirEngine 6760-X1 Features

l  RTU license upgrade

l  1 x 10GE electrical, 1 x GE electrical, and 1 x 10GE SFP+.

l  USB interface can be used for external power supply, external IoT expansion, and storage.

l  Built-in IoT slots, supporting IoT expansion such as BLE 5.0, ZigBee, RFID, and Thread.

l  Independent radio scanning*, achieving real-time detection of interference and rogue devices in real time and timely network optimization

l  The maximum rate is up to 1.15 Gbps at 2.4GHz band, 7.2 Gbps at 5GHz band, and 8.35 Gbps for the device

l  Support Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Bluetooth terminals by collaborating with location server.

l  Support the Fat, Fit, and cloud three working modes.

l  Support dual radios: 2.4GHz (4x4) + 5GHz (6x6).

l  Support dual radios: 2.4GHz (4x4) + 5GHz (8x8), dual radios: 2.4GHz (4x4) + 5GHz (6x6) + independent radio scanning mode*, triple radios: 2.4GHz (4x4) + 5GHz (4x4) + 5GHz (4x4)

l  support smart antenna that enables targeted signal coverage for mobile terminals, reduces interferences, and improves signal quality. Additionally, it implements millisecond-level switchover as STAs move

AirEngine 6760-X1 and More AirEngine 6700 Series Models

AirEngine 6760-X1
AirEngine 6761-21
AirEngine 6761-21E
AirEngine 6761-22T
AirEngine 6761-21T

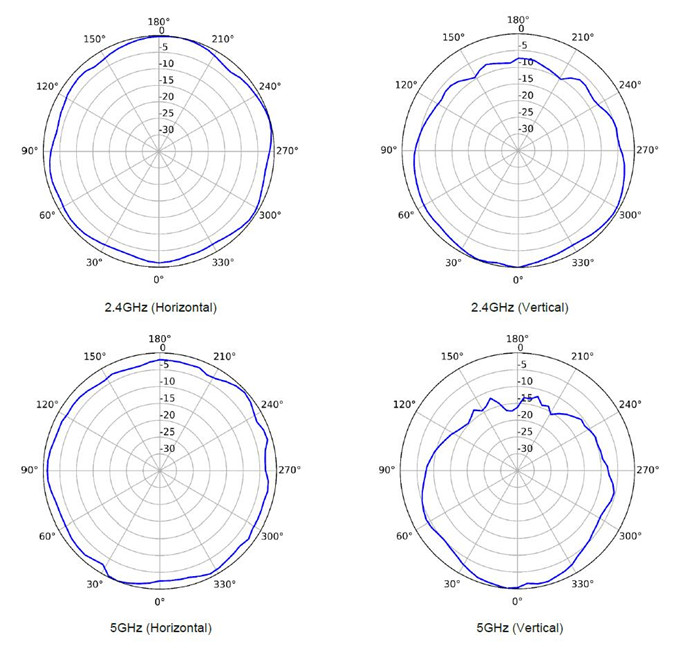

AirEngine 6760-X1 Antennas Pattern

AirEngine 6760-X1
