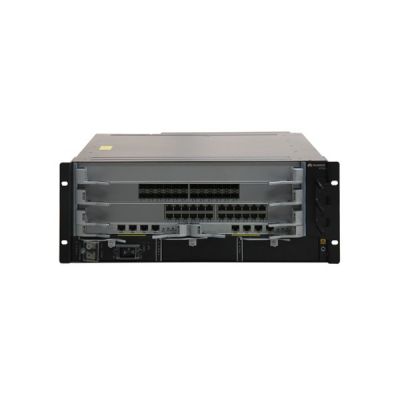

Huawei S7703 PoE Routing Switch is designed for next-generation enterprise networks. It supports two Main Control Units (MCUs), three Line Processing Units (LPUs), and AC or DC power modules in 1+1 backup mode. S7700 switches can offer voice, video, and data services, helping enterprises build routing and switching integrated end-to-end networks. The product is based on Huawei's intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security,
In addition, the built-in native AC on S7700 series switches allows enterprises to build a wireless network without additional AC hardware. S7700 switch can manage up to 4K APs. It is a core switch that provides up to Tbit/s AC capabilities, avoiding the performance bottleneck on independent AC devices. The native AC capabilities help organizations better cope with challenges in the highspeed wireless era.

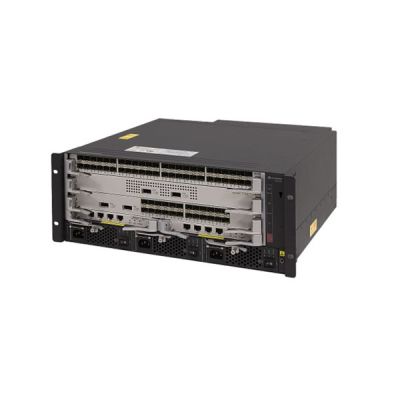

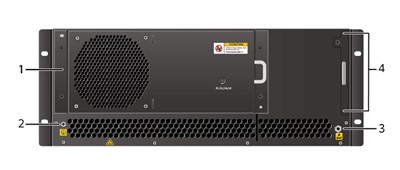

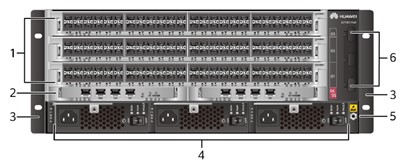

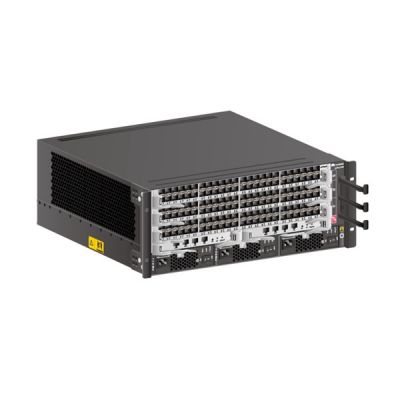

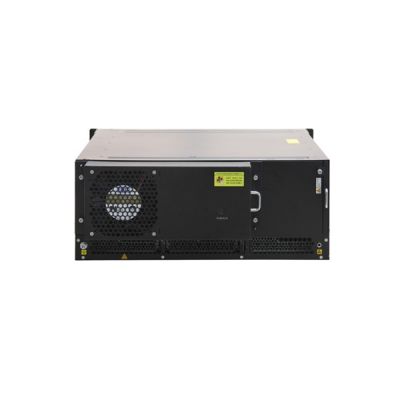

| 1, Three of the service cards | 2, Two MPUs |
| 3, A pair of mounting brackets | 4, Three power modules |
| 5, Front ESD jack | 6, Cable management frames |
| 1, One Fan Module | 2, Ground screw |
| 3, Rear ESD jack | 4, Air filter |
Huawei S7703 PoE Routing Switch Specifications
| Item | Description |
| Part number | S7703 PoE chassis: 02115782 |
| Description | Supports two Main Control Units (MCUs), three Line Processing Units (LPUs), and AC or DC power modules in 1+1 backup mode. |
| LPU slots | 3 |
| MPU slots | 2 |
| Fan slots | 1 |
| Power supply slots | 3 |
| Maximum port density | V200R013C00 to V200R019C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE |
| V200R019C00 to V200R020C10: 144xFE, 144xGE, 144x10GE, 24x40GE, 18x100GE | |
| V200R021C00 and later versions: 144xFE, 144xGE, 144x10GE, 36x40GE, 18x100GE | |
| Installation | In an N66E or N68E cabinet |
| CSS | Not supported |
| Maximum power consumption (fully configured, no PoE power supply) | 1185W |
| Power specifications | DC input voltage |
| Rated voltage: -48 V DC/-60 V DC | |
| Maximum voltage range: -40 V DC to -72 V DC | |
| AC input voltage | |
| Rated voltage: 110 V AC/220 V AC, 50/60 Hz | |
| Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) | |
| HVDC input voltage (3000 W AC) | |
| Rated voltage: 240 V DC | |
| Maximum voltage range: 190 V DC to 290 V DC | |
| Dimensions (H x W x D, without rack-mounting brackets) | With cable management frames (4 U high): 175 mm x 442 mm x 585 mm (6.9 in. x 17.4 in. x 23.0 in.) |
| Without cable management frames (4 U high): 175 mm x 442 mm x 517.4 mm (6.9 in. x 17.4 in. x 20.37 in.) | |
| Weight (empty/fully configured) | 10.3 kg/33.8 kg (22.7 lb/74.5 lb) |
| Reliability and availability | Mean time between failures (MTBF): 33.8 years Availability: 0.9999964 |
| Environment specifications | Operating temperature and altitude: |
| -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) | |
| 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). | |
| 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) | |
| Relative humidity: 5% RH to 95% RH (noncondensing) | |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | |
| Storage altitude: < 5000 m (16404 ft.) | |
| Noise at normal temperature (acoustic power) | ≤ 72 dB(A) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S7703 PoE Routing Switch Specifications
| Item | Description |
| Part number | S7703 PoE chassis: 02115782 |
| Description | Supports two Main Control Units (MCUs), three Line Processing Units (LPUs), and AC or DC power modules in 1+1 backup mode. |
| LPU slots | 3 |
| MPU slots | 2 |
| Fan slots | 1 |
| Power supply slots | 3 |
| Maximum port density | V200R013C00 to V200R019C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE |
| V200R019C00 to V200R020C10: 144xFE, 144xGE, 144x10GE, 24x40GE, 18x100GE | |
| V200R021C00 and later versions: 144xFE, 144xGE, 144x10GE, 36x40GE, 18x100GE | |
| Installation | In an N66E or N68E cabinet |
| CSS | Not supported |
| Maximum power consumption (fully configured, no PoE power supply) | 1185W |
| Power specifications | DC input voltage |
| Rated voltage: -48 V DC/-60 V DC | |
| Maximum voltage range: -40 V DC to -72 V DC | |
| AC input voltage | |
| Rated voltage: 110 V AC/220 V AC, 50/60 Hz | |
| Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) | |
| HVDC input voltage (3000 W AC) | |
| Rated voltage: 240 V DC | |
| Maximum voltage range: 190 V DC to 290 V DC | |
| Dimensions (H x W x D, without rack-mounting brackets) | With cable management frames (4 U high): 175 mm x 442 mm x 585 mm (6.9 in. x 17.4 in. x 23.0 in.) |
| Without cable management frames (4 U high): 175 mm x 442 mm x 517.4 mm (6.9 in. x 17.4 in. x 20.37 in.) | |
| Weight (empty/fully configured) | 10.3 kg/33.8 kg (22.7 lb/74.5 lb) |
| Reliability and availability | Mean time between failures (MTBF): 33.8 years Availability: 0.9999964 |
| Environment specifications | Operating temperature and altitude: |
| -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) | |
| 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). | |
| 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) | |
| Relative humidity: 5% RH to 95% RH (noncondensing) | |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | |
| Storage altitude: < 5000 m (16404 ft.) | |
| Noise at normal temperature (acoustic power) | ≤ 72 dB(A) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S7703 PoE Routing Switch Features
l S7700 innovatively implements the Cluster Switch System (CSS) function through switch fabrics, and packets are only switched once when they are forwarded between chassis. This addresses the problem of low switching efficiency caused by multiple switching processes during inter-chassis forwarding in clusters established using line cards. In addition, inter-chassis link aggregation can be used to improve link use efficiency and prevent single-point failures.
l S7700 supports High-speed Self Recovery (HSR) technology. Using Huawei's ENP cards, the S7700 is the industry's only switch that implements end-to-end IP MPLS bearer network protection switchover within 50 ms, improving network reliability.
l S7700 has a dedicated fault detection subcard that provides hardware-based BFD and hardware-based OAM including IEEE 802.3ah, 802.1ag, and ITU-Y.1731. Hardware-based OAM implements 3.3 ms fault detection and can check session connectivity of all terminals in real time when a network fault occurs. The S7700 can also work with a network management system (NMS). The NMS provides a graphical fault diagnosis interface and traverses all network elements and links automatically to help users detect and locate faults quickly.
l S7700's HQoS control mechanisms classify traffic based on information from the link layer to the application layer. With advanced queue scheduling and congestion control algorithms, the S7700 performs accurate multi-level scheduling for data flows, satisfying enterprises' QoS requirements for a variety of services and user terminals.
Huawei S7703 PoE Routing Switch Ordering Info
| LE0BN66EDC | N66E DC Assembly Rack (Four 40A outputs, maximum 1600W per output, 600X600X2200mm) |
| LE0BN66EAC | N66E AC Assembly Rack (Eight 10A Outputs, maximum 1600W per output, 600X600X2200mm) |
| LE2BN66EA000 | N66E AC Assembly Rack (Four 16A Outputs, maximum 2500W per output, 600X600X2200mm) |
| ES0B00770300 | S7703 Assembly Chassis |
| SWC02BAKN001 | S7703 PoE assembly chassis |
| ES0B00770600 | S7706 Assembly Chassis |
| SWC02BAKJ000 | S7706 PoE assembly chassis |
| ES0B00771200 | S7712 Assembly Chassis |
| ES0E2FBX | Wide Voltage Fan Box |
| ES1M00FBX001 | Enhancement Wide Voltage 68 Fan Box |
| EH1M00FBX000 | Wide Voltage 74 Fan Box |
| EH1D200CMU00 | Centralized Monitoring Board |
| ES0D00MCUA00 | S7703 Main Control Unit A |
| ES1D2MCUD000 | S7703 Main Control Unit D |
| LSS7MCUD0001 | S7703 Main Control Unit D |
| ES0D00SRUA00 | S7706/S7712 Main Control Unit A |
| ES1D2SRUE000 | S7706/S7712,Main Control Unit E |
| ES1D2SRUH000 | S7706/S7712 Main Control Unit H |
| LSS7SRUHA100 | S7706/S7712 Main Control Unit H(A1) |
| LSS7SRUHX100 | S7706/S7712 Main Control Unit H(X1) |
| LSS7SRUHX101 | S7706/S7712 Main Control Unit H(X1) |
| LSS7SRUH1000 | S7706/S7712,Main Control Unit H |
| LSS7SRUE1000 | S7706/S7712,Main Control Unit E |
| ES02VSTSA | Cluster Switching System Service Unit |
| ES1D2VS04000 | 4-Port 10G Cluster Switching System Service Unit (SFP+) |
| ES0D0G48TC01 | 48-Port 10/100/1000BASE-T Interface Card (EC, RJ45) |
| ES1M2G48TX5S | 48-port 10/100/1000BASE-T interface card (X5S,M,RJ45) |
| ES1M2G48TX5E | 48-port 10/100/1000BASE-T interface card (X5E,M,RJ45) |
| LSS7G48TA1S0 | 48-port 10/100/1000BASE-T interface card (EA1, RJ45) |
| LSS7G48TA1E0 | 48-port 10/100/1000BASE-T interface card (EC1, RJ45) |
| LSS7G48TX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45) |
| LSS7G48VX5E0 | 48-port 100/1000BASE-T PoE interface card (X5E, RJ45, PoE++) |
| LSS7G48VA1S0 | 48-port 10/100/1000BASE-T PoE interface card (EA1, RJ45, PoE++) |
| LSS7G48VX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++) |
| ES0D0G48SC01 | 48-Port 100/1000BASE-X Interface Card (EC, SFP) |
| LSS7G48SX6S0 | 48-port GE SFP interface card (X6S,SFP) |
| LSS7G48SX6E0 | 48-port GE SFP interface card (X6E,SFP) |
| LSS7G48SA1S0 | 48-Port 100/1000BASE-X Interface Card(EA1,SFP) |
| LSS7G48SA1E0 | 48-Port 100/1000BASE-X Interface Card(EC1,SFP) |
| ES1D2X08SX5H | 8-port 10GE SFP+ interface card (X5H, SFP+) |
| ES0D0X12SA01 | 12-Port 10GBASE-X Interface Card(SA, SFP+) |
| LSS7X24BX6S0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6S,SFP+) |
| LSS7X24BX6E0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6E,SFP+) |
| ES1D2X16SSC2 | 16-Port 10GBASE-X Interface Card (SC,SFP+) |
| ES1D2X32SSC0 | 32-Port 10GBASE-X Interface Card (SC,SFP+) |
| LSS7X48SX6S0 | 48-port 10GE SFP+ interface card (X6S,SFP+) |
| LSS7X48SX6E0 | 48-port 10GE SFP+ interface card (X6E,SFP+) |
| LSS7M24VX6S1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45,PoE++) |
| LSS7M24VX6E1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45,PoE++) |
| LSS7M24BX6S0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45) |
| LSS7M24BX6E0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45) |
| LSS7L12QX6E0 | 12-port 40GE QSFP+ inferface card (X6E,QSFP+) |
| LSS7C02BX6E0 | 2-port 100GE QSFP28 interface and 4-port 40GE QSFP28 interface card (X6E,QSFP28) |
| LSS7C06HX6S0 | 6-port 100GE QSFP28 interface card (X6S,QSFP28) |
| LSS7C06HX6E0 | 6-port 100GE QSFP28 interface card (X6E,QSFP28) |
| ES02PSD16 | 1600W DC Power Module(Black) |
| W2PSA0800 | 800W AC Power Module(Black) |
| PAC-2200WF | 2200W AC Power Module |
| W2PSD2200 | 2200W DC Power Module(Black) |
| PAC3KS54-CE | 3000W AC power module (black) |
| PAC3KS54-NE | 3000W AC power module (black) |
| LE0W01DPDB | DC Power Distribution Unit (Four 40A outputs, maximum 1600 W per output, include power cable) |
| IN6W18L10A | AC Power Distribution Unit (Eight 10A outputs, maximum 1600 W per output, include power cable) |
| IM1W24APD | AC Power Distribution Unit (Four 16A outputs, maximum 2500 W per output, include power cable) |
| ES1SMS2J7701 | S7700 Basic SW,V200R019C10 |
| ESS7R20C00SW | S7700 Basic SW,V200R020C00 |
| ESS7R20C10SW | S7700 Basic SW,V200R020C10 |
| ESS7R21C00SW | S7700 Basic SW,V200R021C00 |
| ESS7R21C01SW | S7700 Basic SW,V200R021C00 |
| ES0SSVFF7700 | SVF Function License(with S7700 used) |
| ES0SMPLS7700 | MPLS Function License |
| ES0SNQAF7700 | NQA Function License |
| ES0SIPV67700 | IPV6 Function License |
| ES1SVXLAN000 | VXLAN enhanced function license(used in S7700 series) |
| ES1SFIB128K0 | X-series LPU FIB Resource License-128K |
| ES1SWL512AP0 | WLAN Access Controller AP Resource License-512AP (with the X-series LPU used) |
| ES1SWL128AP0 | WLAN Access Controller AP Resource License-128AP (with the X-series LPU used) |
| ES1SWL64AP00 | WLAN Access Controller AP Resource License-64AP (with the X-series LPU used) |
| ES1SWL16AP00 | WLAN Access Controller AP Resource License-16AP (with the X-series LPU used) |
| ES1SPPPOE4K0 | PPPoE Access Subscriber Resource License-4K (with the X-series LPU used) |
| ES1SPPPOE8K0 | PPPoE Access Subscriber Resource License-8K (with the X-series LPU used) |
| ES1SPPPOE16K | PPPoE Access Subscriber Resource License-16K (with the X-series LPU used) |
| L-ACU2-128AP | ACU2 Wireless Access Controller AP Resource License(128 AP) |
| N1-S77-F-Lic | N1-CloudCampus,Foundation,S77 Series,Per Device |
| N1-S77-F-SnS1Y | N1-CloudCampus,Foundation,S77 Series,SnS,Per Device,1Year |
| N1-S77-A-Lic | N1-CloudCampus,Advanced,S77 Series,Per Device |
| N1-S77-A-SnS1Y | N1-CloudCampus,Advanced,S77 Series,SnS,Per Device,1Year |
| N1-S77-FToA-Lic | N1-Upgrade-Foundation to Advanced,S77 Series,Per Device |
| N1-S77-FToA-SnS1Y | N1-Upgrade-Foundation to Advanced,S77 Series,SnS,Per Device,1Year |
| N1-AC1.0-AM-15-Lic | N1-CloudCampus,Access Management-AC1.0,15 Terminals |
| N1-AC1.0-AM-15-SnS1Y | N1-CloudCampus,Access Management-AC1.0,15 Terminals,SnS,1Year |
| CI-X7MSwitch-U | CampusInsight-Upgrade-Foundation to Advanced, X7 Series Modular Switch, Per Device |
| CI-X7MSwitch-U-SnS1Y | CampusInsight-Upgrade-Foundation to Advanced, X7 Series Modular Switch, SnS, Per Device, 1 Year |
| EH1IV2RDC0E0 | S7700 and S9700 Series Switches V200R013C00 Product Documentation |
| EH1IV2RJC0E0 | S7700 Series Switches V200R019C00 Product Documentation |
| EH1IV2RJC1E0 | S7700 Series Switches V200R019C10 Product Documentation |

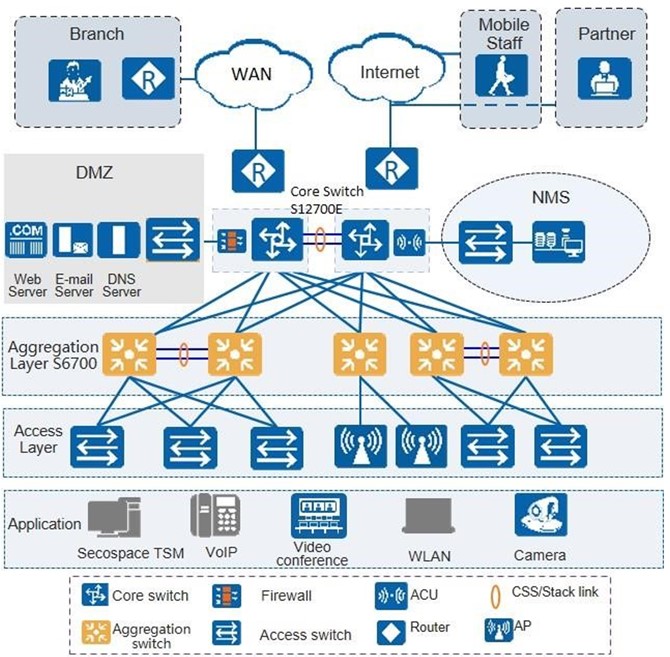

Huawei S7703 PoE Routing Switch Networking and Applications
