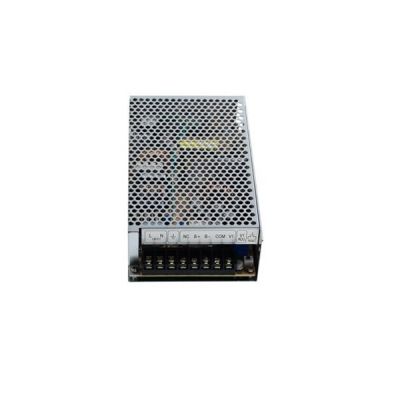

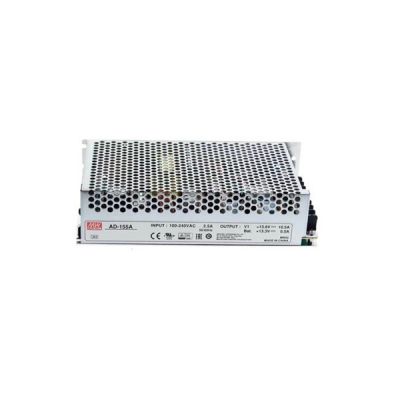

Meanwell 155W Single Output with Battery Charger(UPS Function)

- +
Availability:In stock
SKU Meanwell AD-155
Brand Meanwell
Details

Meanwell AD-155 Series is 155W Single Output with Battery Charger (UPS Function). The entire series is designed for uninterrupted DC power supply. It can be used as an integrated power supply and battery charger to charge rechargeable batteries while powering electronic devices. When the mains power fails, the device will switch to an external battery, which will continue to power the electronics until the mains power is reapplied or the battery is depleted. It can also be used with batteries with a capacity below 3Ah. At the same time, AD-155 series is fixed switching frequency at PFC 67KHz, PWM 134KHz and passes 100% full load burn-in test. Apart from them, it provides various protection functions such as Short circuit, Overload and Over voltage. Considering its high reliability, excellent reliability and longevity, Meanwell AD-155 series is widely used in emergency lighting, security monitoring and alarm systems.

Meanwell AD-155 Series Model Specifications

Meanwell AD-155 Series Model Specifications

Model AD-155A AD-155B AD-155C
OUTPUT OUTPUT NUMBER CH1 CH2 CH1 CH2 CH1 CH2
DC VOLTAGE 13.8V 13.3V 27.6V 27.1V 54V 53.3V
RATED CURRENT 10.5A 0.5A 5A 0.5A 2.7A 0.2A
CURRENT RANGE 0-11.5A 0-0.5A 0-5.5A 0-0.5A 0-2.7A 0-0.5A
RATED POWER 151.55W 151.55W 156.5W
RIPPLE & NOISE (max.) 150mVp-p ---- 150mVp-p ---- 240mVp-p ----
VOLTAGE ADJ. RANGE CH1: 12 ~ 14.5V CH1: 24 ~ 29V CH1: 48 ~ 58V
VOLTAGE TOL ERANCE  ±2.0% ---- ±1.0% ----- ±1.0% -----
LINE REGULATION ±0.5% ---- ±0.5% ----- ±0.5% -----
LOAD REGUL .ATION ±0.5% ---- ±0.5% --- ±0.5% ---
SETUP, RISE TIME 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.) 24ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.)  PF>0.92 at full load
EFFICIENCY (Typ.) 80.00% 84.00% 84.00%
AC CURRENT (Typ.) 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT(Typ.) COLD START 23A/115VAC 45A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERL OAD CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power
Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE CH1:15.87 ~ 18.63V CH1:31.74 ~ 37.26V CH1:62.1 ~ 72.9V
Protection type : Shut down o/p voltage, re-power on to recover
BATTERY LOW 10V±0.8V 19.5V(+1.5V,-1V ) 39V±2V
ENVIRONMENT WORKING TEMP. -10 ~ +60 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMS IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020
OTHERS MTBF 1818.3K hrs min. Telcordia SR-332 (Bellcore) ; 229.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 199*110*50mm (L*W*H)
PACKING 0.88Kg; 16pcs/15Kg/0.95CUFT

Meanwell AD-155 Series Features

l  Universal AC input/Full range

l  Protections: Short circuit/Overload/Over voltage

l  Battery low and battery polarity protection

l  Cooling by free air convection

l  100% full load burn-in test

l  Fixed switching frequency at PFC 67KHz, PWM 134KHz

l  2 years warranty

Meanwell AD-155 Series Features

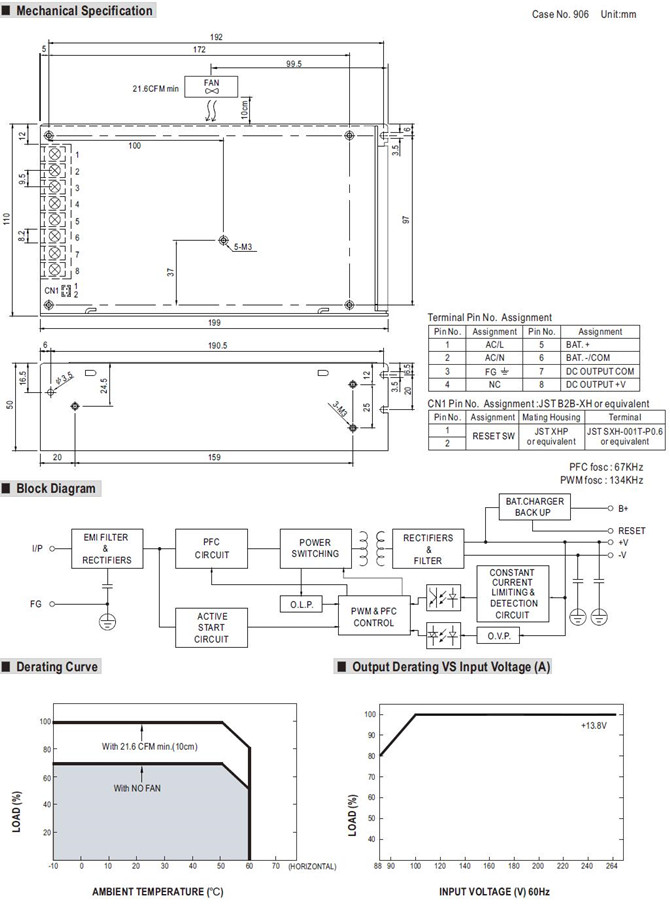

Meanwell AD-155 Series Mechanical Diagram

Meanwell AD-155 Series Mechanical Diagram
