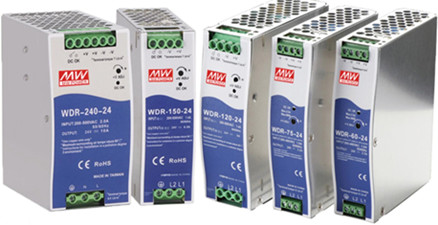

Meanwell 240W Single Output Industrial DIN RAIL Power Supply

- +
Availability:In stock
SKU Meanwell WDR-240
Brand Meanwell
Details

Meanwell WDR-240 Series is 240W Single Output Industrial DIN RAIL Power Supply. The entire series adapt to be installed on TS-35/7.5 or 15 mounting rails. Since the body is 63 mm in width, the design could save a lot of space inside the cabinet. WDR-240 Series adopts single and two phase wide input range 180~550VAC, and conforms to BS EN/EN61000-6-2, the norm the European Union regulates for harmonic current. Apart from them, The product is designed with metal housing that enhances the power dissipation. With the high efficiency up to 91 % and low power dissipation, WDR-240 Series could operate at the ambient temperature between -30℃ and 70℃ under air convection. Moreover, they provide various protections such as Short circuit/Overload/Over voltage/Over temperature. The complete protection functions and relevant certificates for industrial control apparatus (UL508,EAC TP TC 004 approved,IEC62368-1 CB) allow WDR-240 series a very competitive power supply solution for industrial applications.

Meanwell WDR-240 Series Model Specifications

Meanwell WDR-240 Series Model Specifications

Model WDR-240-24 WDR-240-48
Output DC VOLTAGE 24V 48V
RATED CURRENT 10A 5A
CURRENT RANGE 0-10A 0-5A
RATED POWER  240W 240W
RIPPLE & NOISE (max.)  150mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 24-28V 48-55V
VOLTAGE TOLERANCE ±1.0% ±1.0%
LINE REGUL ATION ±0.5% ±0.5%
LOAD REGULATION ±1.0% ±1.0%
SETUP, RISE TIME 800ms, 150ms/400VAC 1500ms, 150ms/230VAC at full load
HOLD UP TIME (Typ.) 18ms / 400VAC 18ms / 230VAC at full load
Input VOLTAGE RANGE 180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR (Typ.) PF>=0.84/400VAC PF>=0.84/230VAC
EFFICIENCY (Typ.)  91%
AC CURRENT (Typ.) 1A/400VAC 2A/230VAC
INRUSH CURRENT (Typ. ) COLD START 50A
LEAKAGE CURRENT <3.5mA / 530VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Constant current limiting, unit will shut down after 3 sec. , auto-recovery after 1 minute if the fault condition is removed
OVER VOLTAGE 29 ~ 33V 56 ~ 65V
Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
OVER TEMPERATURE 90±5 (TSW) detect on heatsink of power switch
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION DC OK REALY CONTACT RATINGS max 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

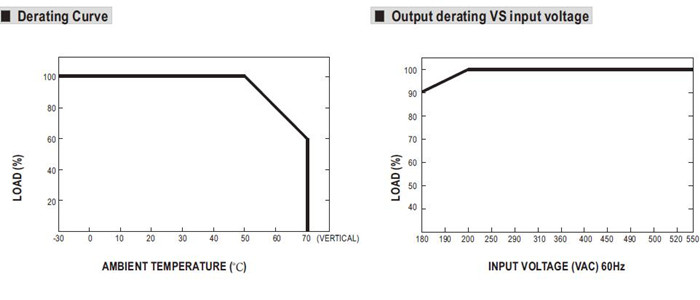

ENVIRONMENT WORKING TEMP -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508,EAC TP TC 004 approved,IEC62368-1 CB approved by SIQ,design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 approved
Others MTBF 141.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 63*125.2*113.5mm (W*H*D)
PACKING 1.06Kg; 12pcs/13.7Kg/1.22CUFT

Meanwell WDR-240 Series Features

l  Single and two phase wide input range 180~550VAC

l  Built-in active PFC circuit compliance to BS EN/EN61000-3-2

l  High efficiency 91 % and low power dissipation

l  Protections: Short circuit/Overload /Over voltage/Over temperature

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  UL 508 (industrial control equipment) approved

l  BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

l  Built-in DC OK relay contact

l  100% full load burn-in test

l  3 years warranty

WDR-240

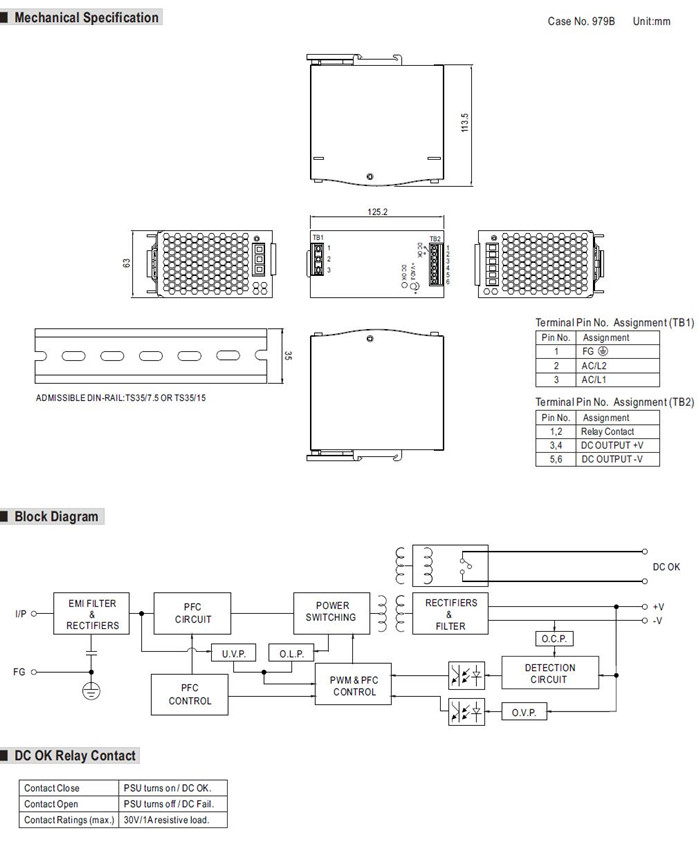

Meanwell WDR-240 Series Mechanical Diagram
