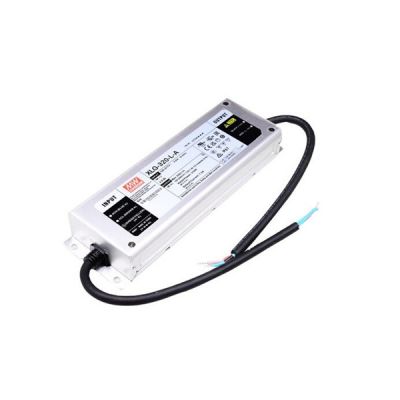

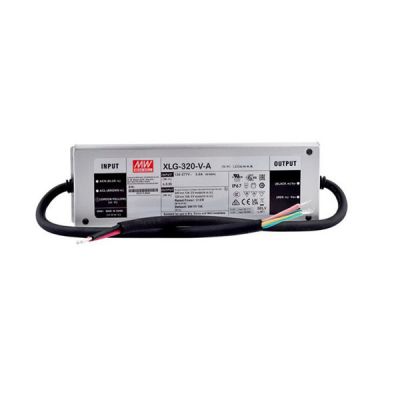

Meanwell XLG-320 Series is 315W LED AC/DC driver highlighting constant power mode. The entire series could operate from 120~305V AC and offered with different rated current ranging between 1050mA and 7420mA. Since the efficiency reaches high up to 94.5% under fanless design, XLG-320 is able to work for -40℃~+85℃ case temperature via free air convection. In addition, the metal housing design and IP67 ingress protection level allow to fit both indoor and outdoor applications. The innovative environment-adaptive capability permits to reliably light on the L EDs for all kinds of application environments in almost any spots that may install L ED luminaires globally. Apart from them, XLG-320 series complies with the latest version of 1EC61347/GB7000.1-2015 and UL 8750international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations and isolation to ensure the safety of both user and luminaire system during installation. Considering its longevity, high efficiency and excellent reliability, Meanwell XLG-320 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-320 Series Encoding
| XLG | Series Name |
| 320 | Rated Wattage |
| L | Rated output current (L/M/H/V Type) |
| A | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) IP67 |
| A | Output constant power adjustable via built-in lo potentiometer IP67 |
| AB | Output constant power adjustable via built-in lo potentiometer +3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) IP67 |
Meanwell XLG-320 Series Model Specifications
| Model | XLG-320-L-□ | XLG-320-M-□ | XLG-320-H-□ | XLG-320-V-□ | |
| OUTPUT | RATED CURRENT (Default) | 1400mA | 2800mA | 5600mA | 13A/24V |
| RATED POWER | 315W | 310.8W | 312W | 24V/312W, 12V/216W | |
| CONSTANT CURRENT REGION | 150-300V | 74-148V | 30-56V | NC | |
| OUTPUT VOLTAGE ADJ. RANGE | NC | NC | NC | 24V OR 12V | |
| FULL POWER CURRENT RANGE | 1050-1400mA | 2100-2800mA | 5570-7420mA | 13-18A (24V/13A,12V/18A) | |
| OPEN CIRCUIT VOLTAGE (max.) | 340V | 180V | 60V | NC | |
| CURRENT ADJ. RANGE | 500-1400mA | 1050-2800mA | 2800-4200mA | NC | |
| CURRENT RIPPLE | 5.0% max. @rated current | NC | |||
| CURRENT TOLERANCE | ±5.0% | NC | |||
| RIPPLE & NOISE (max.) | NC | NC | NC | 240mV p-p | |
| VOLTAGE TOLERANCE | NC | NC | NC | ±3.0% | |
| LINE REGULATION | NC | NC | NC | ±0.5% | |
| LOAD REGULATION | NC | NC | NC | ±2.0% | |
| SET UP TIME | 500ms/230VAC, 1200ms/115VAC | ||||
| RISE TIME,HOLD UP TIME (Typ.) | 160ms,10ms/230VAC/115VAC(only for V-type) | ||||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR (Typ) | PF>=0.98 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section) |
||||
| TOTAL HARMONIC DISTORTION | THD< 10% @ load>=50% at 115VAC/230VAC, THD<15%@Load>75% at 277VAC; Please refer to “TOTAL HARMONIC DISTORTION (THD)” section |
||||
| EFFICIENCY (Typ.) | 94.50% | 93.50% | 92.50% | 93.00% | |
| AC CURRENT | 3A / 120VAC 1.6A / 230VAC 1.3A / 277VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB-Type(Dimming OFF) | ||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 350-380V | 190-220V | 63-78V | 27-34V | |
| Shut down output voltage, re-power on to recovery | |||||
| OVER LOAD | 108~135%(only for V-type) | ||||
| Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER TEMPERATURE | L/M/H-Type: Tcase>85℃±5℃,derate power automatically V-Type: Shut down output voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | |||
| MAX. CASE TEMP | Tcase=+85℃ | ||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14;EAC TP TC 004; IP67; IS15885(Part2/Sec13)(except for blank type), KC61347-1,KC61347-2-13 approved |
|||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55015(CISPR15) ,GB/T17743 | ----- | |||
| Radiated | BS EN/EN55015(CISPR15),GB/T17743 | ----- | |||
| Harmonic Current | BS EN/EN61000-3-2 , GB/T17625.1 | Class C @load>=50% | |||
| Voltage Flicker | BS EN/EN61000-3-3 | …... | |||
| EMC IMMUNITY | BS EN/EN61547 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||
| Radiated | BS EN/EN61000-4-3 | Level 2 | |||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | |||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | |||
| Conducted | BS EN/EN61000-4-6 | Level 2 | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||
| Others | MTBF | 1476.4K hrs min. Telcordia SR-332(Bellcore) ; 168.1 K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 246*77*39.5mm (L*W*H) | ||||
| PACKING | 1.45Kg;9pcs/14Kg/0.76CUFT | ||||
Meanwell XLG-320 Series Features
l Wide input range 100~305VAC (class I )
l Full power output at 75~100% constant power mode operation
l Metal case with IP67, suitable for outdoor application
l Surge protection with 6KV/4KV
l 3 in 1 dimming (Dim-to-off and isolation design)
l Protection Functions: OLP/SCP/OVP/OTP
l Lifetime> 50,000 hours and 5 years warranty
Meanwell XLG-320 Series Applications
l Bay lighting
l Stage lighting
l Floodlight lighting
l Fishing lighting
l Horticulture lighting
l Stadium lighting
l DMX power supply
l Type HL for use in class I, Division 2

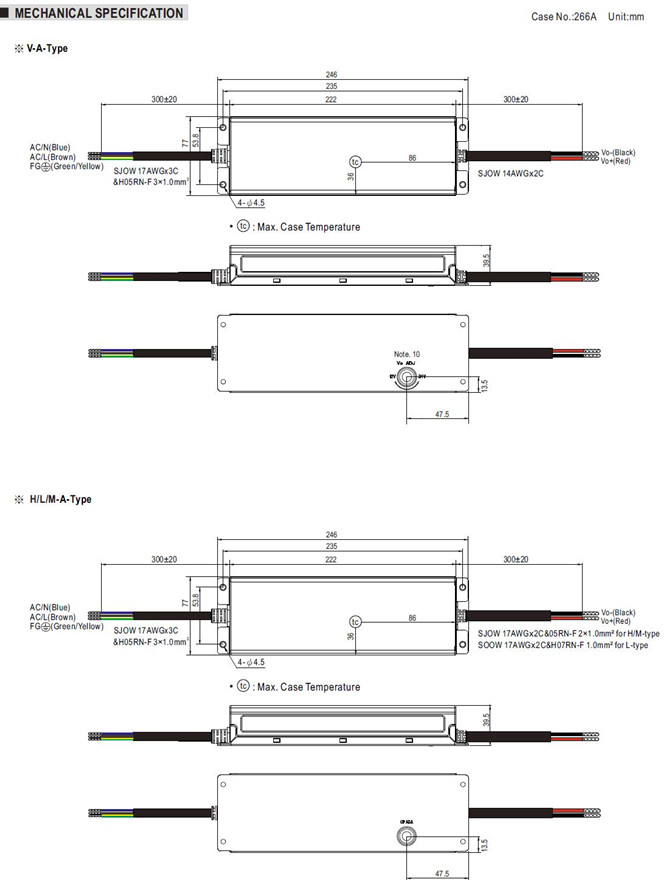

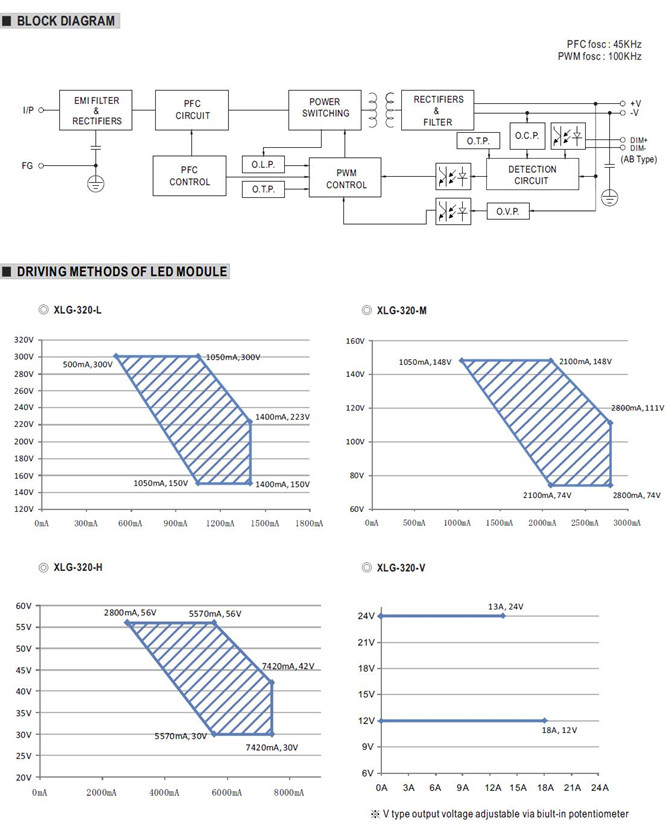

Meanwell XLG-320 Series Mechanical Diagram
