XLG-320-M
45.93
Details

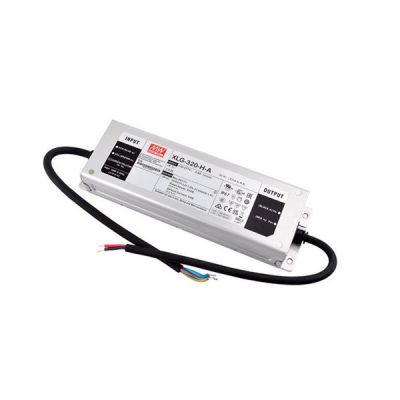

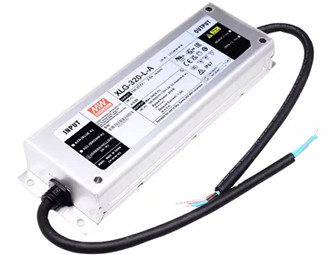

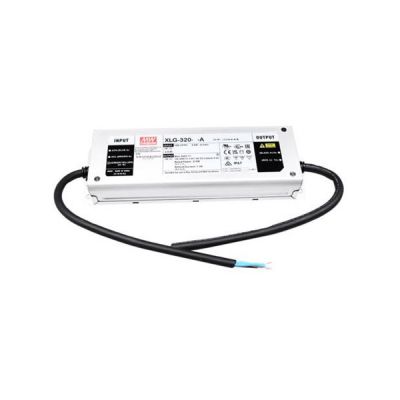

Meanwell XLG-320-M is 315W LED AC/DC driver with 2800mA310.8W74-148V2100-2800mA180V1050-2800mA5.0% max. @rated current±5.0%. The item offers constant power mode from 120~305V AC. At the same time, it is equipped with different rated current ranging between 1050mA and 7420mA. Since the high efficiency reaches up to 94.5% based on fanless design, XLG-320-M is able to operate for -40℃~+85℃ case temperature under free air convection. Moreover, the metal housing design and IP67 ingress protection level permit to satisfy both indoor and outdoor applications. The innovative environment-adaptive capability allows to reliably light on the L EDs for all kinds of application environments in almost any spots that may install LED luminaires globally. In addition, XLG-320-M complies with the latest version of 1EC61347/GB7000.1-2015 and UL 8750international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations and isolation to ensure the safety of both user and luminaire system during installation. Due to its longevity, high efficiency and excellent reliability, Meanwell XLG-320-M is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-320-M Encoding
| XLG | Series Name |
| 320 | Rated Wattage |
| M | Rated output current (L/M/H/V Type) |
| A | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) IP67 |
| A | Output constant power adjustable via built-in lo potentiometer IP67 |
| AB | Output constant power adjustable via built-in lo potentiometer +3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) IP67 |
Meanwell XLG-320-M Specifications
| Model | XLG-320-M-□ | |
| OUTPUT | RATED CURRENT (Default) | 2800mA |
| RATED POWER | 310.8W | |
| CONSTANT CURRENT REGION | 74-148V | |
| OUTPUT VOLTAGE ADJ. RANGE | NC | |
| FULL POWER CURRENT RANGE | 2100-2800mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 180V | |
| CURRENT ADJ. RANGE | 1050-2800mA | |
| CURRENT RIPPLE | 5.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/230VAC, 1200ms/115VAC | |
| RISE TIME,HOLD UP TIME (Typ.) | 160ms,10ms/230VAC/115VAC(only for V-type) | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ) | PF>=0.98 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section) |
|
| TOTAL HARMONIC DISTORTION | THD< 10% @ load>=50% at 115VAC/230VAC, THD<15%@Load>75% at 277VAC; Please refer to “TOTAL HARMONIC DISTORTION (THD)” section |
|
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT | 3A / 120VAC 1.6A / 230VAC 1.3A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB-Type(Dimming OFF) | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 190-220V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER LOAD | 108~135%(only for V-type) | |
| Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | L/M/H-Type: Tcase>85℃±5℃,derate power automatically V-Type: Shut down output voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14;EAC TP TC 004; IP67; IS15885(Part2/Sec13)(except for blank type), KC61347-1,KC61347-2-13 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 1476.4K hrs min. Telcordia SR-332(Bellcore) ; 168.1 K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 246*77*39.5mm (L*W*H) | |
| PACKING | 1.45Kg;9pcs/14Kg/0.76CUFT | |
Meanwell XLG-320-M Features
l Surge protection with 6KV/4KV
l 3 in 1 dimming (Dim-to-off and isolation design)
l Protection Functions: OLP/SCP/OVP/OTP
l Lifetime> 50,000 hours and 5 years warranty
l Wide input range 100~305VAC (class I )
l Metal case with IP67, suitable for outdoor application
l Full power output at 75~100% constant power mode operation
Meanwell XLG-320-M Applications
l Bay lighting
l Stage lighting
l Floodlight lighting
l Fishing lighting
l Horticulture lighting
l Stadium lighting
l DMX power supply
l Type HL for use in class I, Division 2
Meanwell XLG-320-M Mechanical Diagram
