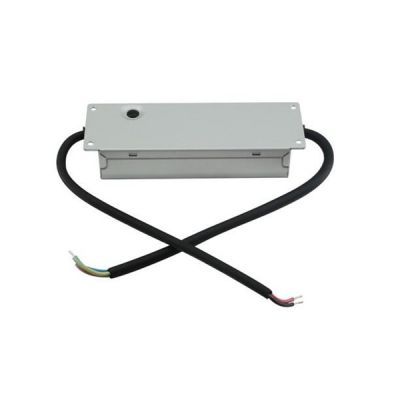

XLG-320-H
45.17

XLG-320-H

$45.17

Meanwell 315W Constant Power Mode LED Driver with 5600mA312W30-56V5570-7420mA60V2800-4200mA5.0% max. @rated current±5.0%

- +
Availability:In stock
SKU Meanwell XLG-320-H
Brand Meanwell
Details

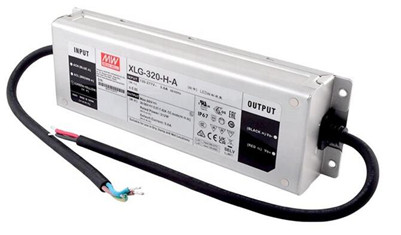

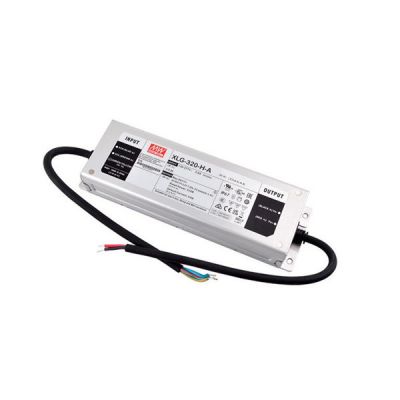

Meanwell XLG-320-H is 315W LED AC/DC driver with 5600mA312W30-56V5570-7420mA60V2800-4200mA5.0% max. @rated current±5.0%. The unit provides constant power mode from 120~305V AC. Meanwhile, it is equipped with different rated current ranging between 1050mA and 7420mA. As the efficiency reaches high up to 94.5% under fanless design, XLG-320-H is able to work for -40℃~+85℃ case temperature via free air convection. Furthermore, the metal housing design and IP67 ingress protection level permit to fit both indoor and outdoor applications. The innovative environment-adaptive capability allows to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires globally. Besides them, XLG-320-H complies with the latest version of 1EC61347/GB7000.1-2015 and UL 8750international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations and isolation to ensure the safety of both user and luminaire system during installation. As a result of its longevity, high efficiency and excellent reliability, Meanwell XLG-320-H is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell XLG-320-H price and specs Constant Power Mode LED Driver XLG-320-L XLG-320-M XLG-320-H XLG-320-V 315W YCICT

Meanwell XLG-320-H Encoding

XLG Series Name
320 Rated  Wattage
H Rated output current (L/M/H/V Type)
A Functions options
Blanks lo and Vo fixed. (For harsh envirenment) IP67
A Output constant power adjustable via built-in lo potentiometer IP67
AB Output constant power adjustable via built-in lo potentiometer +3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) IP67

Meanwell XLG-320-H Specifications

Model XLG-320-H-
OUTPUT RATED CURRENT (Default) 5600mA
RATED POWER 312W
CONSTANT CURRENT REGION 30-56V
OUTPUT VOLTAGE ADJ. RANGE NC
FULL POWER CURRENT RANGE 5570-7420mA
OPEN CIRCUIT VOLTAGE (max.) 60V
CURRENT ADJ. RANGE 2800-4200mA
CURRENT RIPPLE 5.0% max. @rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 500ms/230VAC, 1200ms/115VAC
RISE TIME,HOLD UP TIME (Typ.) 160ms,10ms/230VAC/115VAC(only for V-type)
Input VOLTAGE RANGE 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ) PF>=0.98 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load
(Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION THD< 10% @ load>=50% at 115VAC/230VAC, THD<15%@Load>75% at 277VAC;
Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.) 92.50%
AC CURRENT 3A / 120VAC 1.6A / 230VAC 1.3A / 277VAC
INRUSH CURRENT(Typ.) COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA
MAX. No. of PSUs on 16A CIRCUIT BREAKER 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
STANDBY POWER CONSUMPTION Standby power consumption <0.5W for AB-Type(Dimming OFF)
PROTECTION SHORT CIRCUIT Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 63-78V
Shut down output voltage, re-power on to recovery
OVER LOAD 108~135%(only for V-type)
Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
OVER TEMPERATURE L/M/H-Type: Tcase>85±5,derate power automatically V-Type: Shut down output voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +85(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP Tcase=+85
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;
GB19510.1, GB19510.14;EAC TP TC 004; IP67; IS15885(Part2/Sec13)(except for blank type), KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN61547
Others MTBF 1476.4K hrs min. Telcordia SR-332(Bellcore) ; 168.1 K hrs min. MIL-HDBK-217F (25)
DIMENSION 246*77*39.5mm (L*W*H)
PACKING 1.45Kg;9pcs/14Kg/0.76CUFT

Meanwell XLG-320-H Features

l  Surge protection with 6KV/4KV

l  Protection Functions: OLP/SCP/OVP/OTP

l  Lifetime> 50,000 hours and 5 years warranty

l  Wide input range 100~305VAC (class I )

l  3 in 1 dimming (Dim-to-off and isolation design)

l  Metal case with IP67, suitable for outdoor application

l  Full power output at 75~100% constant power mode operation

Meanwell XLG-320-H price and datasheet Constant Power Mode LED Driver XLG-320-L XLG-320-M XLG-320-H XLG-320-V YCICT

Meanwell XLG-320-H Applications

l  Bay lighting

l  Stage lighting

l  Floodlight lighting

l  Fishing lighting

l  Horticulture lighting

l  Stadium lighting

l  DMX power supply

l  Type HL for use in class I, Division 2

Meanwell XLG-320-H Mechanical Diagram

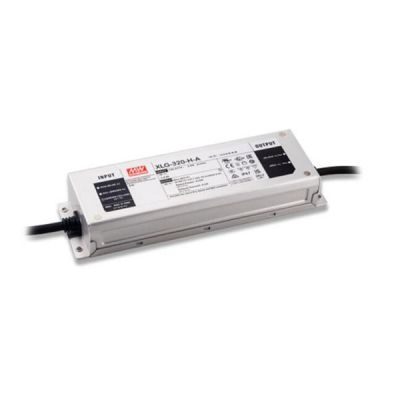

Meanwell XLG-320-H price and specs 315W Constant Power Mode LED Driver XLG-320-L XLG-320-M XLG-320-H XLG-320-V YCICT

Meanwell XLG-320-H price and specs Constant Power Mode ac/dc LED Driver XLG-320-L XLG-320-M XLG-320-H XLG-320-V YCICT
